ASROCK A520M-HDV AM4 Micro ATX Motherboard

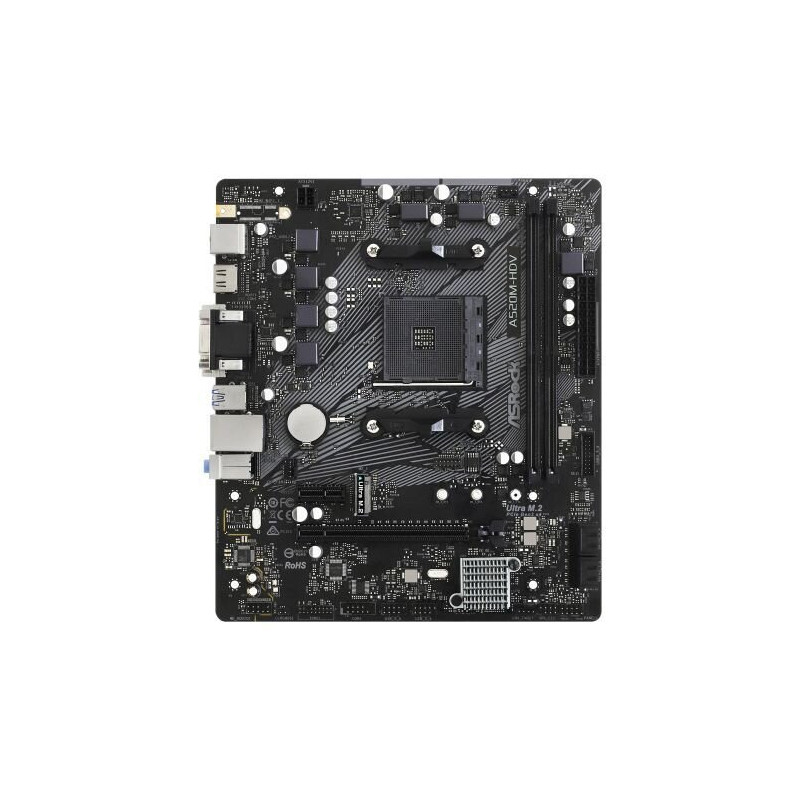

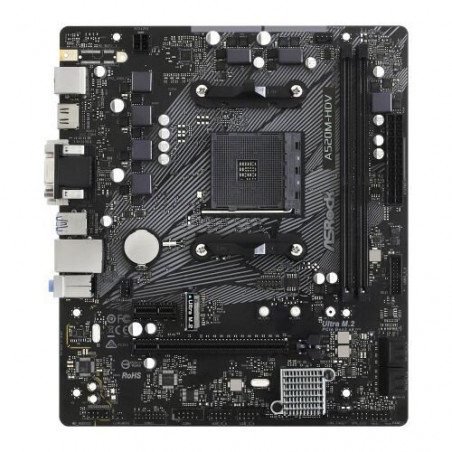

ASRock A520M-HDV Motherboard

The ASRock A520M-HDV is a robust and versatile Micro-ATX motherboard, ideal for budget-conscious builders seeking a reliable platform for their AMD Ryzen system. Whether you're assembling a home office PC, a media server, or a gaming rig on a tighter budget, this motherboard delivers impressive performance and connectivity without breaking the bank. Its feature set caters to tech-savvy users who appreciate value and solid engineering.

Features

• Supports 3rd Gen and later AMD Ryzen AM4 processors (3000, 4000, 5000 series).
• 6-phase power design for stable and reliable power delivery.
• Supports high-speed DDR4 memory with overclocking capabilities up to 4733+ MHz.
• Features a PCIe 3.0 x16 slot and a PCIe 3.0 x1 slot for expansion cards.
• Versatile graphics output with D-Sub, DVI-D, and HDMI ports, including HDMI 4K @ 60Hz support.
• High-definition 7.1 channel audio powered by a Realtek ALC887 audio codec.
• Extensive storage options with 4 x SATA3 ports and 1 x Ultra M.2 slot (Gen3 x4 & SATA3) for blazing-fast NVMe SSDs.
• Multiple USB ports: 6 x USB 3.2 Gen1 and 6 x USB 2.0 ports for diverse peripheral connectivity.
• Realtek Gigabit LAN for fast and reliable network connectivity.
• ASRock Super Alloy technology for enhanced durability and performance.
• Full Spike Protection for safeguarding sensitive components.
• ASRock Live Update & APP Shop for easy BIOS updates and software management.

Specifications

• Brand: ASRock
• MPN: A520M-HDV
• EAN: 4710483932267
• Socket Type: AMD AM4
• Form Factor: Micro-ATX
• Chipset: AMD A520
• Memory: Dual-channel DDR4, 2 DIMM slots, Max 64GB
• Expansion Slots: 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
• Storage: 4 x SATA3 6Gb/s, 1 x Ultra M.2 (Gen3 x4 & SATA3)
• Audio: 7.1 CH HD Audio (Realtek ALC887)
• LAN: Realtek Gigabit LAN
• Rear Panel I/O: D-Sub, DVI-D, HDMI, 2 x USB 2.0, 4 x USB 3.2 Gen1, RJ-45 LAN port, HD Audio jacks
• Internal Connectors: USB headers, fan headers, etc. (Specific details may vary; consult the motherboard manual for complete information)
