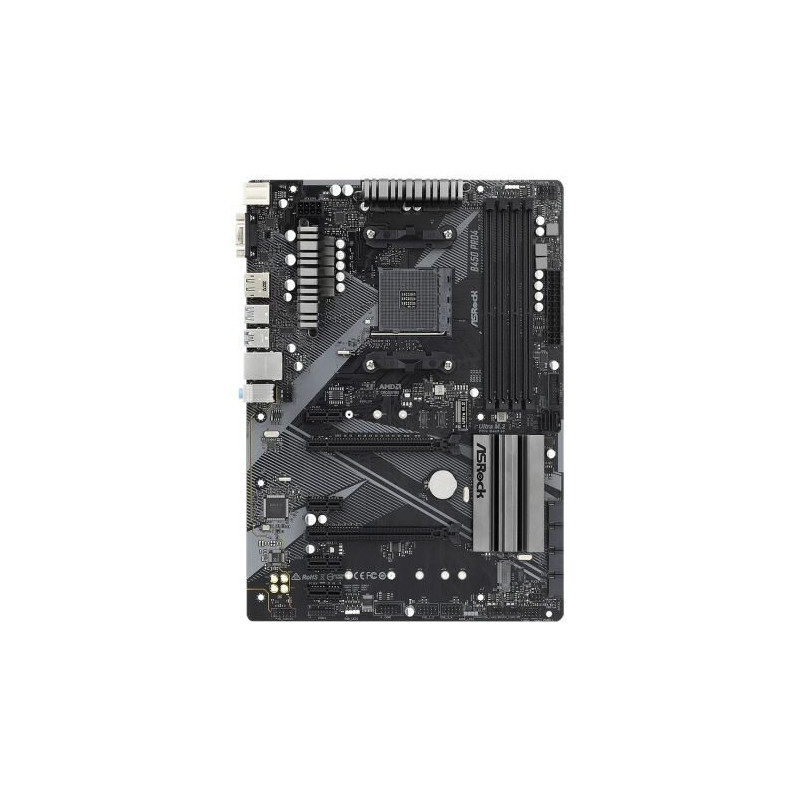

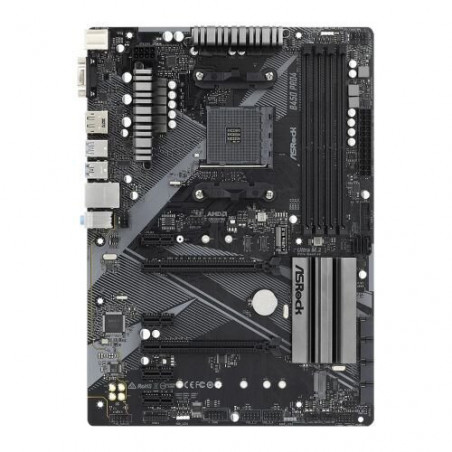

ASROCK B450 PRO4 R2.0 AM4 ATX Motherboard

ASRock B450 PRO4 R2.0 Motherboard

The ASRock B450 PRO4 R2.0 is a robust and versatile ATX motherboard, perfect for building a high-performance PC for gaming, content creation, or general computing. This motherboard offers a compelling blend of features and affordability, making it an ideal choice for tech-savvy users seeking a reliable and expandable platform based on the mature AM4 socket. Benefit from excellent compatibility with a wide range of AMD Ryzen processors and enjoy the performance enhancements provided by its advanced features.

Features

• Supports AMD AM4 Socket Ryzen 2000, 3000, and 5000 Series Desktop Processors
• Supports high-speed DDR4 memory with speeds up to 3200+ MHz (OC)
• Dual PCIe 3.0 x16 slots for multi-GPU configurations (AMD Quad CrossFireX™)
• Comprehensive connectivity: HDMI, DisplayPort, and D-Sub video outputs; Realtek Gigabit LAN; multiple USB 3.2 Gen1 and Gen2 ports (including Type-C)
• Dual M.2 slots for high-speed NVMe SSDs (one PCIe Gen3 x4, one PCIe Gen3 x2 & SATA3)
• 10-phase power design for stable power delivery and enhanced overclocking capabilities
• High-quality components including premium power chokes, Sapphire Black PCB, and solid capacitors for enhanced durability and performance
• Supports AMD StoreMI technology for combining SSD and HDD storage for optimal performance
• 7.1 CH HD Audio (Realtek ALC892/897 Audio Codec)

Specifications

• Brand: ASRock
• MPN: B450 PRO4 R2.0
• EAN: 4717677336252
• Socket Type: AM4
• Form Factor: ATX
• Memory Support: DDR4
• PCIe Slots: 2 x PCIe 3.0 x16, 4 x PCIe 2.0 x1
• M.2 Slots: 2 (1 x PCIe Gen3 x4, 1 x PCIe Gen3 x2 & SATA3)
• SATA Ports: 6 x SATA3
• USB Ports: 2 x USB 3.2 Gen2 (Rear Type A+C), 6 x USB 3.2 Gen1 (2 Front, 4 Rear)
• LAN: Realtek Gigabit LAN
• Audio: 7.1 CH HD Audio (Realtek ALC892/897 Audio Codec)
• Video Outputs: HDMI, DisplayPort, D-Sub
• Power Phase Design: 10-Phase
