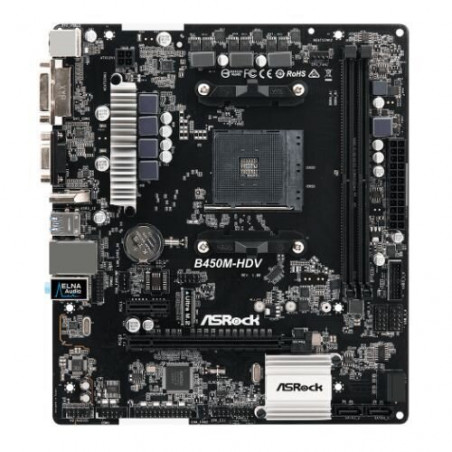

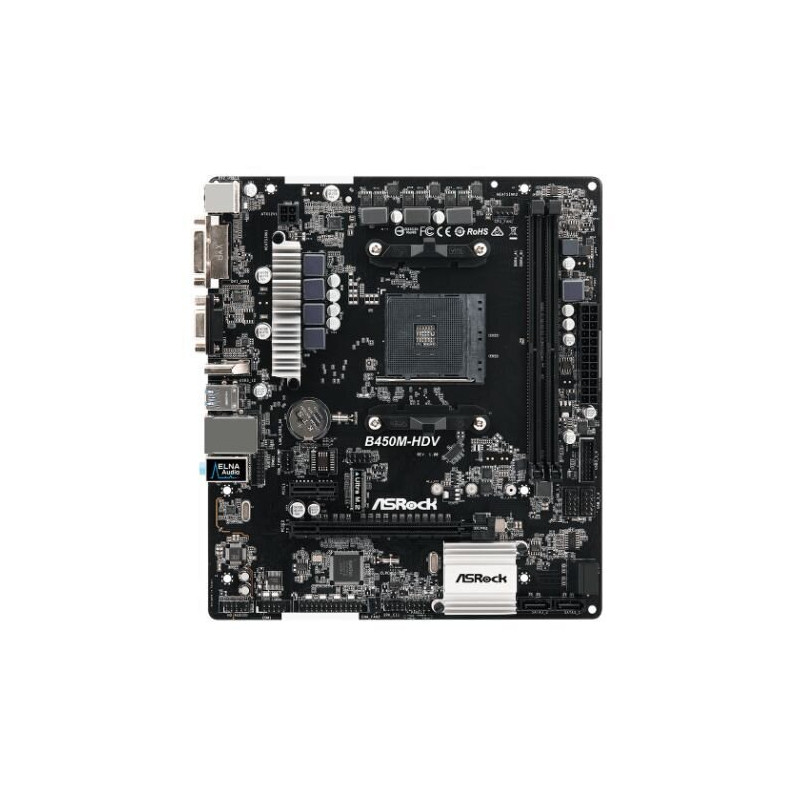

ASROCK B450M-HDV R4.0 AM4 Micro ATX Motherboard

ASRock B450M-HDV R4.0 Motherboard

The ASRock B450M-HDV R4.0 is a robust and versatile Micro-ATX motherboard, perfect for budget-conscious builders seeking a reliable platform for AMD Ryzen processors. Whether you're assembling a gaming rig, a content creation workstation, or a general-purpose PC, this motherboard delivers excellent performance and features without breaking the bank. Its compact form factor makes it ideal for smaller builds, while its comprehensive connectivity ensures you have all the ports you need.

Features

• AMD AM4 Socket: Supports a wide range of Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series processors.
• Dual Channel DDR4 Support: Supports high-speed DDR4 memory, boosting system responsiveness.
• High-Speed Storage: Features an Ultra M.2 slot supporting PCIe Gen3 x4 for blazing-fast NVMe SSD speeds, alongside four SATA3 ports for additional storage options.
• Versatile Connectivity: Offers multiple display outputs (HDMI, DVI-D, D-Sub) for triple monitor support, along with six USB 3.1 Gen1 ports and Realtek Gigabit LAN.
• Enhanced Audio: Equipped with Realtek ALC887 audio codec and ELNA audio capacitors for superior sound quality.
• Durable Construction: Built with ASRock's Super Alloy components and High Density Glass Fabric PCB for enhanced stability and longevity.
• AMD StoreMI Technology Ready: Optimise your storage configuration by combining the speed of an SSD with the capacity of a hard drive.

Specifications

• Chipset: AMD Promontory B450
• CPU Socket: AMD AM4
• Memory: 2x DDR4 DIMM Slots, Supports DDR4 3200+(OC)
• Expansion Slots: 1x PCIe 3.0 x16, 1x PCIe 2.0 x1
• Graphics Output: HDMI, DVI-D, D-Sub (Triple Monitor Support)
• Audio: 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps
• Storage: 4x SATA3, 1x Ultra M.2 (PCIe Gen3 x4 & SATA3)
• USB: 6x USB 3.1 Gen1 (2 Front, 4 Rear)
• LAN: Realtek Gigabit LAN
• Form Factor: Micro-ATX
