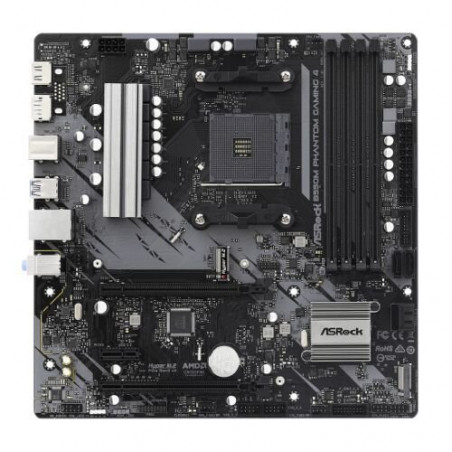

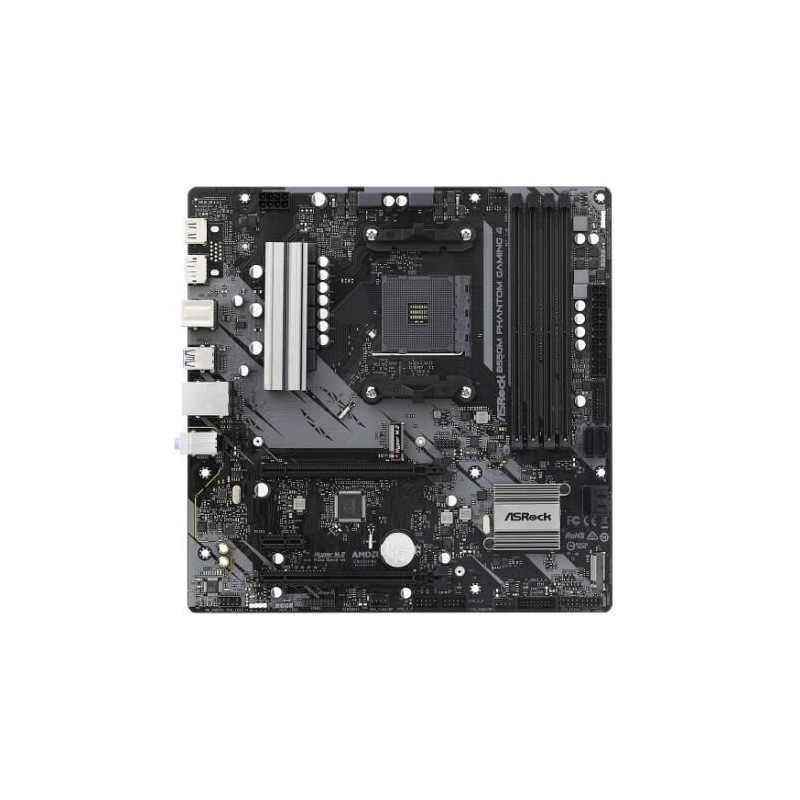

ASROCK B550M PHANTOM GAMING 4 AM4 Micro ATX Motherboard

ASRock B550M PHANTOM GAMING 4 Motherboard

Unleash the full potential of your AMD Ryzen processor with the ASRock B550M PHANTOM GAMING 4 motherboard. Designed for discerning gamers and PC enthusiasts, this Micro-ATX powerhouse delivers exceptional performance, robust features, and stunning aesthetics. Benefit from PCIe 4.0 support, lightning-fast storage options, and a comprehensive suite of connectivity, all within a compact and efficient form factor. Whether you're building a high-performance gaming rig or a content creation workstation, the B550M PHANTOM GAMING 4 provides the solid foundation you need.

Features

• Supports 3rd Gen and beyond AMD Ryzen™ AM4 Processors (3000, 4000, and 5000 series)
• 8-Power Phase Design for stable and efficient power delivery
• Supports DDR4 memory with speeds up to 4733+ MHz (OC)
• High-speed PCIe 4.0 x16 slot and additional PCIe 3.0 slots for expansion cards
• Dual M.2 slots: one Hyper M.2 (PCIe Gen4 x4) and one M.2 (PCIe Gen3 x2 & SATA3) for blazing-fast storage
• AMD CrossFireX™ support for multi-GPU configurations
• Comprehensive connectivity: HDMI and DisplayPort video outputs, Realtek Gigabit LAN, multiple USB 3.2 Gen1 and USB 2.0 ports
• High-definition 7.1 channel audio with Realtek ALC887/897 audio codec
• Polychrome RGB lighting for customizable system aesthetics
• ASRock's premium 50A power chokes and 2oz copper PCB for enhanced durability and performance
• Supports AMD StoreMI technology for optimized storage performance

Specifications

• Brand: ASRock
• MPN: B550M PHANTOM GAMING 4
• EAN: 4710483932755
• Socket Type: AM4
• Chipset: AMD B550
• Form Factor: Micro-ATX
• Memory: 4x DDR4 DIMM Slots, Dual Channel
• PCIe Slots: 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
• M.2 Slots: 1 x Hyper M.2 (PCIe Gen4 x4), 1 x M.2 (PCIe Gen3 x2 & SATA3)
• SATA Ports: 4 x SATA3
• USB Ports: 8 x USB 3.2 Gen1 (4 Front, 4 Rear), 6 x USB 2.0 (4 Front, 2 Rear)
• LAN: Realtek Gigabit LAN
• Audio: 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
• Video Outputs: HDMI, DisplayPort
• Other Features: Polychrome RGB, AMD StoreMI support, ASRock Full Spike Protection
