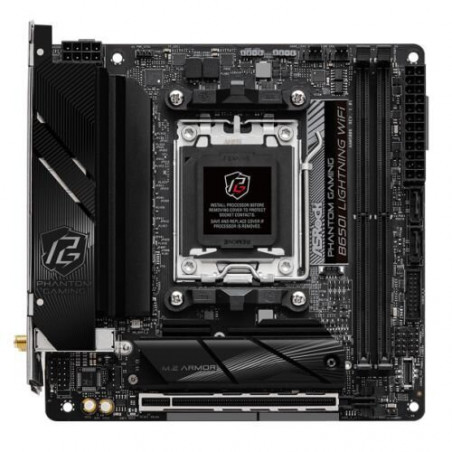

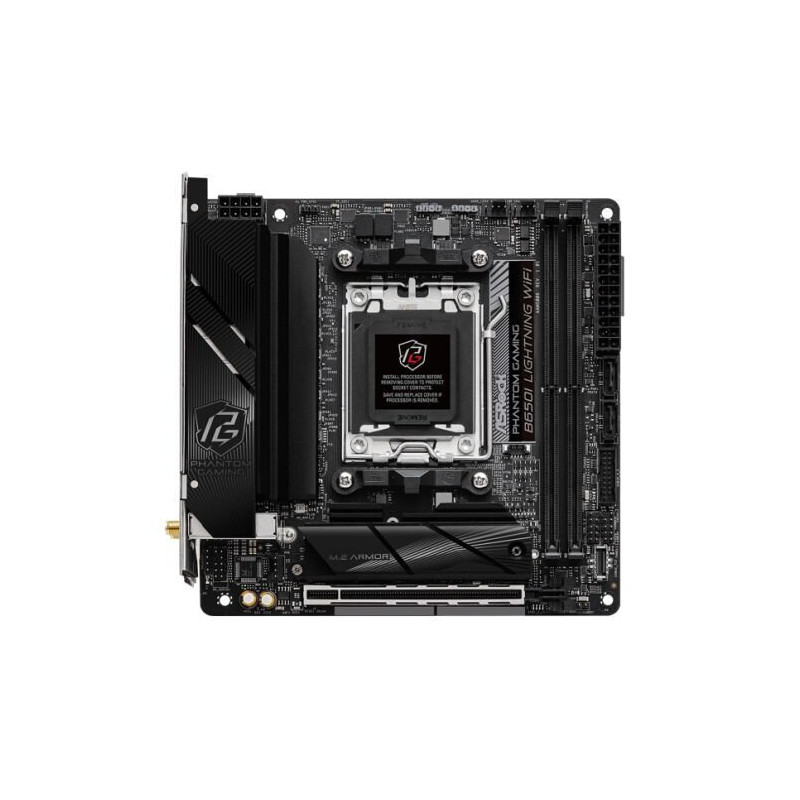

ASROCK B650I LIGHTNING WIFI AM5 Mini-ITX Motherboard

ASRock B650I LIGHTNING WIFI

Unleash the power of AMD's AM5 platform with the ASRock B650I LIGHTNING WIFI, a compact Mini-ITX motherboard engineered for demanding users. Whether you're a PC enthusiast building a high-performance gaming rig, a content creator demanding robust connectivity, or a professional seeking a reliable and feature-rich platform, this motherboard delivers exceptional performance and versatility in a space-saving form factor.

Features

• Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
• Robust 8+2+1 Power Phase Design with Dr.MOS for superior power delivery and thermal performance.
• Dual-channel DDR5 memory support with speeds up to 7200+ MHz (OC) and XMP/EXPO profile support.
• High-speed PCIe 4.0 x16 slot with reinforced steel for enhanced stability and graphics card support.
• Blazing fast storage with one PCIe Gen5 x4 M.2 slot and one PCIe Gen4 x4 M.2 slot, both equipped with a multi-layer heatsink.
• Comprehensive connectivity: Phantom Gaming 2.5G LAN, Wi-Fi 6E, Bluetooth 5.2, multiple USB 3.2 Gen2 and Gen1 ports (including Type-C), and HDMI 2.1 output.
• Immersive audio experience with Realtek ALC897 7.1 CH HD Audio Codec and Nahimic Audio technology.
• Convenient features: ASRock Auto Driver Installer and BIOS Flashback for effortless setup and BIOS updates.
• Polychrome RGB support for customizable lighting effects.

Specifications

• Chipset: AMD B650
• CPU Socket: AMD Socket AM5
• Memory: 2x DDR5 DIMM Slots, Dual Channel, up to 128GB, Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)
• PCIe Slots: 1 x PCIe 4.0 x16
• M.2 Slots: 1 x PCIe Gen5 x4 M.2 (Blazing M.2), 1 x PCIe Gen4 x4 M.2 (Hyper M.2)
• SATA Ports: 2 x SATA3 6.0 Gb/s
• USB Ports: 1 x USB 3.2 Gen2 Type-C (Rear), 3 x USB 3.2 Gen2 Type-A (Rear), 1 x USB 3.2 Gen1 Type-C (Front), 2 x USB 3.2 Gen1 Type-A (Front), 6 x USB 2.0 (4 Rear, 2 Front)
• LAN: Phantom Gaming 2.5G LAN
• Wireless: 802.11ax Wi-Fi 6E + Bluetooth 5.2
• Audio: Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
• Video Output: 1 x HDMI 2.1
• Form Factor: Mini-ITX
• Other Features: Dr.MOS, 8-Layer PCB, Reinforced Steel PCIe Slot, Blazing OC Tuner, AMD PBO Technology, Polychrome RGB, ASRock Auto Driver Installer, BIOS Flashback, Flexible Integrated I/O Shield
