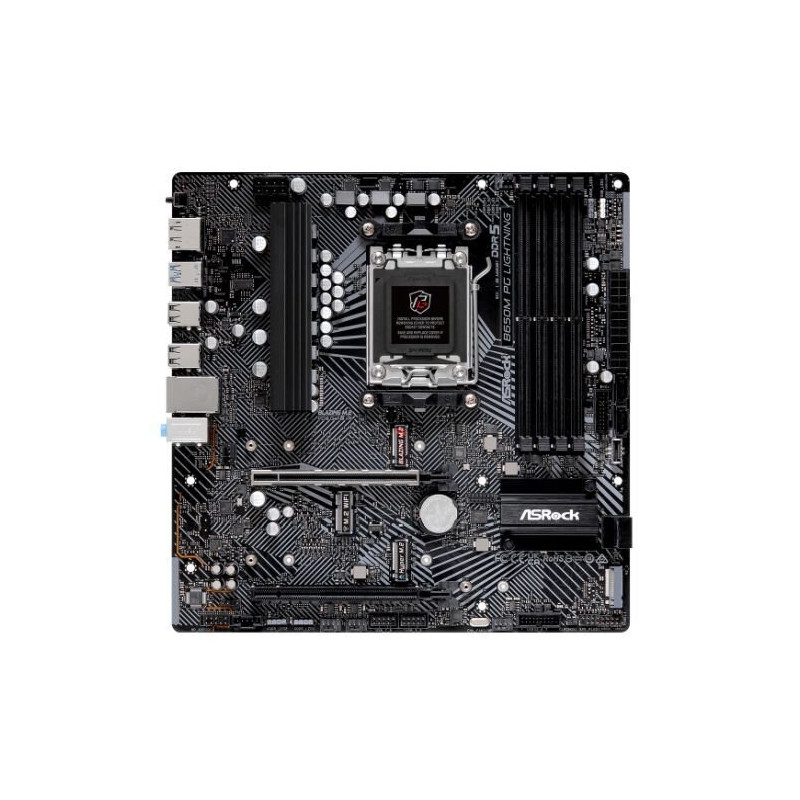

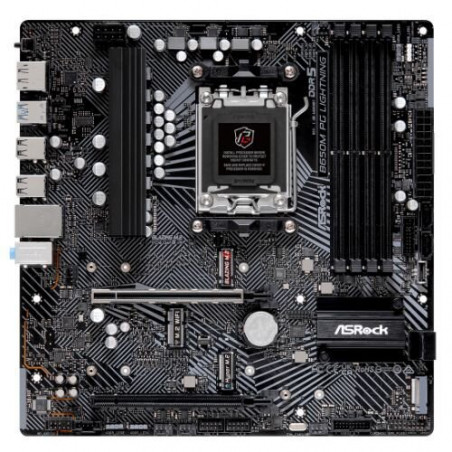

ASROCK B650M PG LIGHTNING AM5 Micro-ATX Motherboard

ASROCK B650M PG LIGHTNING

Unleash the full potential of your AMD Ryzen 7000 and 8000 series processor with the ASROCK B650M PG LIGHTNING Micro-ATX motherboard. Designed for discerning PC builders, gamers, and content creators demanding high performance and robust features, this motherboard delivers exceptional speed, stability, and expandability in a compact form factor. Benefit from cutting-edge connectivity, advanced overclocking capabilities, and premium audio for an unparalleled computing experience.

Features

• Supports AMD Socket AM5 Ryzen 7000 and 8000 Series Processors
• Robust 6+2+1 Power Phase Design with Dr.MOS for superior power delivery and thermal performance
• Quad-channel DDR5 memory support with speeds up to 7200+ MHz (OC) for blazing-fast system responsiveness
• High-speed PCIe 4.0 x16 and PCIe 3.0 x16 slots for graphics cards and expansion cards
• Triple M.2 slots (one PCIe Gen5 x4, one PCIe Gen4 x4, and one PCIe Gen4 x2) for ultrafast NVMe SSD storage
• Comprehensive connectivity: 2.5G LAN, HDMI 2.1, DisplayPort 1.4, multiple USB 3.2 Gen1 and Gen2 ports (including Type-C)
• Immersive audio experience with Realtek ALC897 7.1 CH HD Audio Codec and Nahimic Audio technology
• Supports ASRock Auto Driver Installer and BIOS Flashback for easy setup and updates
• Reinforced PCIe 4.0 steel slot for enhanced stability and durability
• M.2 Key E slot for optional Wi-Fi/Bluetooth connectivity

Specifications

• Chipset: AMD B650
• CPU Socket: AMD AM5
• Memory: 4 x DDR5 DIMM Slots, Dual Channel, up to 256GB, Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC), XMP and EXPO support
• PCIe Slots: 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 1 x M.2 Key E (for WiFi)
• M.2 Slots: 1 x Blazing M.2 (PCIe Gen5 x4), 1 x Hyper M.2 (PCIe Gen4 x4), 1 x M.2 (PCIe Gen4 x2)
• SATA: 4 x SATA3 6.0 Gb/s Connectors
• LAN: Phantom Gaming 2.5G LAN
• Audio: Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
• USB: 1 x USB 3.2 Gen2 Type-A + C (Rear), 1 x USB 3.2 Gen1 Type-C (Front), 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
• Video Output: HDMI 2.1, DisplayPort 1.4
• Form Factor: Micro-ATX
• BIOS: 256Mb AMI UEFI Legal BIOS
