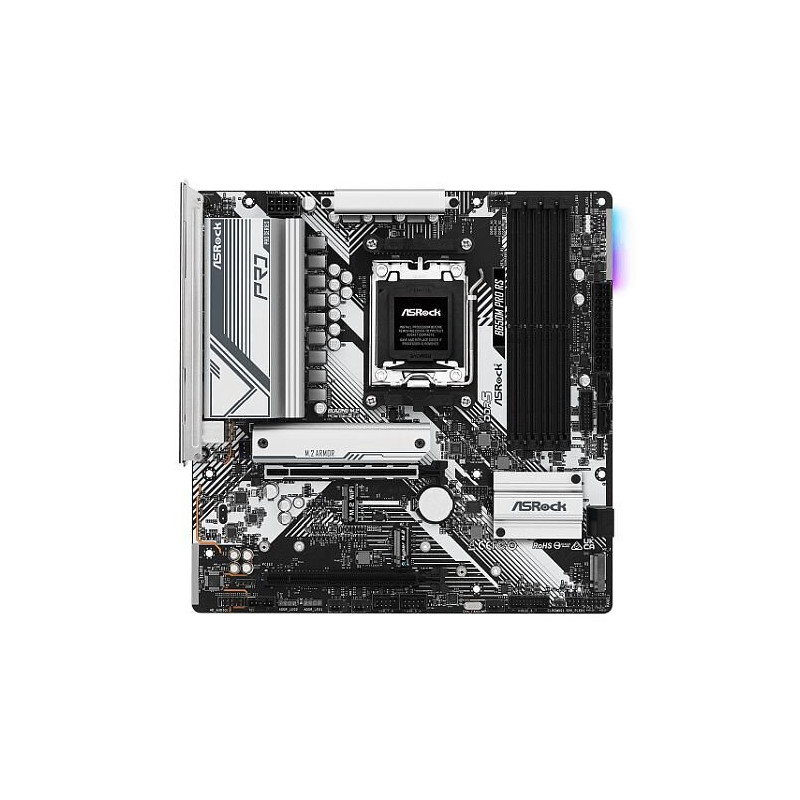

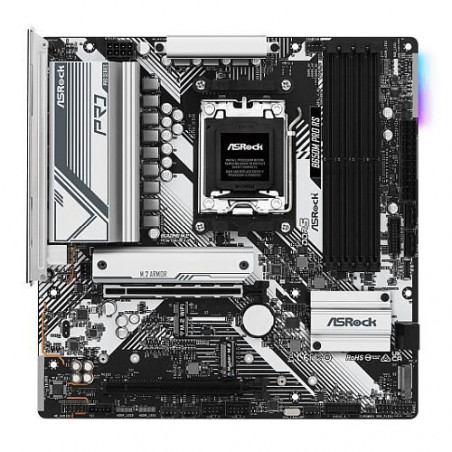

ASROCK B650M PRO RS AM5 Micro ATX Motherboard

ASRock B650M PRO RS Motherboard

The ASRock B650M PRO RS is a micro-ATX motherboard designed for discerning PC builders seeking a powerful and feature-rich platform for their next-generation AMD Ryzen™ system. Whether you're a gamer chasing high frame rates, a content creator demanding robust performance, or a professional needing reliable stability, this motherboard delivers the performance and connectivity you need. Its compact form factor makes it ideal for smaller builds, without compromising on essential features.

Features

• Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
• Robust 8+2+1 Power Phase Design with Dr.MOS for superior power delivery and overclocking capabilities.
• Quad-channel DDR5 memory support with speeds exceeding 6000MHz (OC) for blazing-fast performance.
• High-speed storage options including a PCIe Gen5 x4 M.2 slot and additional PCIe Gen4 M.2 slots.
• Advanced cooling solutions including aluminum heatsinks and ASRock's Fan-Tastic Tuning utility.
• Enhanced audio with Realtek ALC897 7.1 CH HD Audio Codec and Nahimic Audio technology.
• High-speed networking with Dragon 2.5G LAN for faster file transfers and smoother online gaming.
• Convenient features like BIOS Flashback and ASRock's Auto Driver Installer.
• Polychrome RGB lighting for customizable aesthetics.
• Pre-installed I/O shield for easy installation.

Specifications

• Chipset: AMD B650
• Socket: AMD AM5
• Memory: 4x DDR5 DIMM slots, Dual Channel, up to 7200+ MHz (OC), Supports AMD EXPO™ and Intel® XMP
• PCIe Slots: 1x PCIe 4.0 x16, 1x PCIe 3.0 x16
• M.2 Slots: 1x PCIe Gen5 x4, 1x PCIe Gen4 x4, 1x PCIe Gen4 x2, 1x Key E for WiFi
• SATA: 4x SATA3 6.0 Gb/s
• USB: 1x USB 3.2 Gen2 Type-A + C (Rear), 1x USB 3.2 Gen1 Type-C (Front), 6x USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
• LAN: Dragon 2.5G LAN
• Audio: Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
• Graphics Output: HDMI, DisplayPort
• Form Factor: Micro-ATX
• Other Features: BIOS Flashback, ASRock Auto Driver Installer, Polychrome RGB, Aluminum Heatsinks, 6-Layer PCB, 2oz Copper PCB
