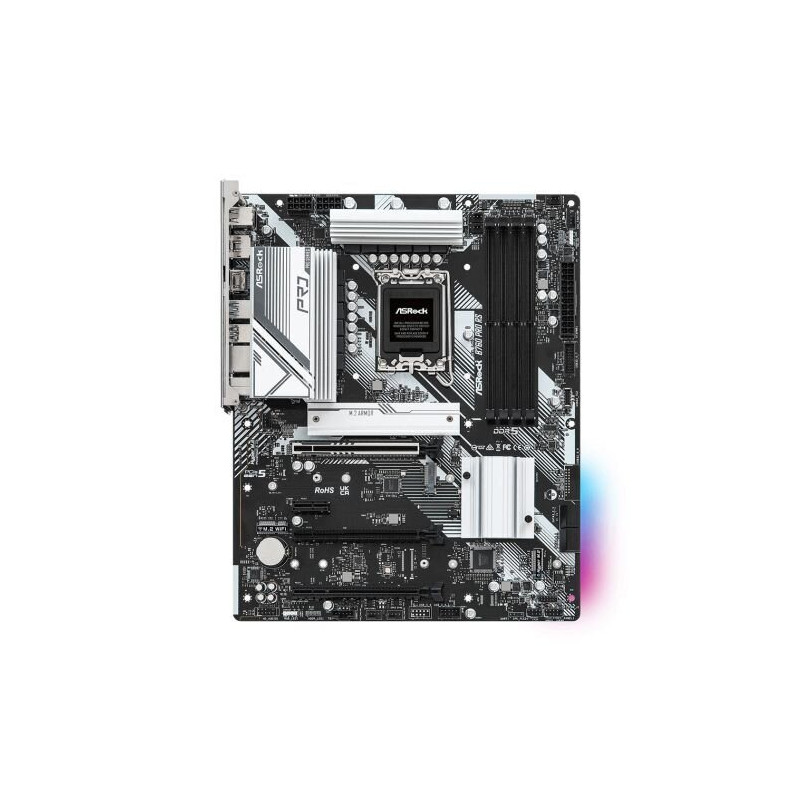

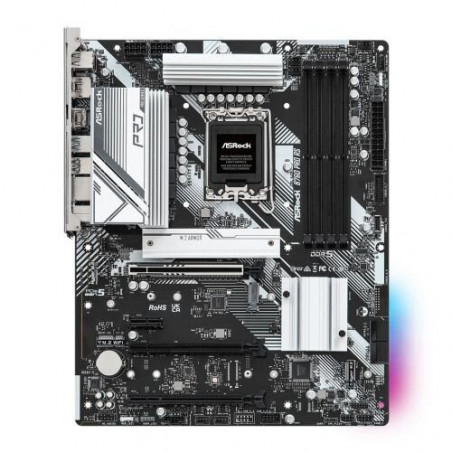

ASROCK B760 PRO RS Motherboard

ASRock B760 PRO RS Motherboard

The ASRock B760 PRO RS motherboard delivers a compelling blend of performance and value for discerning PC builders. This ATX motherboard is ideal for gamers, content creators, and enthusiasts seeking a robust platform for 12th and 13th Gen Intel Core processors without breaking the bank. Benefit from high-speed connectivity, ample expansion options, and reliable power delivery, all within a meticulously engineered design.

Features

• Supports 12th and 13th Gen Intel Core Processors (LGA 1700)
• Robust 10+1+1 Power Phase Design with Dr.MOS for superior VCore and GPU power delivery
• High-speed DDR5 memory support (up to 7200MHz OC)
• Next-generation PCIe 5.0 x16 slot for future-proofing your system
• Multiple M.2 slots (including PCIe Gen4 x4) for fast NVMe SSDs
• High-bandwidth 2.5G LAN for enhanced network connectivity
• Comprehensive I/O including multiple USB 3.2 Gen2 ports (Type-A and Type-C), HDMI, DisplayPort, and eDP
• High-definition audio with Realtek ALC897 codec and Nahimic Audio enhancement
• ASRock Auto Driver Installer for simplified setup
• Pre-installed I/O shield for faster assembly

Specifications

• Chipset: Intel B760
• Socket: LGA 1700
• Form Factor: ATX
• Memory: 4x DDR5 DIMM slots
• PCIe Slots: 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
• M.2 Slots: 2 x Hyper M.2 (PCIe Gen4 x4), 1 x M.2 (PCIe Gen4 x2), 1 x M.2 Key E for WiFi
• SATA: 4 x SATA3 connectors
• LAN: Dragon 2.5G LAN
• Audio: Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
• USB: 1 x USB 3.2 Gen2 Type-C (Rear), 1 x USB 3.2 Gen2 Type-C (Front), 1 x USB 3.2 Gen2 Type-A (Rear), 6 x USB 3.2 Gen1 (4 Rear, 2 Front), 4 x USB 2.0 (2 Rear, 2 Front)
• Video Output: HDMI, DisplayPort, eDP
