ASROCK B760 PRO RS/D4 ATX Motherboard with DDR4, PCIe 4.0, 2.5GbE LAN, M.2

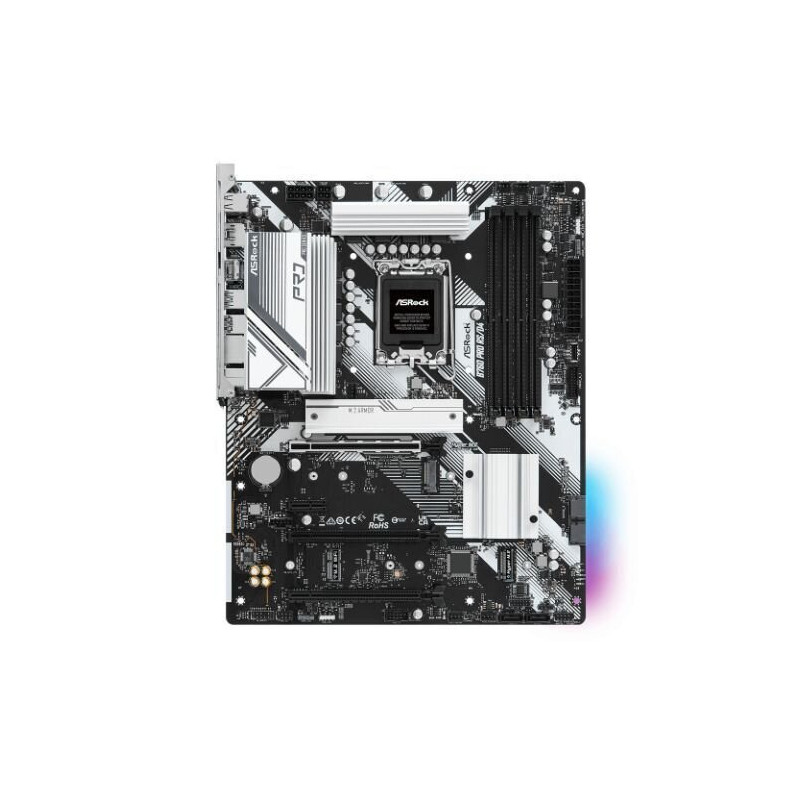

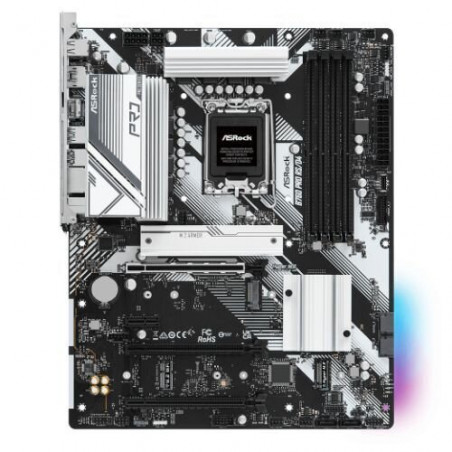

ASRock B760 PRO RS/D4 Motherboard

The ASRock B760 PRO RS/D4 motherboard delivers robust performance and extensive connectivity for discerning PC builders. Whether you're a gamer seeking high frame rates, a content creator demanding fast storage, or a professional needing reliable stability, this ATX motherboard provides the foundation for a powerful and versatile system. Its feature-rich design and high-quality components ensure a premium computing experience.

Features

• Supports 13th and 12th Gen Intel Core Processors (LGA 1700)
• High-performance 7+1+1 Power Phase Design with Dr.MOS for stable power delivery
• Supports DDR4 memory up to 5333MHz (OC)
• Multiple high-speed M.2 slots (PCIe Gen4 x4 and x2) for lightning-fast storage
• Dual high-bandwidth PCIe 4.0 x16 slots
• Dragon 2.5G LAN for significantly faster network speeds
• Immersive audio experience with Realtek ALC897 7.1 CH HD Audio Codec and Nahimic Audio
• Extensive connectivity options including multiple USB 3.2 Gen1 and Gen2 ports (including Type-C), HDMI 2.1, and DisplayPort 1.4
• Polychrome RGB lighting for customizable aesthetics
• Pre-installed I/O shield for easy installation
• ASRock Auto Driver Installer for simplified setup

Specifications

• Chipset: Intel B760
• CPU Socket: LGA 1700
• Memory: 4x DDR4 DIMM Slots, Dual Channel, up to 128GB, Supports XMP 2.0
• M.2 Slots: 3x M.2 (1x Key E for WiFi, 2x Key M - PCIe Gen4 x4 and x2)
• PCIe Slots: 2x PCIe 4.0 x16, 1x PCIe 3.0 x16, 1x PCIe 3.0 x1
• LAN: Dragon 2.5G LAN (RTL8125BG)
• Audio: Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
• USB: 1x USB 3.2 Gen2 Type-C (Front), 1x USB 3.2 Gen1 Type-C (Rear), 7x USB 3.2 Gen1 Type-A, 4x USB 2.0
• Video Output: 1x HDMI 2.1, 1x DisplayPort 1.4
• SATA: 4x SATA3 6.0 Gb/s
• Form Factor: ATX
• Other Features: Pre-installed I/O Shield, ASRock Auto Driver Installer, Polychrome RGB
