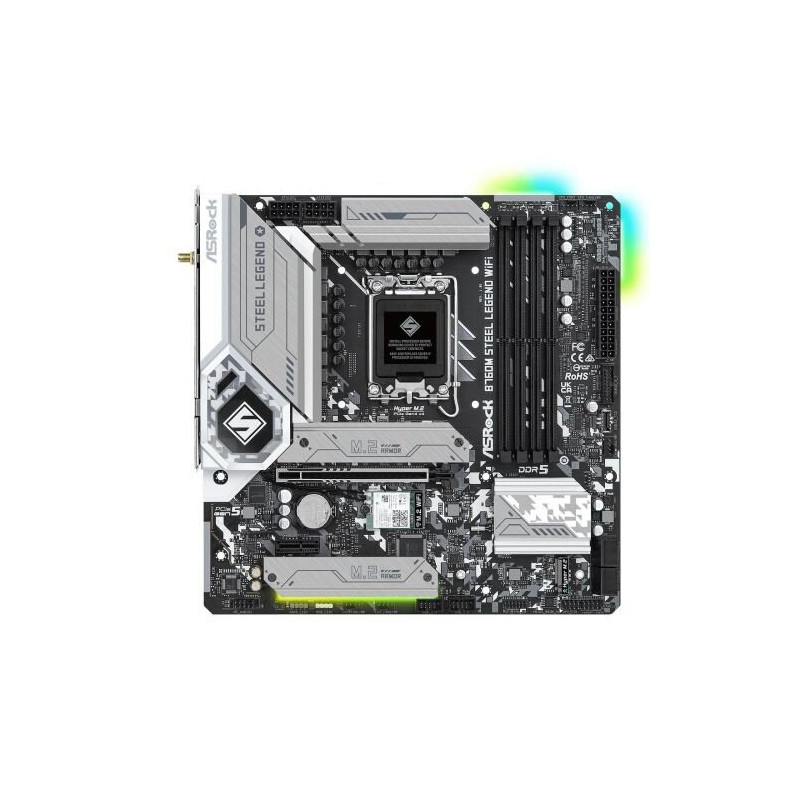

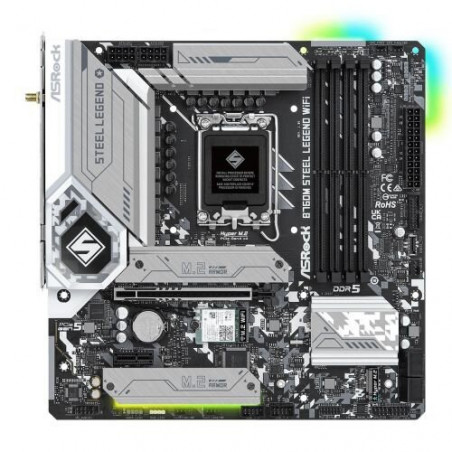

ASROCK B760M Steel Legend WiFi Micro-ATX Motherboard

ASROCK B760M STEEL LEGEND WIFI Motherboard

The ASROCK B760M STEEL LEGEND WIFI motherboard delivers uncompromising performance and robust features for discerning PC builders and enthusiasts. Whether you're crafting a high-performance gaming rig, a content creation powerhouse, or a reliable workstation, this Micro-ATX board provides the foundation for a system that excels in demanding tasks. Benefit from its exceptional connectivity options, future-proof PCIe 5.0 support, and a host of intelligent features designed for stability and ease of use.

Features

• Supports 13th and 12th Gen Intel Core Processors (LGA 1700)
• Robust 12+1+1 Power Phase Design with Dr.MOS for superior power delivery and stability.
• High-speed DDR5 memory support (up to 7200MHz OC) with XMP and EXPO profiles for effortless overclocking.
• PCIe 5.0 x16 slot for next-generation graphics cards and PCIe 4.0 x1 slot for expansion.
• Triple Hyper M.2 slots (PCIe Gen4 x4) for blazing-fast NVMe SSD storage.
• 2.5 Gigabit Ethernet (2.5G LAN) and Wi-Fi 6E for ultra-fast and reliable networking.
• Comprehensive connectivity: Multiple USB 3.2 Gen2 (Type-A and Type-C) ports, USB 3.2 Gen1, and USB 2.0 ports.
• High-definition audio with Realtek ALC897 7.1 CH HD Audio Codec and Nahimic Audio enhancement.
• Integrated eDP signal connector for compatibility with ASRock's 13.3" Side Panel Kit.
• Polychrome RGB lighting for customizable aesthetics.
• ASRock Auto Driver Installer for simplified setup.

Specifications

• Chipset: Intel B760
• CPU Socket: LGA 1700
• Memory: 4x DDR5 DIMM Slots, Dual Channel, up to 192GB
• PCIe Slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x1
• M.2 Slots: 3x Hyper M.2 (PCIe Gen4 x4)
• SATA Ports: 4x SATA3 6.0 Gb/s
• LAN: Dragon 2.5G LAN, 802.11ax (Wi-Fi 6E) + Bluetooth 5.3
• USB Ports: 2x USB 3.2 Gen2 Type-C (1 Rear, 1 Front), 1x USB 3.2 Gen2 Type-A (Rear), 6x USB 3.2 Gen1 (4 Rear, 2 Front), 6x USB 2.0 (2 Rear, 4 Front)
• Audio: Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
• Video Outputs: HDMI, DisplayPort, eDP
• Form Factor: Micro-ATX
• Other Features: 6-Layer PCB, 2oz Copper PCB, ASRock Auto Driver Installer, Polychrome RGB
