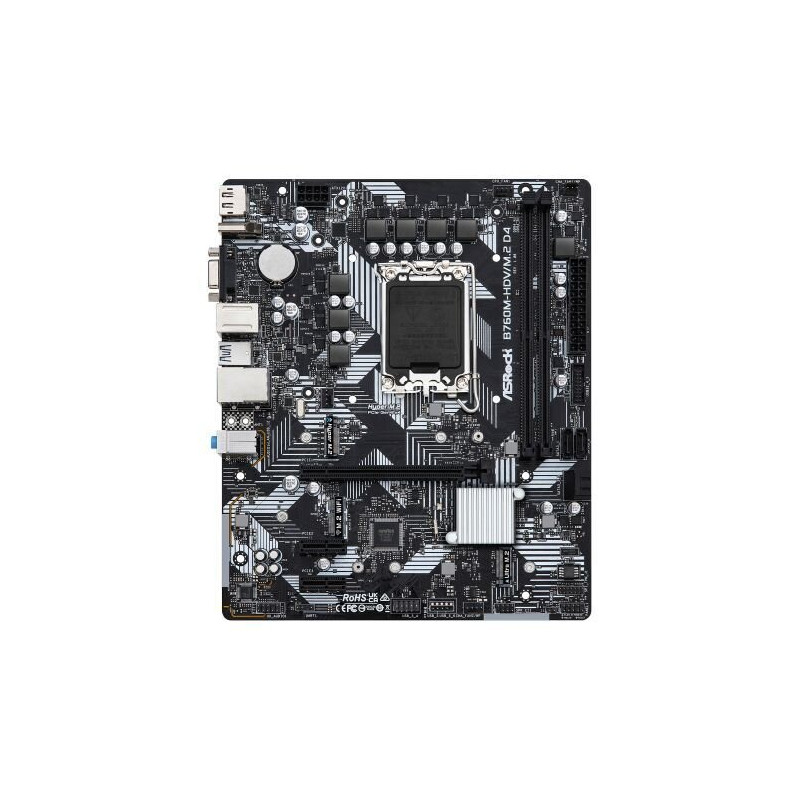

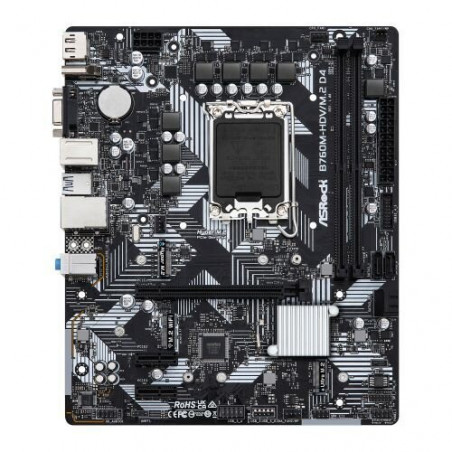

ASROCK B760M-HDV/M.2 D4 Micro ATX Motherboard

ASROCK B760M-HDV/M.2 D4 Motherboard

The ASROCK B760M-HDV/M.2 D4 motherboard is a powerful and versatile Micro ATX solution ideal for building a high-performance PC. Whether you're a gamer seeking smooth frame rates, a content creator demanding fast storage, or a professional needing reliable stability, this motherboard delivers exceptional value and robust features. Its compatibility with 12th and 13th Gen Intel Core processors, coupled with its advanced connectivity options, makes it a compelling choice for discerning PC builders.

Features

• Supports 12th and 13th Gen Intel Core Processors (LGA 1700)
• Robust 5+1+1 Power Phase Design for stable power delivery and enhanced performance
• Supports high-speed DDR4 memory up to 5333MHz (OC)
• High-speed M.2 slots: One PCIe Gen4 x4 and one PCIe Gen3 x4/SATA for lightning-fast storage
• Versatile connectivity: Includes multiple USB 3.2 Gen1 and USB 2.0 ports, plus a USB 3.2 Gen1 Type-C port
• Triple graphics output options: HDMI, DisplayPort, and D-Sub for flexible display configurations
• Integrated Gigabit LAN for reliable network connectivity
• Convenient ASRock Auto Driver Installer for easy setup
• M.2 Key E slot for optional WiFi/Bluetooth connectivity
• Supports Intel Hybrid Technology, Intel Turbo Boost Max 3.0, Intel Thermal Velocity Boost, and Intel Adaptive Boost Technology

Specifications

• Chipset: Intel B760
• CPU Socket: LGA 1700
• Memory: Dual-channel DDR4, 2x DIMM slots, up to 64GB, supports XMP 2.0
• Expansion Slots: 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x1
• M.2 Slots: 1 x Hyper M.2 (PCIe Gen4 x4), 1 x Ultra M.2 (PCIe Gen3 x4 & SATA), 1 x M.2 Key E (WiFi/BT)
• SATA Ports: 4 x SATA3 6.0 Gb/s
• USB Ports: 1 x USB 3.2 Gen1 Type-C (Rear), 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front), 5 x USB 2.0 (2 Rear, 3 Front)
• LAN: Realtek 1G LAN
• Audio: Realtek ALC887/897 7.1 CH HD Audio Codec
• Graphics Output: HDMI, DisplayPort, D-Sub
• BIOS: 128Mb AMI UEFI Legal BIOS
• Form Factor: Micro ATX
• Supported Operating Systems: Microsoft Windows 10 64-bit / 11 64-bit
