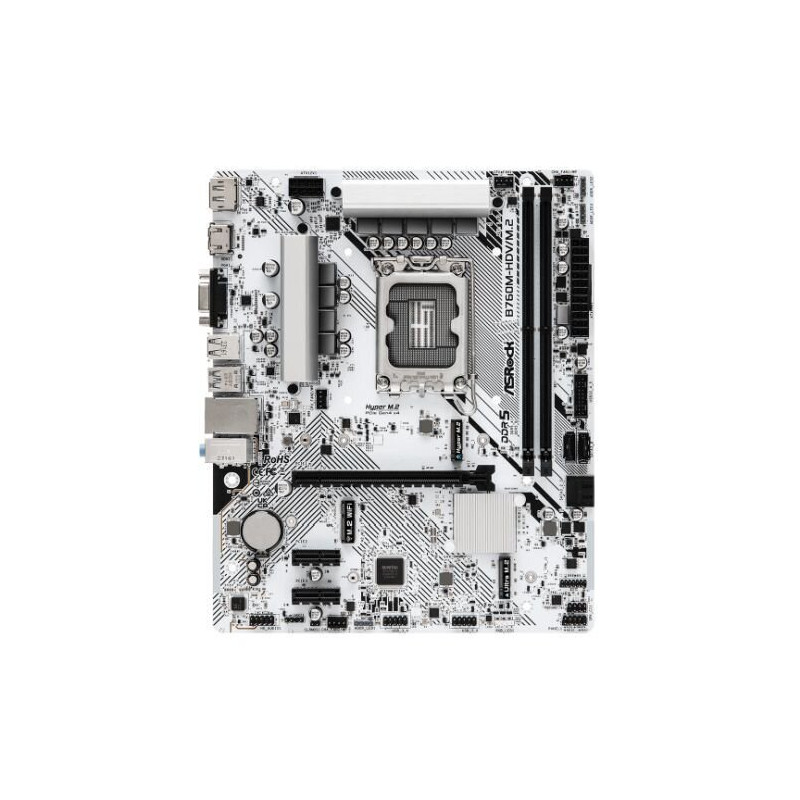

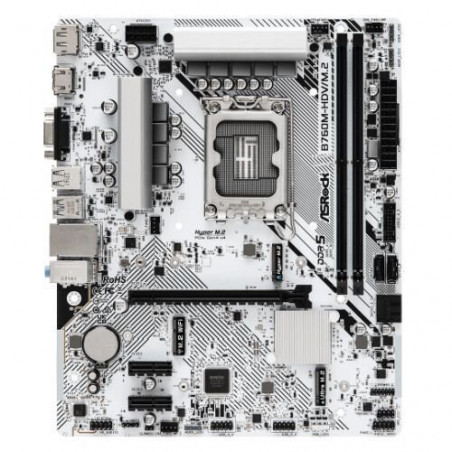

ASROCK B760M-HDV/M.2 Micro ATX Motherboard

ASRock B760M-HDV/M.2 Motherboard

The ASRock B760M-HDV/M.2 micro-ATX motherboard delivers robust performance and extensive connectivity for discerning PC builders. Ideal for gamers, content creators, and enthusiasts seeking a compact yet powerful foundation for their next build, this motherboard seamlessly blends high-speed capabilities with versatile expansion options. Benefit from cutting-edge features and reliable ASRock quality, all within a space-saving form factor.

Features

• Supports 13th and 12th Gen Intel Core Processors (LGA 1700)
• 7+1+1 Power Phase Design for stable, high-performance power delivery
• Dual-channel DDR5 memory support up to 7200MHz (OC) with XMP/EXPO profiles
• High-speed PCIe 4.0 x16 slot and multiple PCIe 3.0 slots for graphics cards and expansion cards
• Triple display output options: HDMI, DisplayPort, and D-Sub
• High-speed M.2 slots (one PCIe Gen4 x4 and one PCIe Gen3 x4) for lightning-fast NVMe SSDs
• Dragon 2.5G LAN for significantly faster networking speeds
• M.2 Key E slot for optional Wi-Fi/Bluetooth connectivity (module not included)
• USB 3.2 Gen1 Type-C and multiple USB 3.2 Gen1 and USB 2.0 ports for extensive connectivity
• Realtek ALC897 7.1 channel HD audio codec for immersive sound
• ASRock Auto Driver Installer for simplified driver installation
• Onboard RGB headers for customizable lighting effects

Specifications

• Chipset: Intel B760
• CPU Socket: LGA 1700
• Memory: Dual-channel DDR5, 2x DIMM slots, up to 96GB capacity
• Expansion Slots: 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x1, 1 x M.2 Key E (Wi-Fi)
• M.2 Slots: 1 x Hyper M.2 (PCIe Gen4 x4), 1 x Ultra M.2 (PCIe Gen3 x4)
• Storage: 4 x SATA3 6.0 Gb/s connectors
• LAN: Dragon 2.5G LAN (RTL8125BG)
• Audio: Realtek ALC897 7.1 CH HD Audio Codec
• Rear Panel I/O: 1 x D-Sub, 1 x HDMI, 1 x DisplayPort, 1 x USB 3.2 Gen1 Type-C, 3 x USB 3.2 Gen1 Type-A, 2 x USB 2.0, 1 x RJ-45 LAN port, HD Audio jacks
• Internal Connectors: Multiple USB headers, fan headers, RGB headers, etc. (See full specifications for details)
• Form Factor: Micro-ATX
