ASROCK B850 LIVEMIXER WIFI AM5 ATX Motherboard

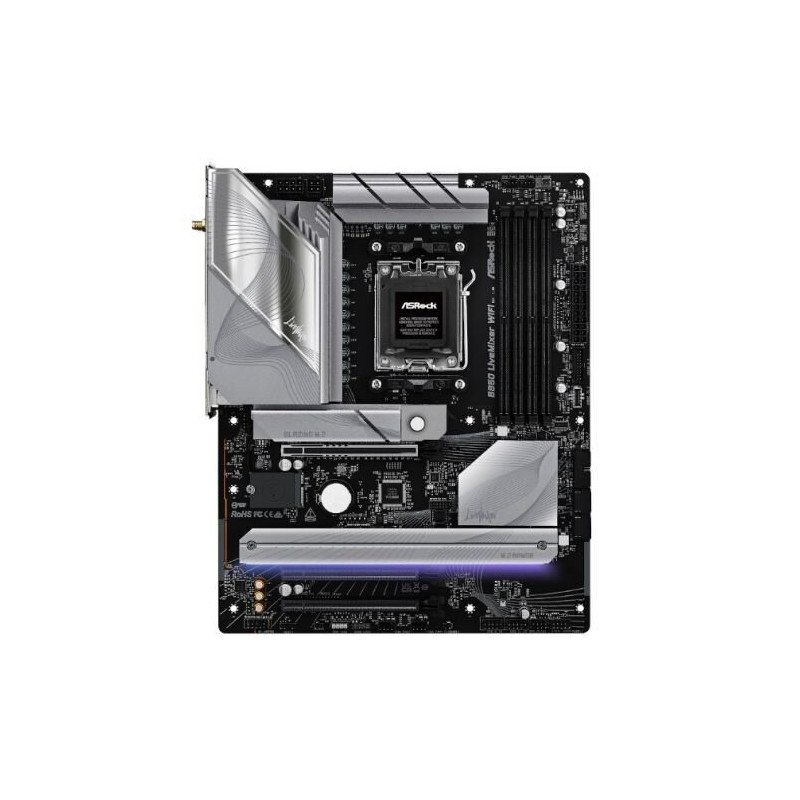

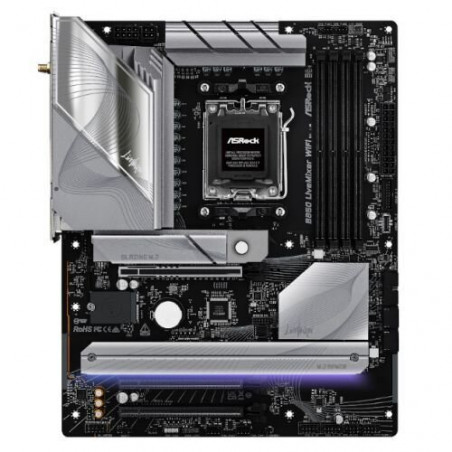

ASRock B850 LIVEMIXER WIFI Motherboard

The ASRock B850 LIVEMIXER WIFI motherboard is engineered for demanding content creators and tech enthusiasts who require top-tier performance and extensive connectivity. This AM5 platform delivers blazing-fast speeds, robust power delivery, and future-proof features, making it ideal for high-resolution streaming, demanding applications, and intensive multitasking. Benefit from seamless workflow and unparalleled stability with this expertly designed motherboard.

Features

• AMD AM5 Socket: Supports Ryzen 7000, 8000, and 9000 series processors.
• Exceptional Power Delivery: 14+2+1 phase power design with 80A Dr.MOS for stable overclocking and optimal performance.
• High-Speed Memory: Quad-channel DDR5 support with speeds up to 8000+ MHz (OC).
• Next-Gen Connectivity: Integrated Wi-Fi 7 802.11be and 2.5G LAN for lightning-fast networking.
• High-Speed Storage: One PCIe 5.0 x4 M.2 slot and two PCIe 4.0 x4 M.2 slots for ultrafast SSDs.
• Extensive I/O: Multiple USB 3.2 Gen2 and Gen1 ports, plus USB 2.0, HDMI, and DisplayPort outputs.
• Advanced Cooling: Comprehensive heatsink design, PWM/DC fan support, and thermistor header for precise thermal management.
• Enhanced Audio: Realtek ALC1220 7.1 CH HD Audio Codec with Nahimic Audio for immersive sound.
• RGB Lighting: Supports Polychrome RGB and SignalRGB for customizable lighting effects.
• DIY-Friendly Design: Features like BIOS Flashback and a toolless M.2 heatsink simplify installation and maintenance.

Specifications

• Chipset: AMD B850
• Socket: AM5
• Form Factor: ATX
• Memory: 4 x DDR5 DIMMs, Dual Channel, up to 8000+ MHz (OC)
• PCIe Slots: 1 x PCIe 5.0 x16, 2 x PCIe 4.0 x16
• M.2 Slots: 1 x PCIe Gen5 x4, 2 x PCIe Gen4 x4
• SATA Ports: 2 x SATA3
• USB Ports: 1 x USB 3.2 Gen2x2 Type-C (Front), 1 x USB 3.2 Gen2 Type-C (Rear), 1 x USB 3.2 Gen2 Type-A (Rear), 8 x USB 3.2 Gen1 (4 Rear, 4 Front), 12 x USB 2.0 (8 Rear, 4 Front)
• LAN: Realtek 2.5G LAN
• Wireless: 802.11be Wi-Fi 7 + Bluetooth
• Audio: Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
• Video Outputs: 1 x HDMI, 1 x DisplayPort
