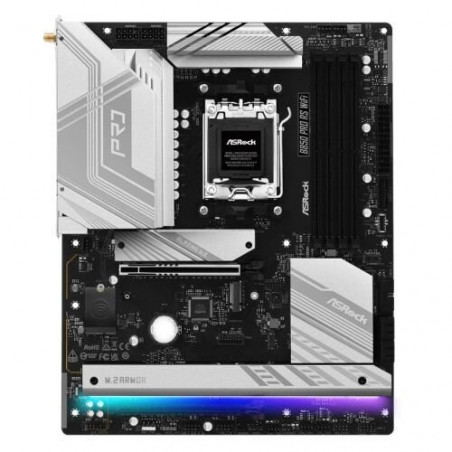

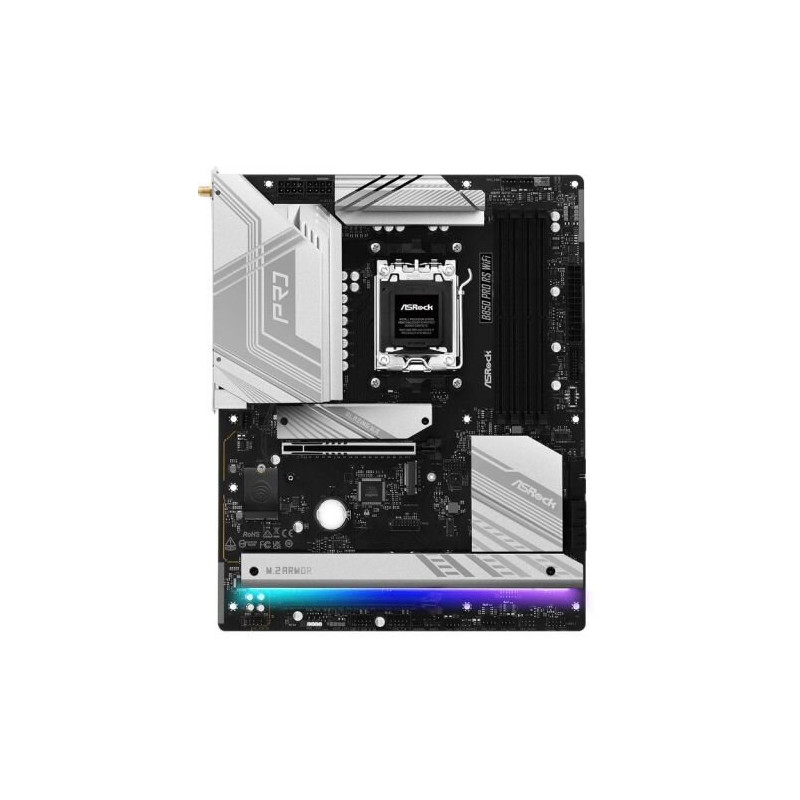

ASROCK B850 PRO RS WIFI AM5 ATX Motherboard

ASRock B850 PRO RS WIFI AM5 Motherboard

Unleash the full potential of your AMD Ryzen 7000, 8000, and 9000 series processor with the ASRock B850 PRO RS WIFI motherboard. Designed for discerning PC builders and enthusiasts, this ATX motherboard delivers exceptional performance, robust connectivity, and advanced features for gaming, content creation, and professional workloads. Benefit from cutting-edge technologies and a feature-rich design meticulously engineered for stability and overclocking potential.

Features

• AMD AM5 Socket: Supports AMD Ryzen 7000, 8000, and 9000 series processors.
• High-Performance Power Delivery: 14+2+1 phase power design with 80A Dr.MOS for stable overclocking and optimal power delivery.
• Blazing Fast Storage: Features one PCIe 5.0 x4 M.2 slot, two PCIe 4.0 x4 M.2 slots, and one PCIe 3.0 x4 M.2 slot for ultrafast NVMe SSDs.
• High-Bandwidth Memory: Supports quad-channel DDR5 memory with speeds exceeding 8000+ MHz (OC).
• Extensive Connectivity: Boasts multiple USB 3.2 Gen 2 and Gen 1 ports (including Type-C), USB 2.0 ports, Realtek 2.5G LAN, and Wi-Fi 6E for seamless connectivity.
• Advanced Cooling: Includes a comprehensive heatsink design for M.2 SSDs and other critical components, along with PWM/DC fan support and Fan-Tastic Tuning for optimal thermal management.
• Immersive Audio: Equipped with Realtek ALC897 7.1 CH HD Audio Codec and Nahimic Audio for high-fidelity sound and enhanced communication.
• RGB Lighting: Supports Polychrome RGB and SignalRGB for customizable lighting effects.
• DIY-Friendly Design: Features BIOS Flashback for easy BIOS updates, a pre-installed I/O shield, and an anti-drop screw design for M.2 heatsink installation.

Specifications

• Chipset: AMD B850
• Socket: AM5
• Form Factor: ATX
• Memory: 4x DDR5 DIMMs, Dual Channel, up to 8000+ MHz (OC)
• PCIe Slots: 1 PCIe 5.0 x16, 1 PCIe 4.0 x16
• Graphics Output: 1 HDMI, 1 USB Type-C (DP-alt)
• M.2 Slots: 1 PCIe Gen5 x4, 2 PCIe Gen4 x4, 1 PCIe Gen3 x4
• SATA: 4 SATA3
• USB: 1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen1 Type-C (Rear), 8 USB 3.2 Gen1 (4 Rear, 4 Front), 10 USB 2.0 (6 Rear, 4 Front)
• LAN: Realtek 2.5G LAN
• Wireless: 802.11axe WiFi 6E + Bluetooth
• Audio: Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
• Other Features: BIOS Flashback, M.2 Bottom Heatsink, Reinforced Steel Slot (PCIe 5.0 Version), Auto Driver Installer
