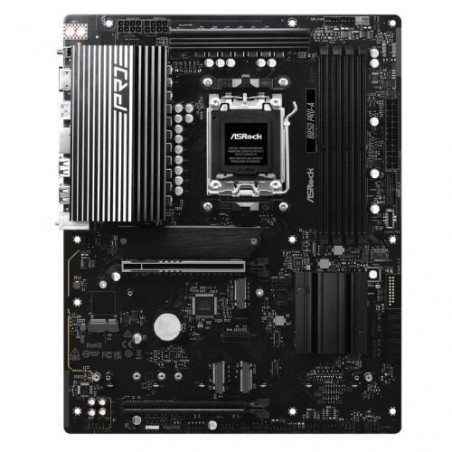

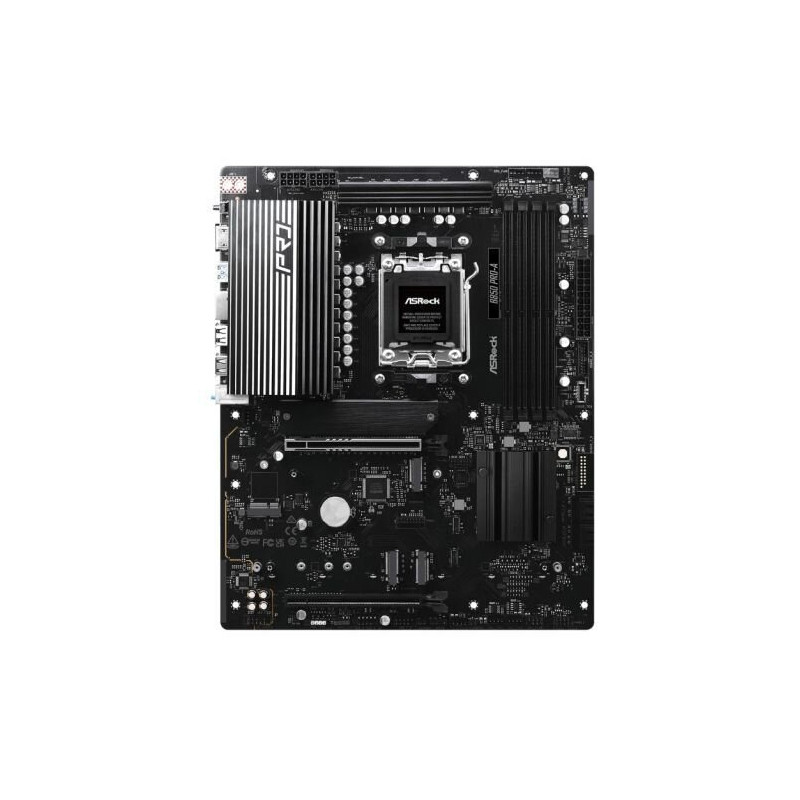

ASROCK B850 PRO-A AM5 ATX Motherboard

ASRock B850 PRO-A Motherboard

The ASRock B850 PRO-A motherboard is engineered for the discerning PC enthusiast seeking a robust and feature-rich platform for their next build. Whether you're a gamer demanding high frame rates, a content creator needing exceptional bandwidth, or a professional prioritizing stability and reliability, this AM5 motherboard delivers. Benefit from cutting-edge connectivity, superior power delivery, and effortless BIOS updates, all within a sleek and efficient design.

Features

• Supports AMD Socket AM5 Ryzen 9000, 8000, and 7000 Series Processors
• Robust 14+2+1 Phase Power Design with 80A Dr.MOS for exceptional stability and overclocking potential.
• Quad-channel DDR5 memory support with speeds up to 8000+ (OC).
• High-speed M.2 slots: One PCIe Gen5 x4, two PCIe Gen4 x4, and one PCIe Gen3 x4 for ultrafast storage.
• Comprehensive connectivity: Includes 2.5G LAN, multiple USB 3.2 Gen1/2 ports, USB-C (DP-alt mode), and HDMI.
• Convenient BIOS Flashback for easy firmware updates without needing a CPU or RAM.
• Advanced cooling solutions including aluminum heatsinks and PWM/DC fan support.

Specifications

• Chipset: AMD B850
• Socket: AM5
• Form Factor: ATX
• Memory: 4 x DDR5 DIMMs, Dual Channel, up to 8000+ (OC)
• PCIe Slots: 1 PCIe 5.0 x16, 1 PCIe 4.0 x16
• M.2 Slots: 1 Blazing M.2 (PCIe Gen5 x4), 2 Hyper M.2 (PCIe Gen4 x4), 1 Ultra M.2 (PCIe Gen3 x4)
• SATA: 4 SATA3
• USB: 1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen1 Type-C (Rear), 6 USB 3.2 Gen1 (4 Rear, 2 Front), 9 USB 2.0 (6 Rear, 3 Front)
• LAN: Realtek 2.5G LAN
• Audio: Realtek ALC897 7.1 CH HD Audio Codec
• Video Output: 1 HDMI, 1 USB Type-C (DP-alt)
• Other Features: BIOS Flashback, Polychrome RGB, SignalRGB support
