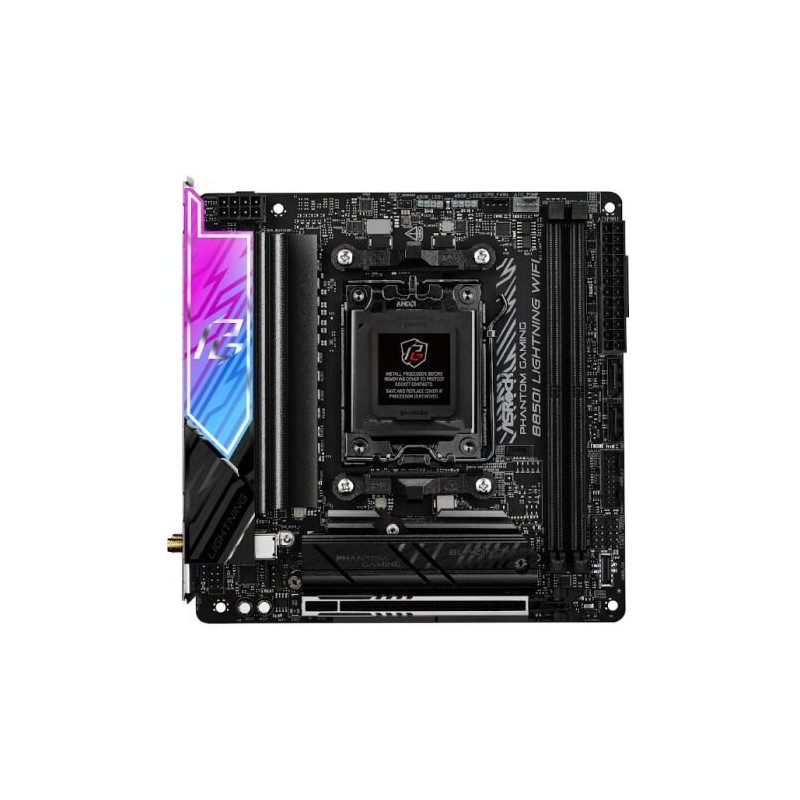

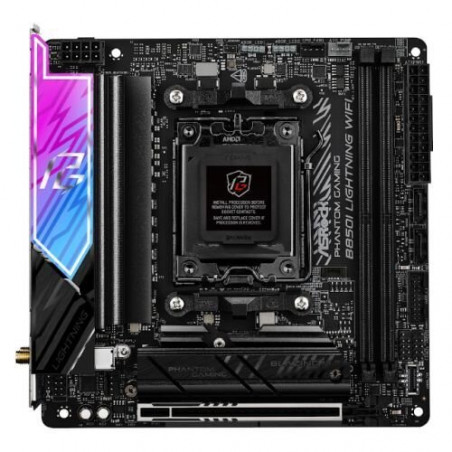

ASROCK B850I Lightning WiFi AM5 Mini-ITX Motherboard

ASRock B850I Lightning WiFi

Unleash the full potential of your AMD Ryzen™ processor with the ASRock B850I Lightning WiFi, a compact yet powerful Mini-ITX motherboard designed for discerning PC enthusiasts and gamers. This board delivers exceptional performance, cutting-edge connectivity, and robust features in a space-saving form factor, ideal for high-performance builds in smaller cases. Experience blazing-fast speeds, seamless multitasking, and stunning visuals, all within a meticulously engineered design.

Features

• AMD AM5 Socket: Supports AMD Ryzen™ 9000, 8000, and 7000 series processors.
• High-Performance Power Delivery: 10+1+1 phase power design with 110A SPS for VCore, ensuring stable overclocking and optimal performance.
• Blazing-Fast Storage: PCIe 5.0 x4 M.2 slot for NVMe SSDs, delivering incredible transfer speeds.
• Dual-Channel DDR5 Support: Up to 128GB of DDR5 RAM (8200+ OC), enabling high-bandwidth memory performance.
• Next-Gen Connectivity: Killer 2.5G LAN and Wi-Fi 6E for lightning-fast wired and wireless networking.
• Premium Audio: Realtek ALC1220 7.1 CH HD Audio Codec with Nahimic Audio for immersive sound.
• Extensive I/O: Multiple USB ports, including USB 3.2 Gen2 Type-C and USB Type-C with DP Alt Mode.
• Compact Design: Mini-ITX form factor perfect for small form factor builds.
• RGB Lighting: Polychrome RGB and SignalRGB support for customizable lighting effects.
• BIOS Flashback: Convenient BIOS updates without needing a CPU or RAM.

Specifications

• Chipset: AMD B850
• Socket: AMD AM5
• Form Factor: Mini-ITX
• Memory: 2x DDR5 DIMM slots, Dual Channel, up to 8200+ (OC), Max 128GB
• Expansion Slots: 1 x PCIe 5.0 x16
• M.2 Slots: 1 x PCIe Gen5 x4 (Blazing M.2), 1 x PCIe Gen4 x4 (Hyper M.2)
• SATA: 2 x SATA3 6.0 Gb/s
• USB: 1 x USB 3.2 Gen2 Type-C (Rear), 2 x USB 3.2 Gen2 Type-A (Rear), 1 x USB 3.2 Gen1 Type-C (Front), 3 x USB 3.2 Gen1 (1 Rear, 2 Front), 6 x USB 2.0 (4 Rear, 2 Front)
• LAN: Killer 2.5G LAN
• Wireless: 802.11axe WiFi 6E + Bluetooth
• Audio: Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
• Graphics Output: 1 x HDMI, 1 x USB Type-C (DP-Alt)
• Other Features: BIOS Flashback, Polychrome RGB, SignalRGB, 8-Layer PCB, Hi-Density Power Connector
