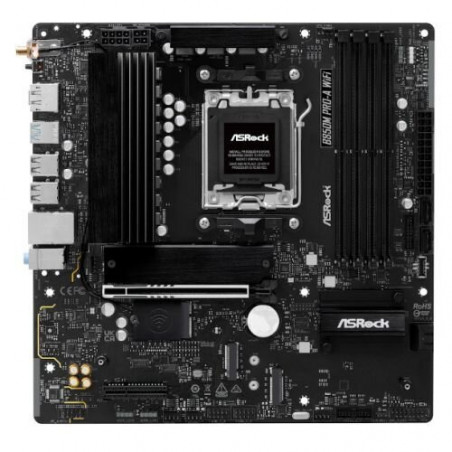

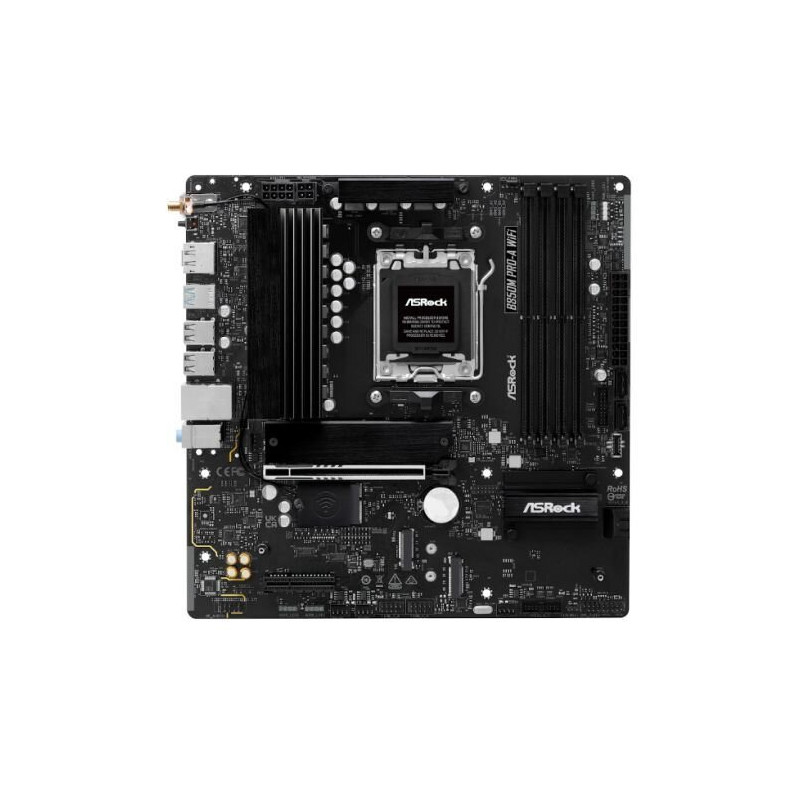

ASROCK B850M Pro-A WiFi AM5 Micro-ATX Motherboard

ASRock B850M Pro-A WiFi

The ASRock B850M Pro-A WiFi motherboard delivers robust performance and extensive connectivity for discerning PC builders. Ideal for gamers, content creators, and professionals demanding high-speed data transfer and reliable stability, this Micro-ATX motherboard provides a powerful foundation for your next build. Benefit from cutting-edge features like PCIe 5.0 support and blazing-fast Wi-Fi 6E, all within a compact and efficient design.

Features

• AMD AM5 Socket: Supports Ryzen 9000, 8000, and 7000 series processors.
• High-Performance Power Delivery: 8+2+1 phase power design with Dr.MOS for stable overclocking.
• Quad-Channel DDR5 Memory: Supports up to 8000+ MHz (OC) for exceptional memory bandwidth.
• Next-Gen Storage: Features one PCIe 5.0 x4 M.2 slot and two PCIe 4.0 x4 M.2 slots for ultrafast NVMe SSDs.
• High-Speed Networking: Integrated 2.5G LAN and Wi-Fi 6E for lightning-fast wired and wireless connectivity.
• Comprehensive I/O: Multiple USB 3.2 Gen 2 and Gen 1 ports, including USB-C connectivity, plus HDMI and DisplayPort video outputs.
• Advanced Cooling: Features aluminum heatsinks and PWM/DC fan support for optimal thermal management.
• BIOS Flashback: Easily update the BIOS without needing a CPU or RAM.

Specifications

• Chipset: AMD B850
• Socket: AMD AM5
• Form Factor: Micro-ATX
• Memory: 4x DDR5 DIMM slots, Dual Channel, up to 8000+ MHz (OC)
• PCIe Slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x4
• M.2 Slots: 1x PCIe Gen5 x4, 2x PCIe Gen4 x4
• SATA Ports: 4x SATA3
• USB Ports: 1x USB 3.2 Gen2 Type-C (Rear), 1x USB 3.2 Gen2 Type-A (Rear), 1x USB 3.2 Gen1 Type-C (Front), 6x USB 3.2 Gen1 (2 Rear, 4 Front), 8x USB 2.0 (4 Rear, 4 Front)
• LAN: Realtek 2.5G LAN
• Wireless: 802.11axe WiFi 6E + Bluetooth
• Audio: Realtek ALC897 7.1 CH HD Audio Codec
• Video Outputs: 1x HDMI, 1x DisplayPort
• Other Features: BIOS Flashback, Aluminum Heatsinks
