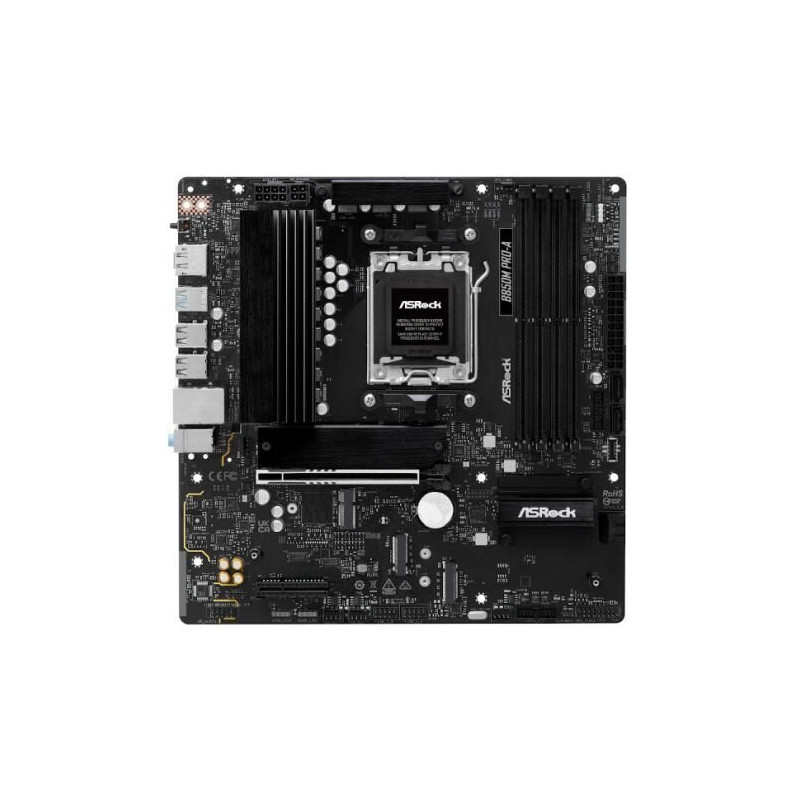

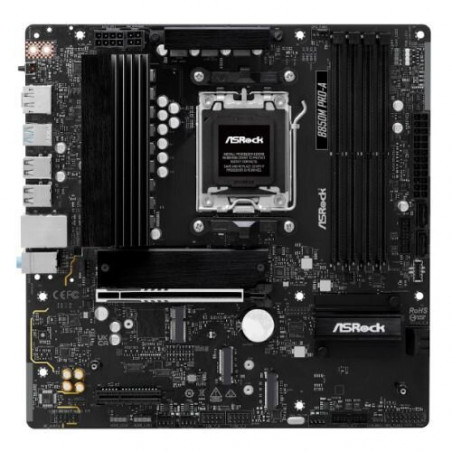

ASROCK B850M PRO-A AM5 Micro ATX Motherboard

ASRock B850M PRO-A Micro ATX Motherboard

The ASRock B850M PRO-A is a high-performance Micro ATX motherboard designed for discerning PC builders seeking a robust and feature-rich platform for their next AMD Ryzen system. Whether you're a gamer demanding peak performance, a content creator needing reliable stability, or a professional prioritizing efficiency, this motherboard delivers. Its comprehensive feature set, including cutting-edge connectivity and advanced power delivery, ensures a smooth and powerful computing experience.

Features

• Supports AMD Socket AM5 Ryzen 7000, 8000, and 9000 Series Processors
• Robust 8+2+1 Phase Power Design with Dr.MOS for superior power delivery and stability
• Quad-channel DDR5 memory support with speeds up to 8000+ MHz (OC)
• High-speed storage options: Blazing M.2 (PCIe Gen5 x4), and two Hyper M.2 slots (PCIe Gen4 x4)
• Comprehensive connectivity: 2.5G LAN, USB 3.2 Gen2 Type-C and Type-A ports, multiple USB 3.2 Gen1 and USB 2.0 ports
• Dual graphics output: HDMI and DisplayPort
• Supports BIOS Flashback for easy BIOS updates
• Advanced cooling solutions including aluminum heatsinks and PWM/DC fan support with Fan-Tastic Tuning
• Supports Polychrome RGB and SignalRGB for customizable lighting effects

Specifications

• Chipset: AMD B850
• Socket: AM5
• Form Factor: Micro ATX
• Memory: 4 x DDR5 DIMMs, Dual Channel, up to 8000+ MHz (OC)
• PCIe Slots: 1 PCIe 5.0 x16, 1 PCIe 4.0 x4, 1 M.2 Key E for WiFi
• M.2 Slots: 1 Blazing M.2 (PCIe Gen5 x4), 2 Hyper M.2 (PCIe Gen4 x4)
• SATA: 4 SATA3
• USB: 1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 1 USB 3.2 Gen1 Type-C (Front), 6 USB 3.2 Gen1 (2 Rear, 4 Front), 8 USB 2.0 (4 Rear, 4 Front)
• LAN: Realtek 2.5G LAN
• Audio: Realtek ALC897 7.1 CH HD Audio Codec
• Graphics Output: 1 HDMI, 1 DisplayPort
• Other Features: BIOS Flashback, Auto Driver Installer
