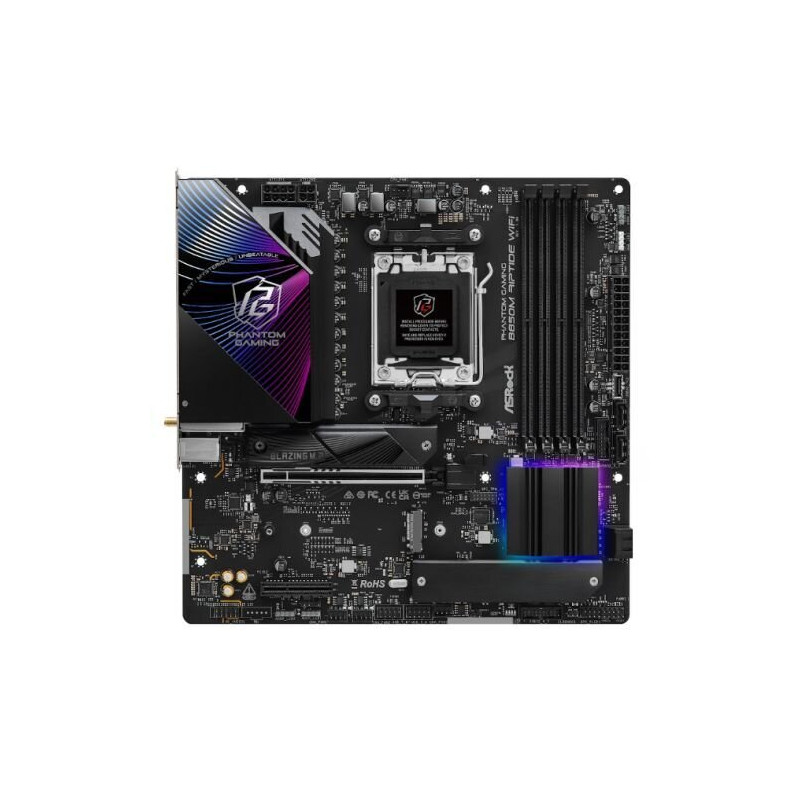

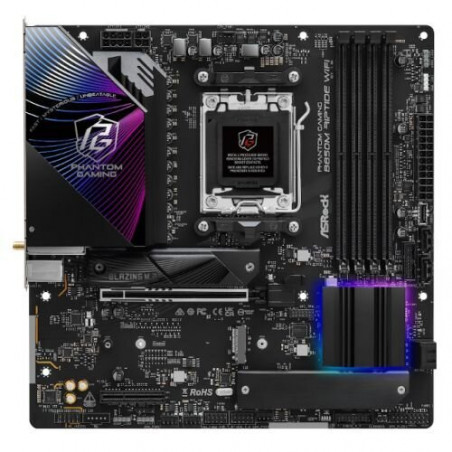

ASROCK B850M RIPTIDE WIFI AM5 Micro ATX Motherboard

ASROCK B850M RIPTIDE WIFI Motherboard

Unleash the full potential of your AMD Ryzen™ 7000, 8000, and 9000 series processor with the ASROCK B850M RIPTIDE WIFI motherboard. Designed for discerning PC enthusiasts and gamers demanding top-tier performance and cutting-edge connectivity, this Micro-ATX powerhouse delivers exceptional speed, stability, and future-proof features. Experience blazing-fast PCIe 5.0 and Wi-Fi 7 connectivity, coupled with robust power delivery and advanced cooling solutions, ensuring your system remains cool and stable under even the most demanding workloads.

Features

• AMD AM5 Socket: Supports AMD Ryzen™ 7000, 8000, and 9000 Series Processors
• High-Performance Power Delivery: 12+2+1 Phase Power Design with Dr.MOS for superior stability and overclocking potential.
• Blazing-Fast Storage: Triple M.2 slots (one PCIe Gen5 x4, one PCIe Gen4 x4, and one PCIe Gen4 x2) for ultrafast NVMe SSDs.
• Next-Gen Connectivity: Integrated Wi-Fi 7 802.11be and 2.5G LAN for lightning-fast networking.
• Advanced Cooling: Comprehensive heatsink design, PWM/DC fan support, and a thermistor header for optimal thermal management.
• Enhanced Audio: Realtek ALC1220 7.1 CH HD Audio Codec with Nahimic Audio for immersive sound.
• RGB Lighting: Supports Polychrome RGB and SignalRGB for customizable lighting effects.
• DIY-Friendly Design: Features like BIOS Flashback and an easy-to-install graphics card slot simplify the build process.

Specifications

• Chipset: AMD B850
• Socket Type: AM5
• Form Factor: Micro-ATX
• Memory: 4x DDR5 DIMM slots, Dual Channel, up to 8000+ (OC)
• PCIe Slots: 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x4
• M.2 Slots: 1 x PCIe Gen5 x4, 1 x PCIe Gen4 x4, 1 x PCIe Gen4 x2
• SATA Ports: 4 x SATA3
• USB Ports: 2 x USB 3.2 Gen2 Type-A+C (Rear), 1 x USB 3.2 Gen1 Type-C (Front), 6 x USB 3.2 Gen1 (2 Rear, 4 Front), 8 x USB 2.0 (4 Rear, 4 Front)
• LAN: Realtek 2.5G LAN
• Wireless: 802.11be Wi-Fi 7 + Bluetooth
• Audio: Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
• Video Output: 1 x HDMI, 1 x DisplayPort
• Other Features: M.2 Bottom Heatsink, BIOS Flashback
