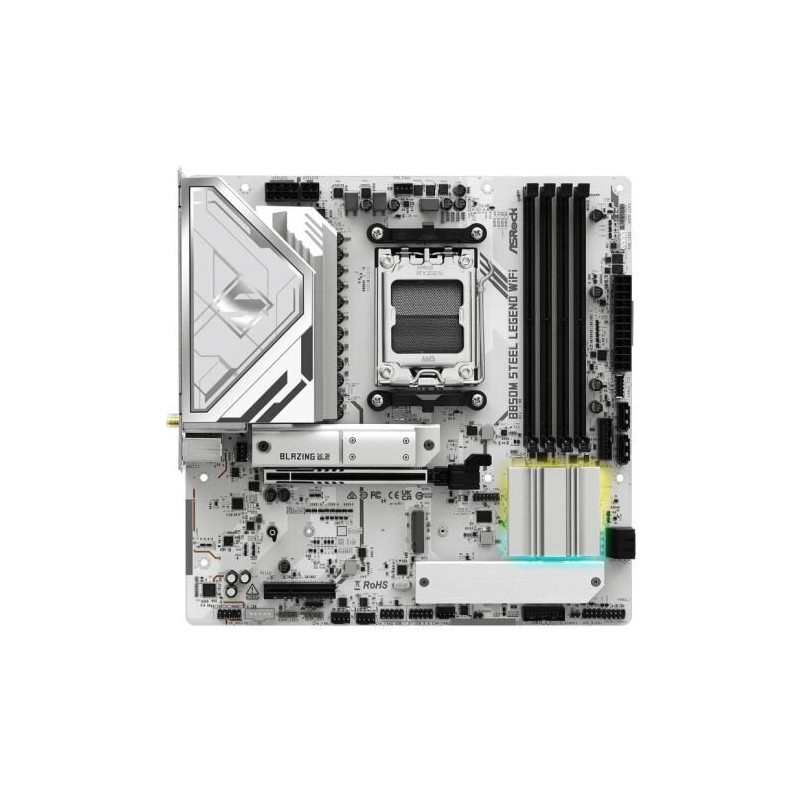

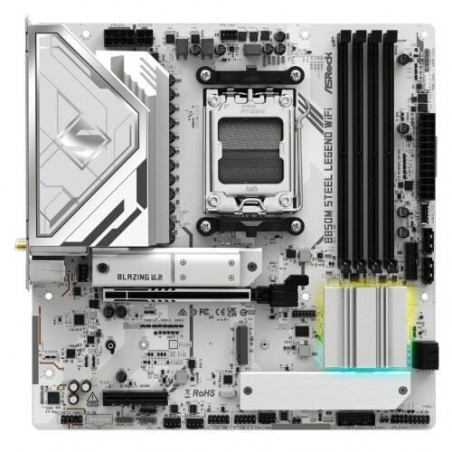

ASROCK B850M Steel Legend WiFi AM5 Micro ATX Motherboard

ASROCK B850M Steel Legend WiFi

Unleash the full potential of your AMD Ryzen 7000, 8000, and 9000 series processor with the ASROCK B850M Steel Legend WiFi motherboard. Designed for discerning PC enthusiasts and gamers demanding top-tier performance and cutting-edge connectivity, this Micro-ATX powerhouse delivers exceptional speed, robust features, and a visually striking aesthetic. Experience seamless multitasking, lightning-fast storage, and blazing-fast Wi-Fi 7 connectivity – all within a compact and highly efficient design.

Features

• AMD AM5 Socket: Supports the latest AMD Ryzen 7000, 8000, and 9000 series processors.
• High-Performance Power Delivery: 12+2+1 phase power design with Dr.MOS for stable overclocking and optimal CPU performance.
• Blazing-Fast Storage: Three M.2 slots, including one PCIe Gen5 x4 for NVMe SSDs capable of speeds up to 128Gb/s.
• Next-Gen Connectivity: Integrated Wi-Fi 7 802.11be for ultra-fast wireless speeds and 2.5G LAN for wired networking.
• High-Bandwidth Memory: Quad-channel DDR5 support with speeds up to 8000+ MHz (OC).
• Premium Audio: Realtek ALC1220 7.1 CH HD Audio Codec with Nahimic Audio for immersive sound.
• Robust Cooling: Comprehensive heatsink design and smart fan control for optimal thermal performance.
• Enhanced Durability: 2oz copper PCB and high-quality components for long-lasting reliability.
• Stylish Aesthetics: Polychrome RGB lighting for customizable visual effects.
• DIY-Friendly Design: Features like BIOS Flashback and a user-friendly layout simplify installation and maintenance.

Specifications

• Chipset: AMD B850
• Socket: AMD AM5
• Form Factor: Micro-ATX
• Memory: 4x DDR5 DIMM slots, Dual Channel, up to 8000+ MHz (OC), Max 256GB
• Expansion Slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x4
• M.2 Slots: 1x PCIe Gen5 x4, 1x PCIe Gen4 x4, 1x PCIe Gen4 x2
• SATA: 4x SATA3 6.0 Gb/s
• USB: 2x USB 3.2 Gen2 (Type-A + Type-C), 1x USB 3.2 Gen1 (Type-C), 6x USB 3.2 Gen1 (Type-A), 8x USB 2.0
• LAN: Realtek 2.5G LAN
• Wireless: Wi-Fi 7 802.11be + Bluetooth 5.4
• Audio: Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
• Video Output: 1x HDMI, 1x DisplayPort
• BIOS: AMI UEFI
• Other Features: BIOS Flashback, M.2 Heatsink, Polychrome RGB, ASRock Lightning Gaming Ports
