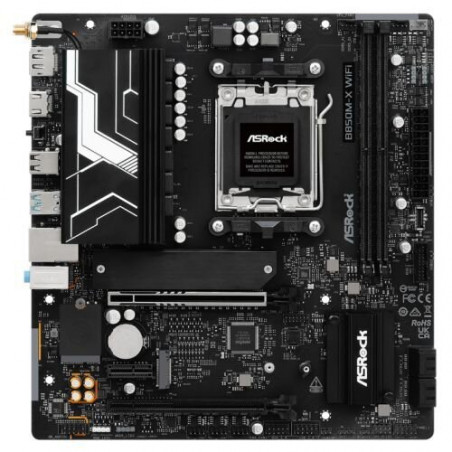

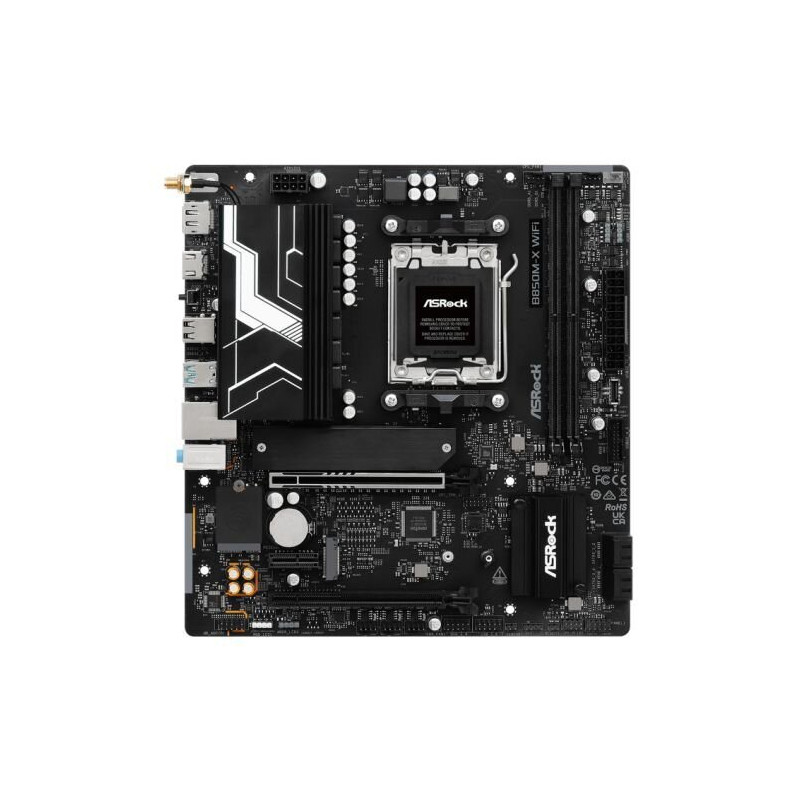

ASROCK B850M-X WIFI R2.0 AM5 Micro ATX Motherboard

ASRock B850M-X WIFI R2.0 Motherboard

The ASRock B850M-X WIFI R2.0 is a Micro-ATX motherboard designed for discerning PC builders seeking a powerful and versatile platform. This board delivers exceptional performance and connectivity, making it ideal for gamers, content creators, and professionals who demand high-speed data transfer and robust features in a compact form factor. Benefit from cutting-edge technologies and a feature-rich design without compromising on budget or build size.

Features

• AMD AM5 Socket: Supports Ryzen 7000, 8000, and 9000 series processors.
• High-Performance Power Delivery: 6+1+1 phase power design with Dr.MOS for stable overclocking and enhanced performance.
• Dual-Channel DDR5 Support: Up to 128GB of DDR5 RAM with speeds exceeding 8200+ MHz (OC).
• Blazing Fast Storage: PCIe 5.0 x4 M.2 slot and PCIe 4.0 x4 M.2 slot for ultrafast NVMe SSDs.
• Next-Gen Connectivity: Integrated Wi-Fi 6E and 2.5GbE LAN for lightning-fast wired and wireless networking.
• Premium Audio: Realtek ALC897 7.1 CH HD Audio Codec with Nahimic Audio for immersive sound.
• Extensive I/O: Multiple USB 3.2 Gen1 ports (including Type-C), HDMI 2.1, and DisplayPort 1.4 outputs.
• Enhanced Cooling: Aluminum heatsinks and smart fan control for optimal thermal performance.
• BIOS Flashback: Convenient BIOS updates without needing a CPU or RAM.
• RGB Lighting: Onboard RGB and addressable RGB headers for customizable lighting effects.

Specifications

• Chipset: AMD B850
• Socket: AMD AM5
• Memory: 2x DDR5 DIMM slots, Dual Channel, up to 128GB, up to 8200+ MHz (OC)
• PCIe Slots: 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16, 1 x PCIe 4.0 x1
• M.2 Slots: 1 x PCIe Gen5 x4 (Blazing M.2), 1 x PCIe Gen4 x4 (Hyper M.2)
• SATA: 4 x SATA3 6.0 Gb/s
• USB: 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front), 5 x USB 3.2 Gen1 (3 Rear, 2 Front), 6 x USB 2.0 (2 Rear, 4 Front)
• LAN: Realtek 2.5G LAN
• Wireless: 802.11axe Wi-Fi 6E + Bluetooth
• Audio: Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
• Video Outputs: 1 x HDMI, 1 x DisplayPort
• Form Factor: Micro-ATX
• BIOS: AMI UEFI
