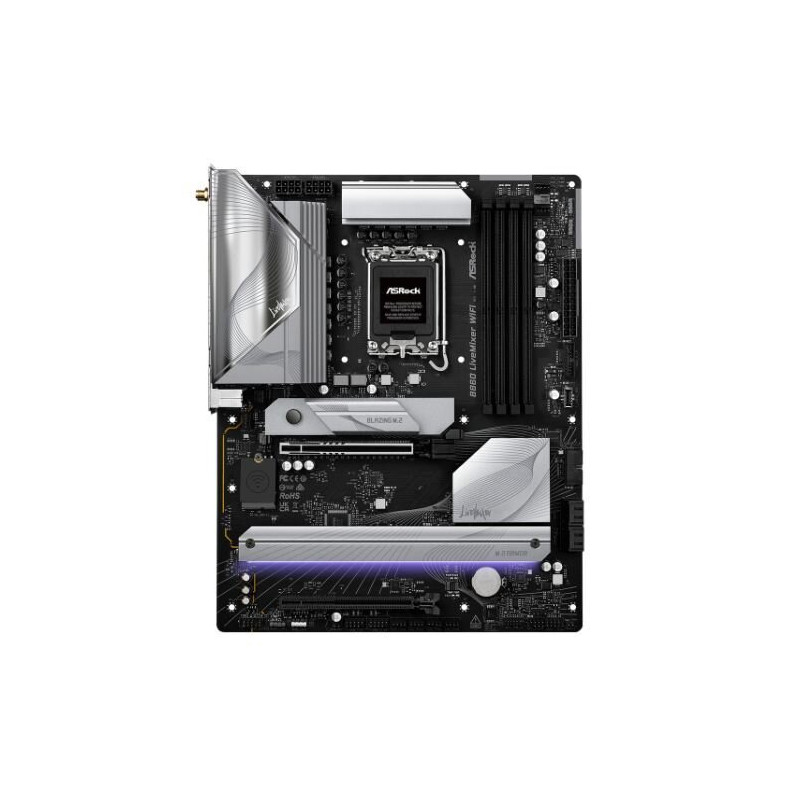

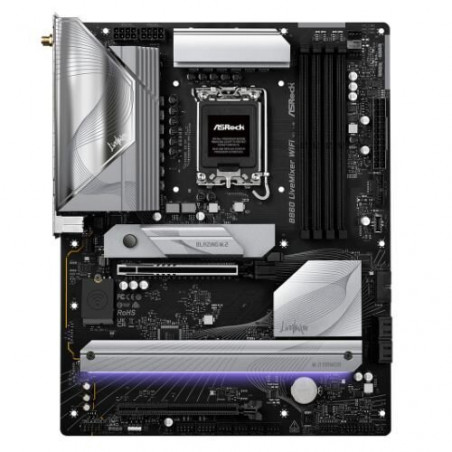

ASROCK B860M LIVEMIXER WIFI ATX Motherboard

ASRock B860 LIVEMIXER WIFI Motherboard

The ASRock B860 LIVEMIXER WIFI motherboard is engineered for demanding content creators and tech enthusiasts who require uncompromising performance and extensive connectivity. This ATX motherboard delivers exceptional speed and stability, boasting cutting-edge features designed to streamline workflows and enhance the creative process. From its blazing-fast PCIe 5.0 support to its comprehensive array of I/O options, the B860 LIVEMIXER WIFI is the ideal foundation for a high-performance PC build.

Features

• Supports Intel Core Ultra Processors (Series 2) (LGA1851)
• Robust 12+1+1+1+1 Power Phase Design with Dr.MOS for superior power delivery and overclocking capabilities.
• Quad-channel DDR5 memory support with speeds up to 8666+ (OC).
• High-speed storage options: One PCIe Gen5 x4 M.2 slot and two PCIe Gen4 x4 M.2 slots.
• Extensive connectivity: Thunderbolt 4, 2.5G LAN, Wi-Fi 6E, and numerous USB ports (including USB 3.2 Gen1 and USB 2.0).
• Enhanced audio with Realtek ALC1220 7.1 CH HD Audio Codec and Nahimic Audio for immersive sound.
• Advanced cooling solutions including an XXL M.2 heatsink and PWM/DC fan support.
• User-friendly features like BIOS Flashback and a toolless M.2 heatsink design.
• Stylish Polychrome RGB lighting with SignalRGB support for personalized aesthetics.

Specifications

• Chipset: Intel B860
• Socket: LGA 1851
• Form Factor: ATX
• Memory: 4 x DDR5 DIMMs, Dual Channel, up to 8666+ (OC)
• PCIe Slots: 1 PCIe 5.0 x16, 1 PCIe 4.0 x16
• Graphics Output: 1 HDMI, 1 Thunderbolt 4 Type-C
• Audio: Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
• Storage: 4 SATA3, 1 Blazing M.2 (PCIe Gen5x4), 2 Hyper M.2 (PCIe Gen4x4)
• USB: 10 USB 3.2 Gen1 (6 Rear, 4 Front), 10 USB 2.0 (6 Rear, 4 Front), 1 USB 3.2 Gen1 Type-C (Front), 1 Thunderbolt 4 Type-C (Rear)
• Networking: Realtek 2.5G LAN, 802.11axe Wi-Fi 6E + Bluetooth
• Other Features: BIOS Flashback, 20K Caps with 1000uF Capacitance, Polychrome RGB, SignalRGB Support
