ASROCK B860 PRO RS WIFI ATX Motherboard with Wi-Fi 6E, 2.5G LAN, and DDR5

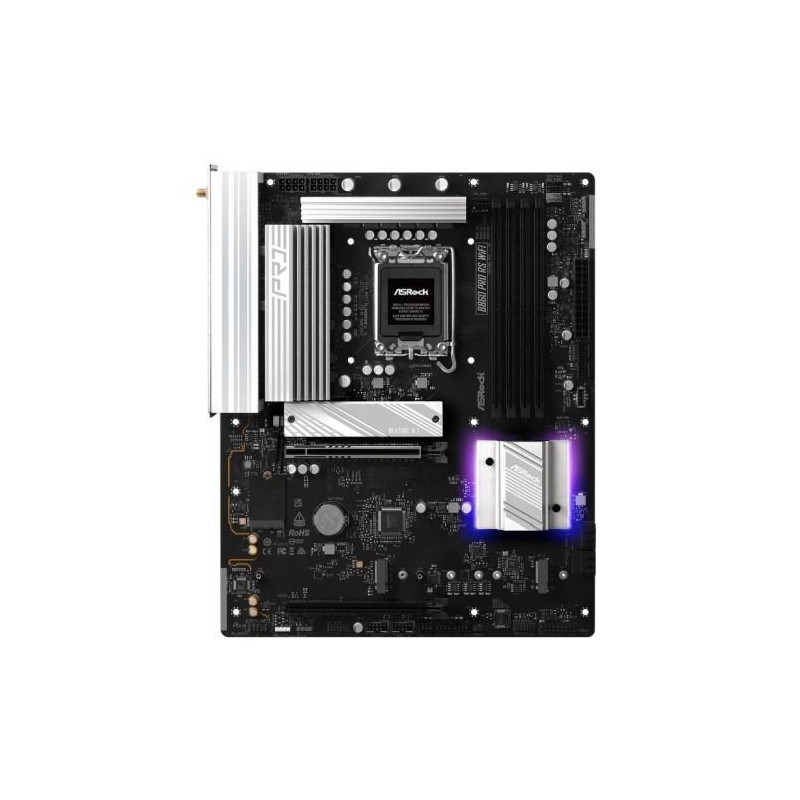

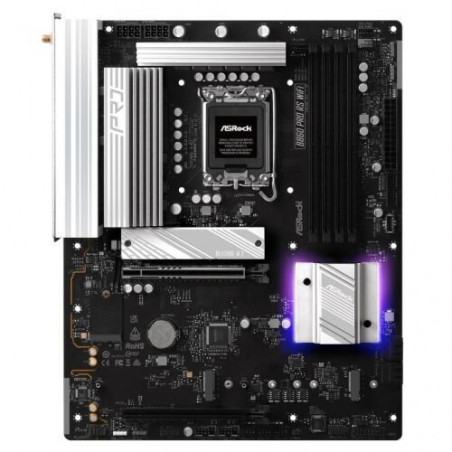

ASRock B860 PRO RS WIFI Motherboard

The ASRock B860 PRO RS WIFI motherboard is a high-performance ATX board designed for discerning PC builders and enthusiasts seeking top-tier connectivity and expandability. Whether you're a gamer demanding the latest speeds, a content creator needing robust processing power, or a professional requiring reliable stability, this motherboard delivers exceptional performance and future-proof features. Its advanced design, coupled with cutting-edge technologies, makes it an ideal foundation for a powerful and versatile system.

Features

• Supports Intel Core Ultra Processors (Series 2) (LGA1851)
• Robust 10+1+1+1+1 Power Phase Design with Dr.MOS for superior power delivery and overclocking capabilities.
• Quad-channel DDR5 memory support with speeds up to 8666+ (OC).
• High-speed storage options: One PCIe 5.0 x16 slot, one PCIe 4.0 x16 slot, one blazing-fast PCIe Gen5 x4 M.2 slot, and two Hyper M.2 Gen4 x4 slots.
• Comprehensive connectivity: Wi-Fi 6E, 2.5G LAN, USB 3.2 Gen2x2 Type-C (rear), USB 3.2 Gen1 Type-C (front), multiple USB 3.2 Gen1 and USB 2.0 ports, HDMI and DisplayPort outputs.
• Enhanced audio with Realtek ALC897 7.1 CH HD Audio Codec and Nahimic Audio for immersive sound.
• Advanced cooling solutions including aluminum heatsinks, PWM/DC fan support, and Fan-Tastic Tuning.
• RGB lighting with Polychrome RGB and SignalRGB support for customizable aesthetics.
• DIY-friendly features like BIOS Flashback and a pre-installed I/O shield.

Specifications

• Brand: ASRock
• MPN: B860 PRO RS WIFI
• EAN: 4711581490239
• Socket Type: LGA 1851
• Chipset: Intel B860
• Form Factor: ATX
• Memory: 4x DDR5 DIMMs, Dual Channel, up to 8666+ (OC)
• PCIe Slots: 1 PCIe 5.0 x16, 1 PCIe 4.0 x16
• M.2 Slots: 1 Blazing M.2 (PCIe Gen5 x4), 2 Hyper M.2 (PCIe Gen4 x4)
• SATA Ports: 4 SATA3
• USB Ports: 1 USB 3.2 Gen2x2 Type-C (Rear), 1 USB 3.2 Gen1 Type-C (Front), 8 USB 3.2 Gen1 (6 Rear, 2 Front), 6 USB 2.0 (2 Rear, 4 Front)
• LAN: Realtek 2.5G LAN
• Wireless: 802.11axe Wi-Fi 6E + Bluetooth
• Audio: Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
• Graphics Output: 1 HDMI, 1 DisplayPort
