ASROCK B860 PRO RS ATX Motherboard with DDR5, 2.5G LAN, RGB

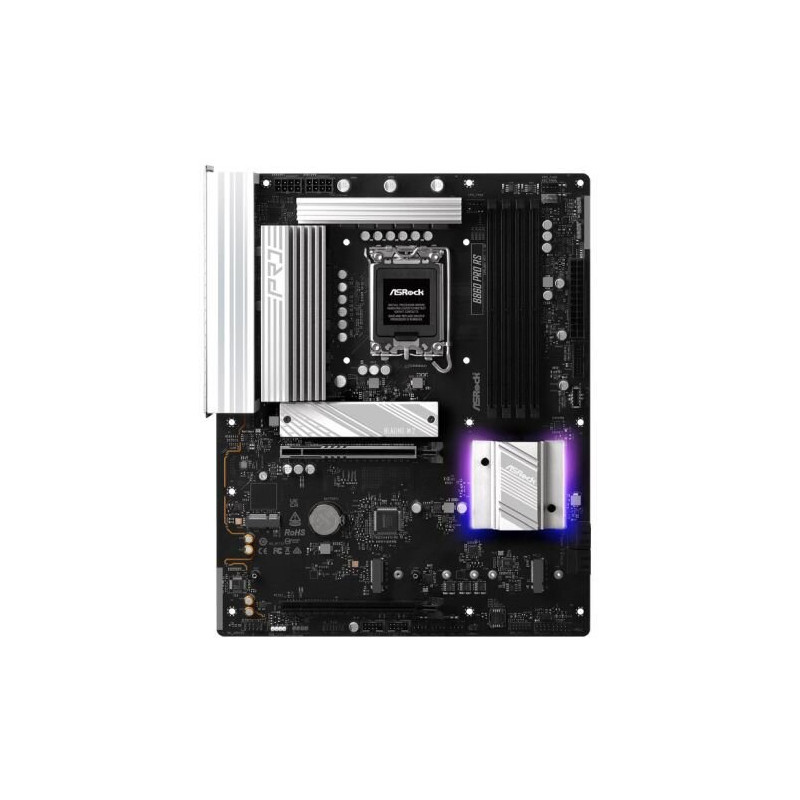

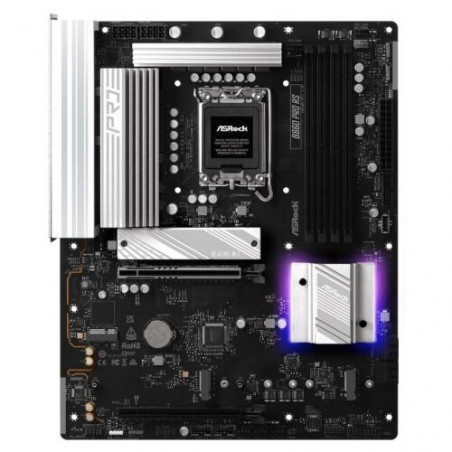

ASRock B860 PRO RS Motherboard

The ASRock B860 PRO RS motherboard is a high-performance ATX board designed for discerning PC builders seeking a powerful and feature-rich platform. Ideal for gamers, content creators, and professionals demanding top-tier performance and expandability, this motherboard delivers exceptional speed and stability thanks to its robust power delivery and cutting-edge connectivity options. Benefit from future-proof technology without compromising on build quality or ease of use.

Features

• Supports Intel Core Ultra Processors (Series 2) with LGA1851 socket
• Robust 10+1+1+1+1 Power Phase Design with Dr.MOS for superior power delivery and overclocking potential
• Quad-channel DDR5 memory support with speeds up to 8666+ (OC)
• High-speed storage options: Blazing M.2 (PCIe Gen5x4), and two Hyper M.2 (PCIe Gen4x4) slots
• Next-gen connectivity: USB 3.2 Gen2x2 Type-C (20Gbps), 2.5G LAN, HDMI, and DisplayPort
• Enhanced audio with Realtek ALC897 7.1 CH HD Audio Codec and Nahimic Audio for immersive sound
• Advanced cooling solutions including M.2 bottom heatsink and PWM/DC fan support with Fan-Tastic Tuning
• RGB lighting capabilities with Polychrome RGB and SignalRGB support
• DIY-friendly features: BIOS Flashback, pre-installed I/O shield, and reinforced PCIe 5.0 steel slot

Specifications

• Chipset: Intel B860
• Socket Type: LGA 1851
• Form Factor: ATX
• Memory: 4 x DDR5 DIMMs, Dual Channel, up to 8666+ (OC)
• PCIe Slots: 1 PCIe 5.0 x16, 1 PCIe 4.0 x16
• M.2 Slots: 1 Blazing M.2 (PCIe Gen5x4), 2 Hyper M.2 (PCIe Gen4x4), 1 M.2 Key E for WiFi
• SATA Ports: 4 SATA3
• USB Ports: 1 USB 3.2 Gen2x2 Type-C (Rear), 1 USB 3.2 Gen1 Type-C (Front), 8 USB 3.2 Gen1 (6 Rear, 2 Front), 6 USB 2.0 (2 Rear, 4 Front)
• LAN: Realtek 2.5G LAN
• Audio: Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
• Graphics Output: 1 HDMI, 1 DisplayPort
• Other Features: BIOS Flashback, M.2 Bottom Heatsink, Polychrome RGB, SignalRGB
