ASROCK B860 PRO-A WIFI ATX Motherboard with Wi-Fi 6E, 2.5G LAN & DDR5

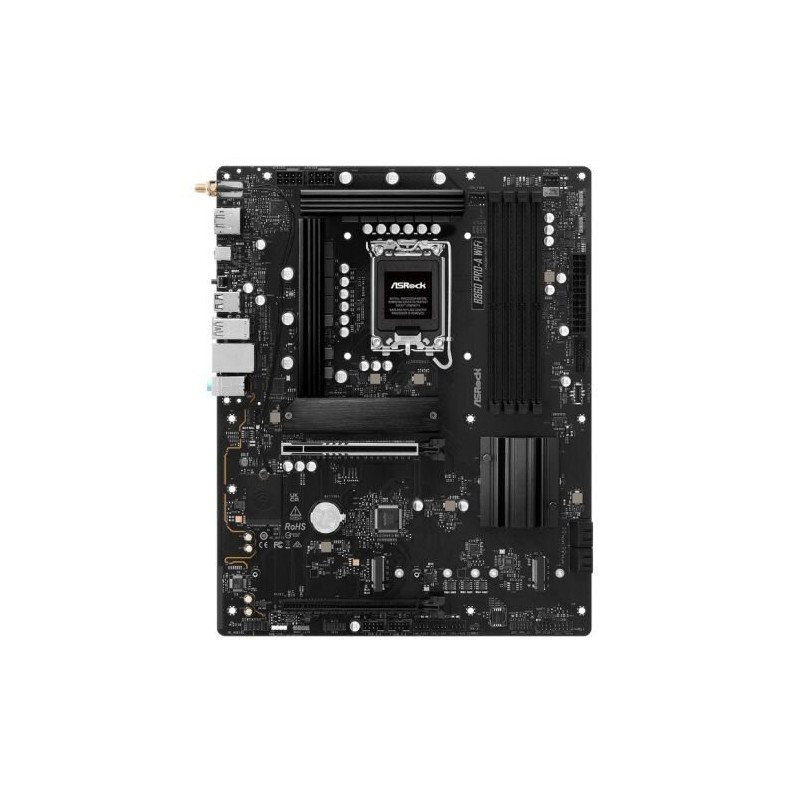

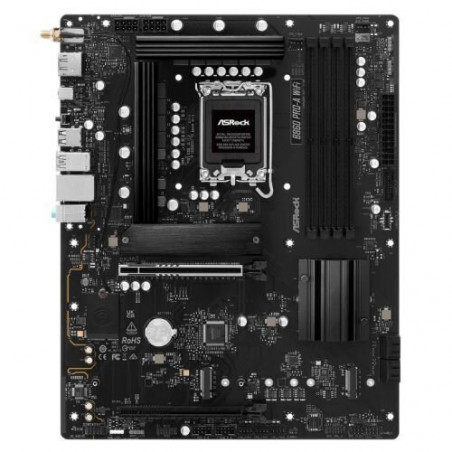

ASRock B860 PRO-A WIFI Motherboard

The ASRock B860 PRO-A WIFI motherboard delivers robust performance and cutting-edge connectivity for discerning PC builders. Ideal for gamers, content creators, and professionals demanding high-speed data transfer and reliable stability, this ATX motherboard boasts a comprehensive feature set designed for seamless integration into high-performance systems. Benefit from future-proof technology and exceptional value with this meticulously engineered platform.

Features

• Supports Intel Core Ultra Processors (Series 2) (LGA1851)
• 10+1+1+1+1 Power Phase Design with Dr.MOS for superior power delivery and overclocking potential.
• Quad-channel DDR5 memory support with speeds up to 8666+ (OC).
• High-speed storage options: One PCIe 5.0 x16 slot, one PCIe 4.0 x16 slot, one blazing-fast PCIe Gen5x4 M.2 slot, and two Hyper M.2 Gen4x4 slots.
• Comprehensive connectivity: Wi-Fi 6E, 2.5G LAN, USB 3.2 Gen2x2 Type-C (rear), USB 3.2 Gen1 Type-C (front), multiple USB 3.2 Gen1 and USB 2.0 ports, HDMI and DisplayPort outputs.
• Advanced cooling solutions: Aluminum heatsinks, PWM/DC fan support, and Fan-Tastic Tuning for optimal thermal management.
• Supports BIOS Flashback for easy BIOS updates.

Specifications

• Chipset: Intel B860
• Socket Type: LGA 1851
• Form Factor: ATX
• Memory: 4 x DDR5 DIMMs, Dual Channel, up to 8666+ (OC)
• PCIe Slots: 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16
• M.2 Slots: 1 x Blazing M.2 (PCIe Gen5x4), 2 x Hyper M.2 (PCIe Gen4x4)
• SATA Ports: 4 x SATA3
• USB Ports: 1 x USB 3.2 Gen2x2 Type-C (Rear), 1 x USB 3.2 Gen1 Type-C (Front), 8 x USB 3.2 Gen1 (6 Rear, 2 Front), 6 x USB 2.0 (2 Rear, 4 Front)
• LAN: Realtek 2.5G LAN
• Wireless: 802.11axe WiFi 6E + Bluetooth
• Audio: Realtek ALC897 7.1 CH HD Audio Codec
• Graphics Output: 1 x HDMI, 1 x DisplayPort
• Other Features: BIOS Flashback, Polychrome RGB, SignalRGB support
