ASROCK B860 Steel Legend WiFi ATX Motherboard with WiFi 6E, 2.5GbE LAN, DDR5

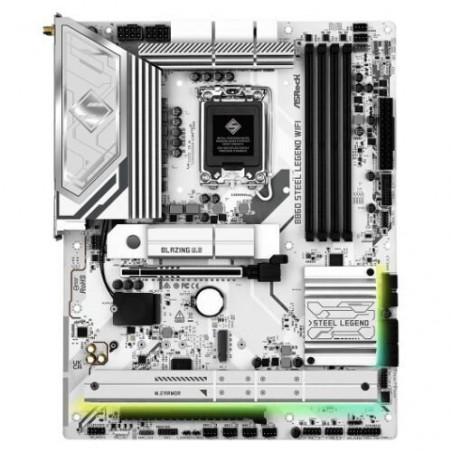

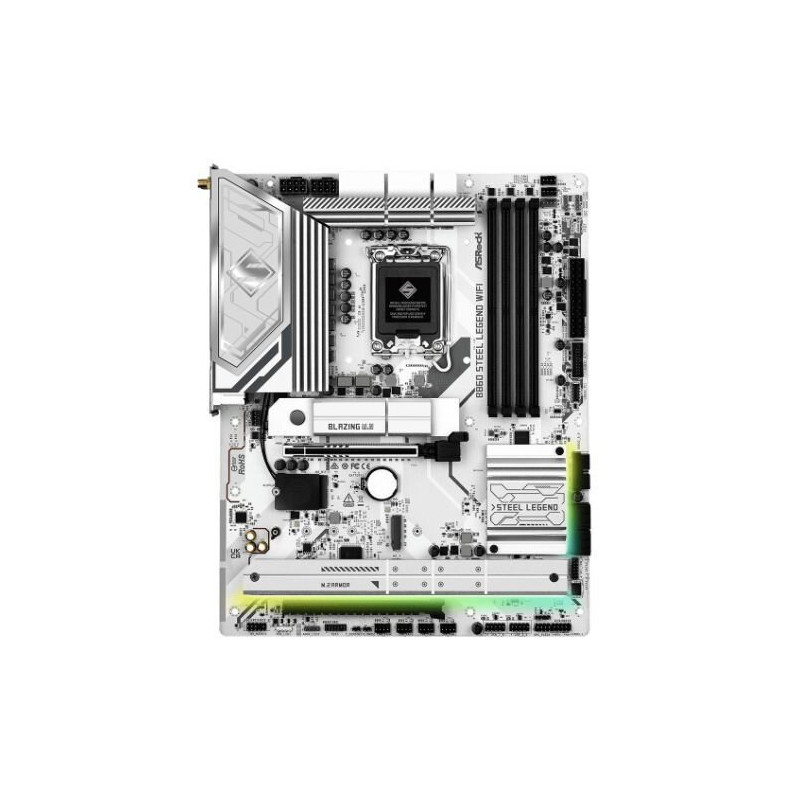

ASRock B860 Steel Legend WiFi

Unleash the full potential of your next-generation Intel Core Ultra processor with the ASRock B860 Steel Legend WiFi motherboard. Designed for discerning PC enthusiasts and demanding workloads, this ATX motherboard delivers exceptional performance, robust connectivity, and a host of cutting-edge features. Whether you're a gamer pushing for the highest frame rates, a content creator demanding seamless workflows, or a professional requiring rock-solid stability, the B860 Steel Legend WiFi provides the foundation you need.

Features

• Supports Intel Core Ultra Processors (Series 2) on LGA 1851 socket
• High-performance 14+1+1+1+1 phase power design with 80A Dr.MOS for superior power delivery and overclocking capabilities.
• Quad-channel DDR5 memory support with speeds up to 8666+ MHz (OC) for blazing-fast system responsiveness.
• Multiple high-speed M.2 slots: one PCIe Gen5 x4, two PCIe Gen4 x4, and one PCIe Gen4 x2, supporting the latest NVMe SSDs.
• Comprehensive connectivity: Thunderbolt 4 Type-C, 2.5G LAN, Wi-Fi 6E, and multiple USB 3.2 Gen 2 ports.
• Advanced thermal design with multiple heatsinks, including a toolless multi-layer M.2 heatsink, ensuring optimal cooling for demanding components.
• High-fidelity audio with Realtek ALC1220 7.1 CH HD Audio Codec and Nahimic Audio for immersive sound experiences.
• User-friendly design with features like BIOS Flashback and a flexible integrated I/O shield.
• Supports Polychrome RGB and SignalRGB for customizable lighting effects.

Specifications

• Chipset: Intel B860
• CPU Socket: LGA 1851
• Memory: 4x DDR5 DIMM slots, Dual Channel, up to 256GB
• PCIe Slots: 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16
• M.2 Slots: 1 x PCIe Gen5 x4, 2 x PCIe Gen4 x4, 1 x PCIe Gen4 x2
• SATA Ports: 4 x SATA3
• USB Ports: 1 x Thunderbolt 4 Type-C (Rear), 1 x USB 3.2 Gen2x2 Type-C (Front), 2 x USB 3.2 Gen2 (Rear), 8 x USB 3.2 Gen1 (4 Rear, 4 Front), 7 x USB 2.0 (3 Rear, 4 Front)
• LAN: Realtek 2.5G LAN
• Wireless: 802.11axe Wi-Fi 6E + Bluetooth
• Audio: Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
• Graphics Output: 1 x HDMI, 1 x DisplayPort, 1 x Thunderbolt 4 Type-C
• Form Factor: ATX
• Other Features: BIOS Flashback, Toolless M.2 Heatsink, Polychrome RGB, SignalRGB
