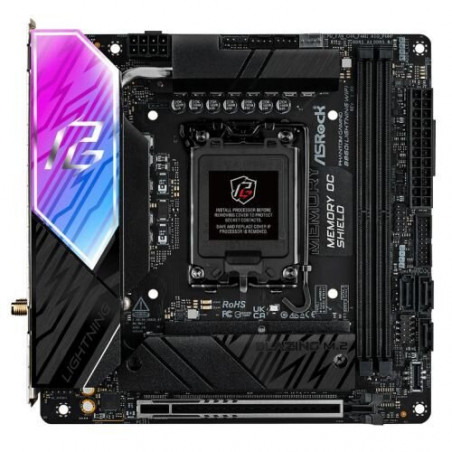

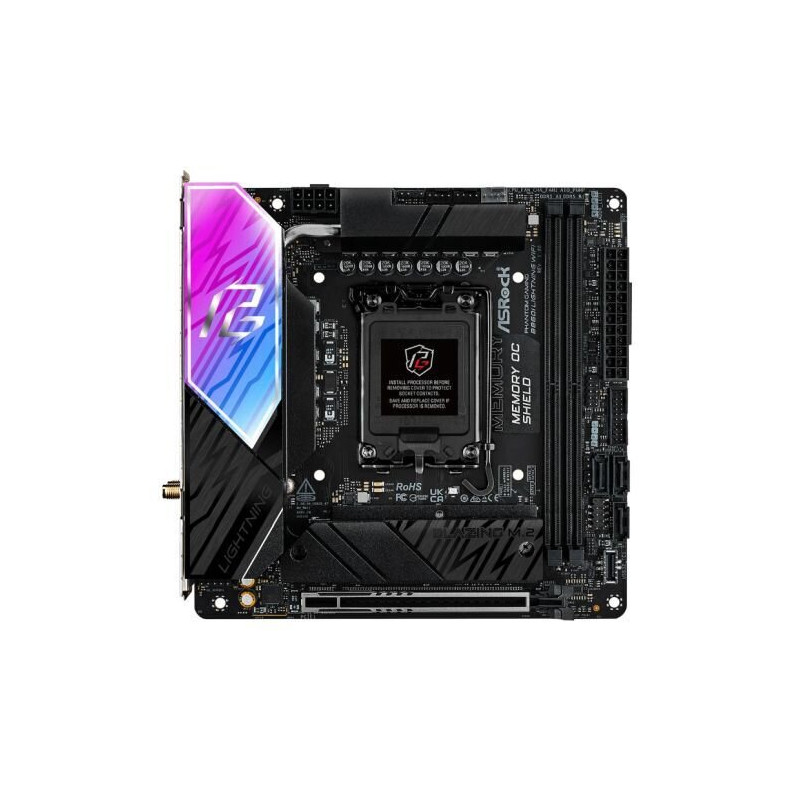

ASROCK B860I LIGHTNING WIFI Mini ITX Motherboard

ASRock B860I LIGHTNING WIFI Mini-ITX Motherboard

Unleash the full potential of your next-generation Intel build with the ASRock B860I LIGHTNING WIFI Mini-ITX motherboard. Designed for discerning PC enthusiasts, gamers, and content creators demanding top-tier performance and cutting-edge features in a compact form factor, this motherboard delivers unparalleled speed, robust power delivery, and extensive connectivity options. Experience blazing-fast PCIe 5.0 support, lightning-quick Wi-Fi 6E, and the convenience of a feature-rich Mini-ITX design.

Features

• Supports Intel Core Ultra Processors (2nd Gen) (LGA1851)
• Exceptional 10+1+1+1+1 Power Phase Design with 110A SPS for superior overclocking and stability
• Dual-channel DDR5 memory support with speeds up to 9333+ MHz (OC)
• Blazing-fast PCIe 5.0 x16 slot and Hyper M.2 (PCIe Gen4 x4) and Blazing M.2 (PCIe Gen5 x4) slots for ultrafast storage
• Thunderbolt™ 4 Type-C port for high-speed data transfer and display connectivity
• High-speed 2.5G LAN and Wi-Fi 6E for seamless network connectivity
• Advanced thermal management solutions including a composite VRM heatsink and Fan-Tastic Tuning
• Immersive Nahimic Audio for superior sound quality
• Polychrome RGB lighting for customizable aesthetics
• Convenient features like BIOS Flashback and Memory OC Shield

Specifications

• Chipset: Intel B860
• Socket: LGA 1851
• Memory: 2 x DDR5 DIMMs, Dual Channel, up to 9333+ MHz (OC)
• PCIe Slots: 1 x PCIe 5.0 x16
• M.2 Slots: 1 x Blazing M.2 (PCIe Gen5 x4), 1 x Hyper M.2 (PCIe Gen4 x4)
• SATA: 3 x SATA3
• USB: 1 x Thunderbolt™ 4 Type-C (Rear), 1 x USB 3.2 Gen2 Type-C (Front), 2 x USB 3.2 Gen2 Type-A (Rear), 6 x USB 3.2 Gen1 (4 Rear, 2 Front), 3 x USB 2.0 (1 Rear, 2 Front)
• LAN: Realtek 2.5G LAN
• Wireless: 802.11axe Wi-Fi 6E + Bluetooth
• Audio: Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
• Graphics Output: 1 x HDMI, 1 x Thunderbolt™ 4 Type-C
• Form Factor: Mini-ITX
• Other Features: BIOS Flashback, Memory OC Shield, Polychrome RGB, SignalRGB Support
