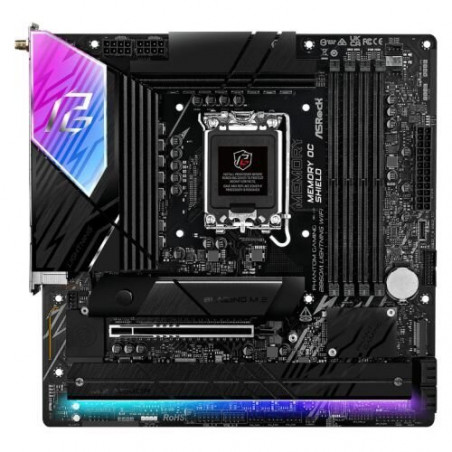

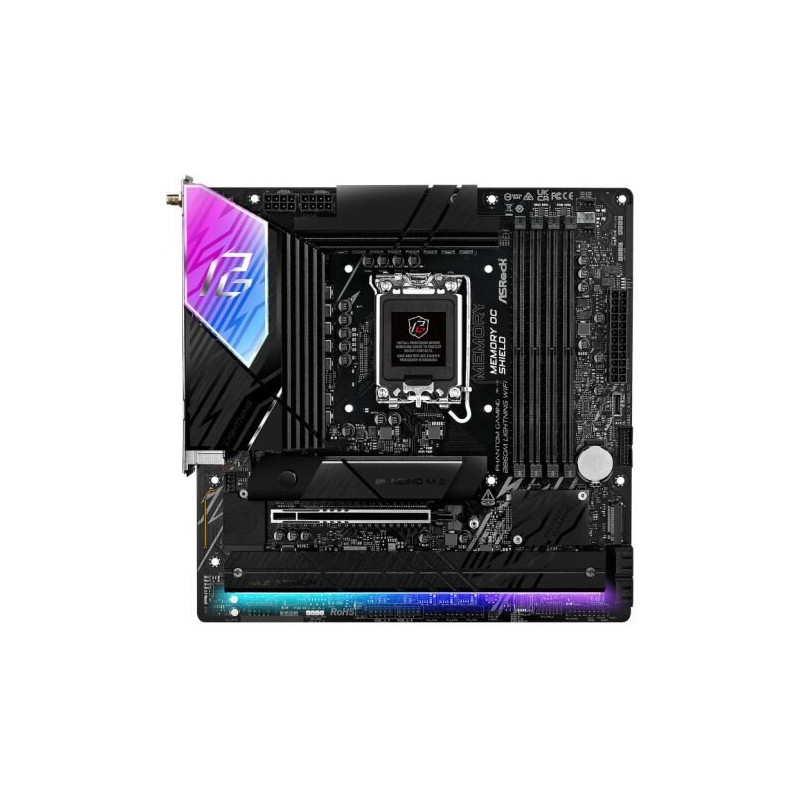

ASRock B860M Lightning WiFi Micro ATX Motherboard

ASRock B860M Lightning WiFi

Unleash the full potential of your next-generation Intel Core Ultra processor with the ASRock B860M Lightning WiFi motherboard. Designed for discerning PC enthusiasts, gamers, and content creators demanding top-tier performance and cutting-edge connectivity, this Micro-ATX powerhouse delivers unparalleled speed and stability. Experience blazing-fast PCIe 5.0 and DDR5 support, coupled with advanced thermal solutions and premium audio, all within a meticulously engineered compact form factor.

Features

• Supports Intel Core Ultra Processors (Series 2) LGA1851
• Robust 12+1+1+1+1 Power Phase Design with 80A SPS for superior power delivery and overclocking headroom.
• Quad-Channel DDR5 support with speeds up to 8666+ MHz (OC) for exceptional memory bandwidth.
• High-speed storage with one PCIe 5.0 x4 M.2 slot and three PCIe 4.0 x4 M.2 slots.
• Next-gen connectivity: Thunderbolt 4, Killer 2.5G LAN, and Wi-Fi 6E for lightning-fast data transfers and seamless networking.
• Premium audio with Realtek ALC1220 7.1 CH HD Audio Codec and Nahimic Audio for immersive sound.
• Advanced thermal design including XXL M.2 heatsinks and a comprehensive heatsink array for optimal cooling.
• User-friendly features like BIOS Flashback and a toolless M.2 heatsink design.
• Stunning aesthetics with Polychrome RGB lighting support.

Specifications

• Chipset: Intel B860
• CPU Socket: LGA 1851
• Memory: 4x DDR5 DIMM slots, Dual Channel, up to 8666+ MHz (OC)
• Expansion Slots: 1x PCIe 5.0 x16
• M.2 Slots: 1x PCIe Gen5 x4, 3x PCIe Gen4 x4
• SATA Ports: 4x SATA3
• USB Ports: 1x Thunderbolt 4 Type-C (Rear), 3x USB 3.2 Gen2 (2 Rear, 1 Front Type-C), 6x USB 3.2 Gen1 (4 Rear, 2 Front), 6x USB 2.0 (2 Rear, 4 Front)
• LAN: Killer 2.5G LAN
• Wireless: 802.11axe Wi-Fi 6E + Bluetooth
• Audio: Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
• Graphics Output: 1x HDMI, 1x DisplayPort, 1x Thunderbolt 4 Type-C
• Form Factor: Micro-ATX
• Other Features: BIOS Flashback, Memory OC Shield, Polychrome RGB
