ASROCK B860M LIVEMIXER WIFI Micro ATX Motherboard

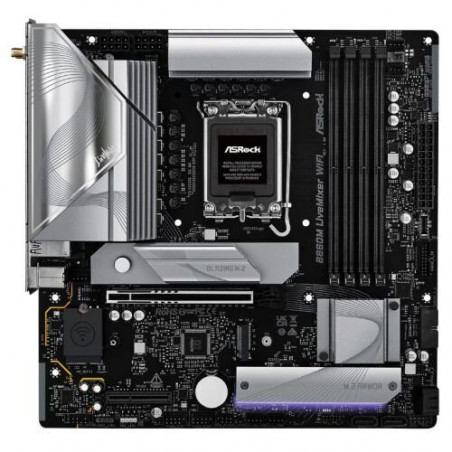

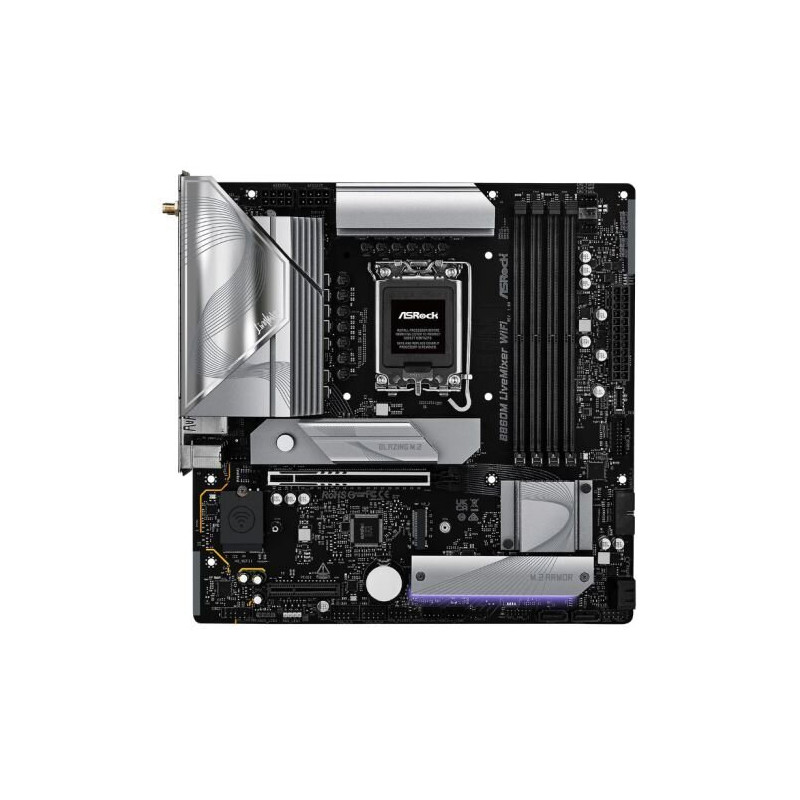

ASRock B860M LIVEMIXER WIFI Motherboard

The ASRock B860M LIVEMIXER WIFI motherboard is engineered for discerning users demanding top-tier performance and connectivity. Designed for content creators, streamers, and demanding professionals, this Micro ATX board delivers exceptional speed, robust features, and future-proof technology to power your most ambitious projects. Benefit from seamless workflows, lightning-fast data transfer speeds, and unparalleled audio quality, all within a compact and easily manageable form factor.

Features

• Supports Intel Core Ultra Processors (Series 2) (LGA1851)
• High-performance 10+1+1+1+1 Power Phase Design with Dr.MOS for superior power delivery and overclocking capabilities.
• Quad-channel DDR5 memory support, up to 8666+ (OC) for blazing-fast system responsiveness.
• Next-gen connectivity with PCIe 5.0 x16 and PCIe 4.0 x4 slots, plus Thunderbolt™ 4 for unparalleled data transfer speeds.
• Exceptional audio with Realtek ALC1220 7.1 CH HD Audio Codec and Nahimic Audio for immersive sound experiences.
• Multiple high-speed M.2 slots (1x PCIe Gen5x4, 2x PCIe Gen4x4) for ultrafast NVMe SSDs.
• Extensive connectivity options including 2.5G LAN, Wi-Fi 6E, and numerous USB ports (including USB 3.2 Gen1 and USB 2.0).
• Advanced thermal management with aluminum heatsinks, PWM/DC fan support, and a thermistor header for precise temperature control.
• User-friendly features like BIOS Flashback and a tool-less M.2 heatsink design.
• Supports Polychrome RGB and SignalRGB for customizable lighting effects.

Specifications

• Chipset: Intel B860
• Socket: LGA 1851
• Form Factor: Micro ATX
• Memory: 4x DDR5 DIMMs, Dual Channel, up to 8666+ (OC)
• PCIe Slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x4
• Graphics Output: 1x HDMI, 1x Thunderbolt™ 4 Type-C
• Audio: Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
• Storage: 4x SATA3, 1x Blazing M.2 (PCIe Gen5x4), 2x Hyper M.2 (PCIe Gen4x4)
• USB: 10x USB 3.2 Gen1 (6 Rear, 4 Front), 10x USB 2.0 (6 Rear, 4 Front), 1x USB 3.2 Gen1 Type-C (Front), 1x Thunderbolt™ 4 Type-C (Rear)
• Networking: Realtek 2.5G LAN, 802.11axe Wi-Fi 6E + Bluetooth
• Other Features: BIOS Flashback, 20K Caps with 1000uF Capacitance, Aluminum Heatsinks, M.2 Heatsink (Tool-less Design), Polychrome RGB, SignalRGB
