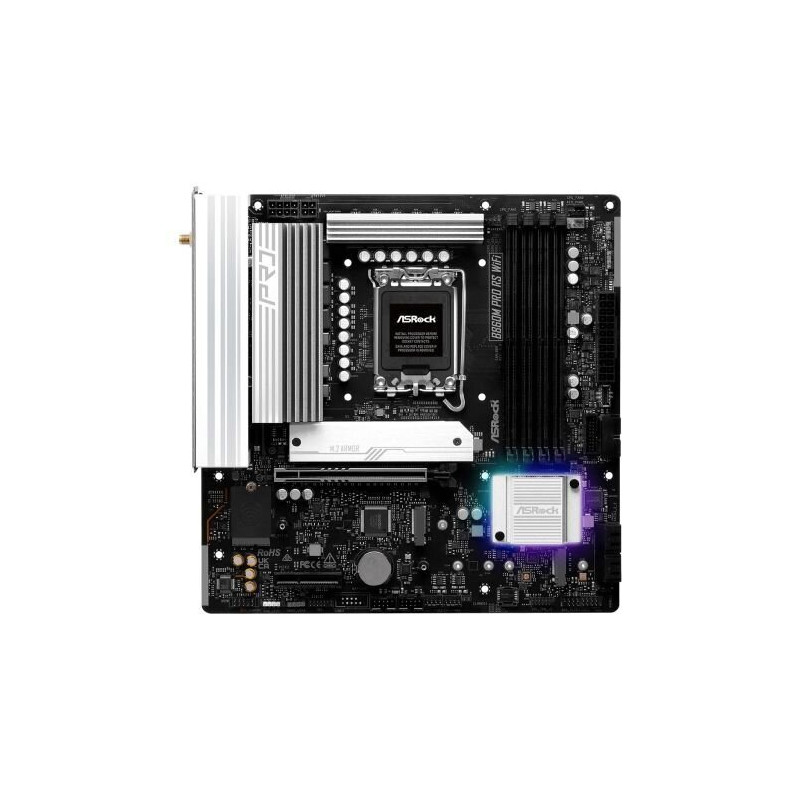

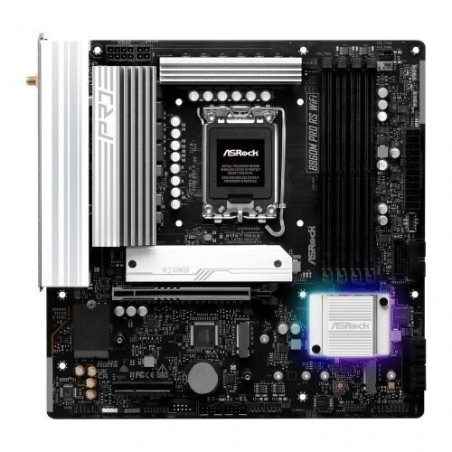

ASROCK B860M PRO RS WIFI Micro ATX Motherboard

ASRock B860M PRO RS WIFI Motherboard

The ASRock B860M PRO RS WIFI motherboard is a high-performance Micro ATX board designed for discerning PC builders seeking a powerful and feature-rich platform. Ideal for gamers, content creators, and enthusiasts, this motherboard delivers exceptional performance, robust connectivity, and cutting-edge features to elevate your PC build to the next level. Benefit from lightning-fast data transfer speeds, advanced cooling solutions, and stunning RGB customization options.

Features

• Supports Intel Core Ultra Processors (Series 2) (LGA1851)
• 10+1+1+1+1 Power Phase Design with Dr.MOS for superior power delivery and overclocking potential.
• Quad-channel DDR5 memory support with speeds up to 8666+ (OC).
• High-speed storage with PCIe 5.0 x4 Blazing M.2 and dual Hyper M.2 (PCIe Gen4x4) slots.
• Next-gen connectivity: Wi-Fi 6E, 2.5G LAN, USB 3.2 Gen2x2 Type-C (20Gbps), and dual graphics outputs (HDMI & DisplayPort).
• Advanced cooling solutions including an M.2 bottom heatsink and PWM/DC fan support with Fan-Tastic Tuning.
• Immersive audio experience with Realtek ALC897 7.1 CH HD Audio Codec and Nahimic Audio.
• Customizable RGB lighting with Polychrome RGB and SignalRGB support.
• User-friendly features like BIOS Flashback and a pre-installed I/O shield.

Specifications

• Chipset: Intel B860
• Socket: LGA 1851
• Form Factor: Micro ATX
• Memory: 4 x DDR5 DIMMs, Dual Channel, up to 8666+ (OC)
• PCIe Slots: 1 PCIe 5.0 x16, 1 PCIe 4.0 x4
• M.2 Slots: 1 Blazing M.2 (PCIe Gen5 x4), 2 Hyper M.2 (PCIe Gen4 x4)
• SATA: 4 SATA3
• USB: 1 USB 3.2 Gen2x2 Type-C (Rear), 1 USB 3.2 Gen1 Type-C (Front), 7 USB 3.2 Gen1 (3 Rear, 4 Front), 6 USB 2.0 (2 Rear, 4 Front)
• LAN: Realtek 2.5G LAN
• Wireless: 802.11axe Wi-Fi 6E + Bluetooth
• Audio: Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
• Graphics Output: 1 HDMI, 1 DisplayPort
• Other Features: BIOS Flashback, M.2 Bottom Heatsink, Polychrome RGB, SignalRGB
