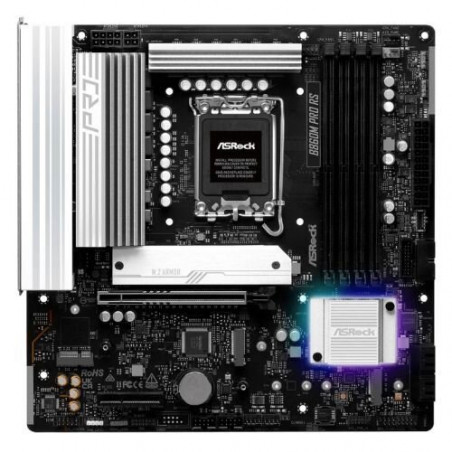

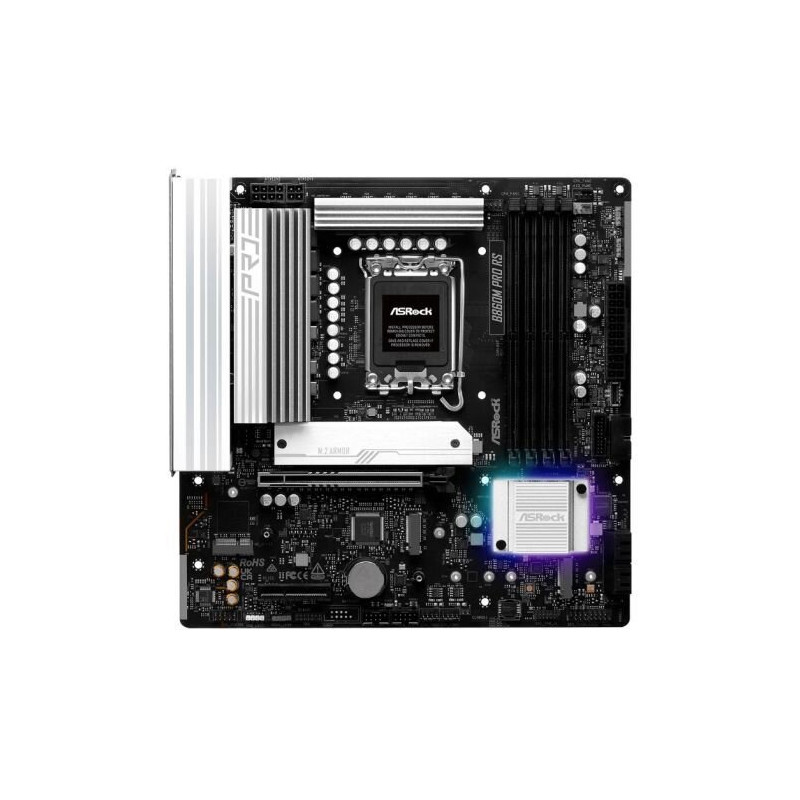

ASROCK B860M PRO RS Micro ATX Motherboard

ASRock B860M PRO RS Motherboard

The ASRock B860M PRO RS motherboard is a high-performance Micro ATX board designed for discerning PC builders seeking a powerful and feature-rich platform. Ideal for gamers, content creators, and professionals demanding top-tier performance and expandability, this motherboard delivers exceptional speed, robust connectivity, and advanced cooling solutions within a compact form factor. Benefit from cutting-edge technology and a user-friendly design, making it the perfect foundation for your next high-end build.

Features

• Supports Intel Core Ultra Processors (Series 2) LGA1851
• Robust 10+1+1+1+1 Power Phase Design with Dr.MOS for superior power delivery and overclocking capabilities.
• Quad-channel DDR5 memory support with speeds up to 8666+ (OC) for blazing-fast performance.
• High-speed storage options: PCIe 5.0 x4 Blazing M.2 slot and dual Hyper M.2 (PCIe Gen4x4) slots.
• Comprehensive connectivity: 2.5G LAN, USB 3.2 Gen2x2 Type-C, multiple USB 3.2 Gen1 and USB 2.0 ports, HDMI and DisplayPort outputs.
• Advanced cooling: M.2 bottom heatsink, aluminum heatsink, PWM/DC fan support, and Fan-Tastic Tuning.
• Enhanced audio: Realtek ALC897 7.1 CH HD Audio Codec with Nahimic Audio for immersive sound.
• RGB lighting support with Polychrome RGB and SignalRGB compatibility.
• User-friendly features: BIOS Flashback, pre-installed I/O shield, and auto driver installer.

Specifications

• Chipset: Intel B860
• Socket: LGA 1851
• Form Factor: Micro ATX
• Memory: 4x DDR5 DIMMs, Dual Channel, up to 8666+ (OC)
• PCIe Slots: 1 PCIe 5.0 x16, 1 PCIe 4.0 x4
• M.2 Slots: 1 Blazing M.2 (PCIe Gen5x4), 2 Hyper M.2 (PCIe Gen4x4), 1 M.2 Key E for WiFi
• SATA3 Ports: 4
• USB Ports: 1 USB 3.2 Gen2x2 Type-C (Rear), 1 USB 3.2 Gen1 Type-C (Front), 7 USB 3.2 Gen1 (3 Rear, 4 Front), 6 USB 2.0 (2 Rear, 4 Front)
• LAN: Realtek 2.5G LAN
• Audio: Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
• Graphics Output: 1 HDMI, 1 DisplayPort
• Other Features: BIOS Flashback, M.2 Bottom Heatsink, Reinforced Steel Slot (PCIe 5.0 Version), Polychrome RGB, SignalRGB
