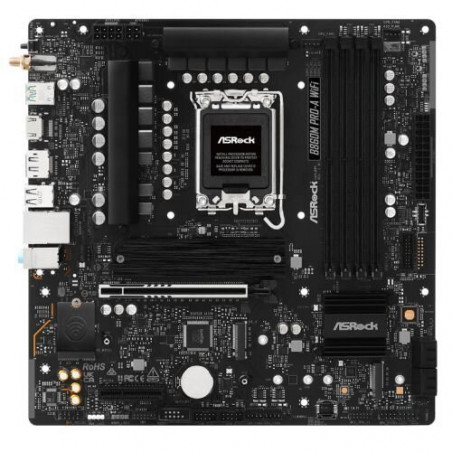

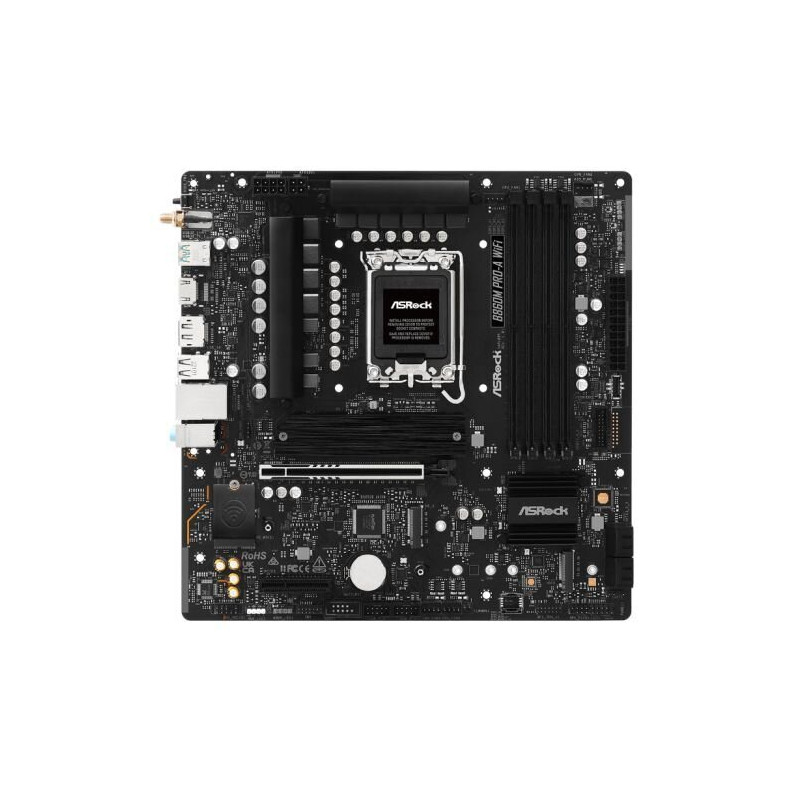

ASROCK B860M PRO-A WIFI Micro ATX Motherboard

ASRock B860M PRO-A WIFI Motherboard

The ASRock B860M PRO-A WIFI motherboard delivers robust performance and cutting-edge connectivity for discerning PC builders. Ideal for demanding applications like gaming, content creation, and professional workloads, this Micro ATX board boasts a feature-rich design without compromising on stability or efficiency. Experience the seamless blend of high-speed connectivity, future-proof expandability, and reliable performance with this exceptional motherboard.

Features

• Supports Intel Core Ultra Processors (Series 2) on LGA1851 socket
• High-performance 10+1+1+1+1 Power Phase Design with Dr.MOS for superior power delivery and overclocking potential.
• Quad-channel DDR5 memory support with speeds up to 8666+ (OC) for blazing-fast system responsiveness.
• Next-gen connectivity with PCIe 5.0 x16 and PCIe 4.0 x4 slots, plus a blazing-fast PCIe Gen5x4 M.2 slot.
• High-speed networking with integrated 2.5G LAN and Wi-Fi 6E for ultra-low latency and high bandwidth.
• Multiple USB ports including USB 3.2 Gen2x2 Type-C (20Gbps) for lightning-fast data transfer.
• Enhanced cooling solutions including aluminum heatsinks and PWM/DC fan support for optimal thermal performance.
• Supports BIOS Flashback for easy BIOS updates without needing a CPU or RAM.

Specifications

• Chipset: Intel B860
• Socket Type: LGA 1851
• Form Factor: Micro ATX
• Memory: 4x DDR5 DIMMs, Dual Channel, up to 8666+ (OC)
• PCIe Slots: 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x4
• M.2 Slots: 1 x PCIe Gen5x4, 2 x PCIe Gen4x4
• SATA Ports: 4 x SATA3
• USB Ports: 1 x USB 3.2 Gen2x2 Type-C (Rear), 1 x USB 3.2 Gen1 Type-C (Front), 3 x USB 3.2 Gen1 (Rear), 2 x USB 3.2 Gen1 (Front), 6 x USB 2.0 (2 Rear, 4 Front)
• LAN: Realtek 2.5G LAN
• Wireless: 802.11axe Wi-Fi 6E + Bluetooth
• Audio: Realtek ALC897 7.1 CH HD Audio Codec
• Graphics Output: 1 x HDMI, 1 x DisplayPort
• Other Features: BIOS Flashback, Polychrome RGB, SignalRGB support
