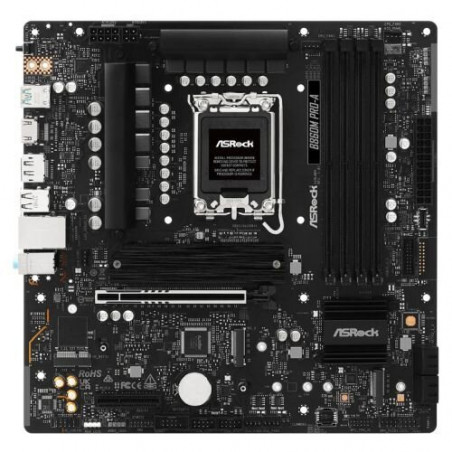

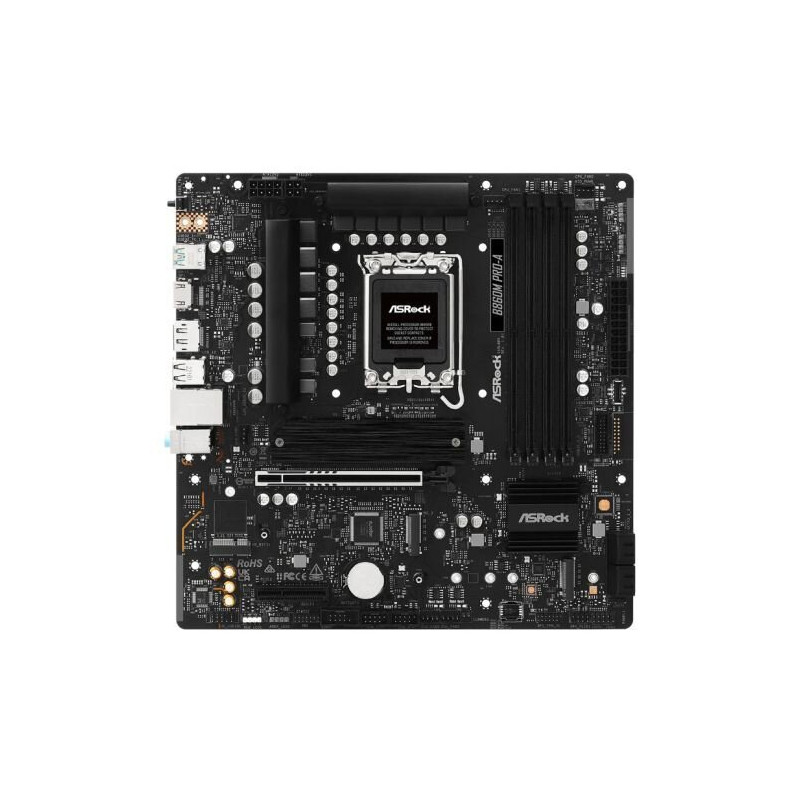

ASROCK B860M PRO-A Micro ATX Motherboard

ASRock B860M PRO-A Motherboard

The ASRock B860M PRO-A Micro ATX motherboard delivers robust performance and extensive connectivity for discerning PC builders. Ideal for enthusiasts, gamers, and content creators demanding high-speed data transfer and reliable stability, this motherboard provides a solid foundation for a powerful and future-proof system. Benefit from its advanced features, including PCIe 5.0 support and high-speed M.2 slots, all within a compact and efficient design.

Features

• Supports Intel Core Ultra Processors (Series 2) LGA 1851
• 10+1+1+1+1 Power Phase Design with Dr.MOS for superior power delivery and overclocking potential
• Quad-channel DDR5 memory support with speeds up to 8666+ (OC)
• Blazing-fast PCIe 5.0 x16 and multiple PCIe 4.0/Gen4 M.2 slots for high-speed storage and expansion
• Dual graphics output (HDMI & DisplayPort) for flexible display configurations
• High-speed 2.5G LAN for enhanced network performance
• USB 3.2 Gen2x2 Type-C (20Gbps) for ultra-fast data transfer
• Comprehensive cooling solutions including aluminum heatsinks and PWM/DC fan support
• Supports BIOS Flashback for easy BIOS updates

Specifications

• Chipset: Intel B860
• Socket: LGA 1851
• Form Factor: Micro ATX
• Memory: 4x DDR5 DIMMs, Dual Channel, up to 8666+ (OC)
• PCIe Slots: 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x4, 1 x M.2 Key E (WiFi)
• M.2 Slots: 1 x Blazing M.2 (PCIe Gen5 x4), 2 x Hyper M.2 (PCIe Gen4 x4)
• SATA: 4 x SATA3
• USB: 1 x USB 3.2 Gen2x2 Type-C (Rear), 1 x USB 3.2 Gen1 Type-C (Front), 5 x USB 3.2 Gen1 (3 Rear, 2 Front), 6 x USB 2.0 (2 Rear, 4 Front)
• LAN: Realtek 2.5G LAN
• Audio: Realtek ALC897 7.1 CH HD Audio Codec
• Graphics Output: 1 x HDMI, 1 x DisplayPort
• Other Features: BIOS Flashback, Aluminum Heatsink, PWM/DC Fan Support, Fan-Tastic Tuning
