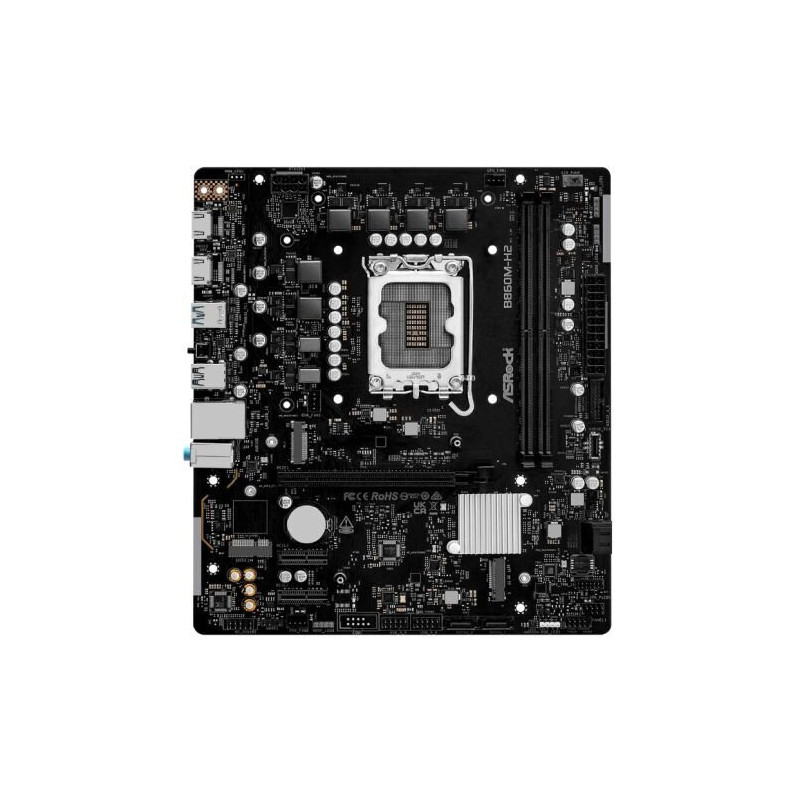

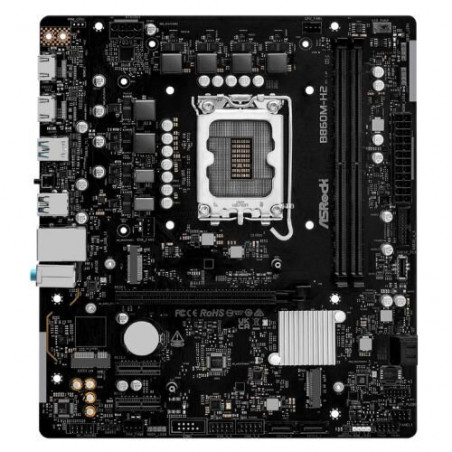

ASROCK B860M-H2 Micro ATX Motherboard

ASRock B860M-H2 Micro ATX Motherboard

The ASRock B860M-H2 is a high-performance Micro ATX motherboard designed for discerning PC builders seeking a robust and feature-rich platform. Ideal for enthusiasts and professionals building systems for demanding tasks, this motherboard offers a compelling blend of speed, connectivity, and ease of use. Benefit from exceptional performance and future-proof your build with its support for the latest Intel processors and high-speed interfaces.

Features

• Supports Intel Core Ultra Processors (Series 2) with LGA1851 socket
• Blazing-fast PCIe Gen5 x4 M.2 slot for ultrafast NVMe SSDs
• Hyper M.2 Gen4 x4 slot for additional high-speed storage
• Dual-channel DDR5 memory support for exceptional bandwidth
• Multiple USB 3.2 Gen1 and Gen2x2 Type-C ports for high-speed peripherals
• Dual HDMI outputs for multi-monitor setups
• Realtek Gigabit LAN for reliable network connectivity
• Supports BIOS Flashback for easy BIOS updates
• 6-layer PCB for enhanced stability and overclocking potential
• Integrated high-definition audio (Realtek ALC897 7.1 CH HD Audio Codec)

Specifications

• Chipset: Intel B860
• Socket Type: LGA 1851
• Form Factor: Micro ATX
• Memory: 2 x DDR5 DIMMs, Dual Channel, up to 8333+ (OC)
• Expansion Slots: 1 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2 Key E for WiFi
• Storage: 1 PCIe Gen5 x4 M.2 (Blazing M.2), 1 PCIe Gen4 x4 M.2 (Hyper M.2), 4 SATA3
• Rear Panel I/O: 1 USB 3.2 Gen2x2 Type-C, 3 USB 3.2 Gen1, 2 USB 2.0, 2 HDMI, Realtek Gigabit LAN, Audio Jacks
• Front Panel I/O: 1 USB 3.2 Gen1 Type-C, 2 USB 3.2 Gen1, 4 USB 2.0
• Audio: Realtek ALC897 7.1 CH HD Audio Codec
• Power Phases: 5+1+1+1+1
• Other Features: BIOS Flashback, Polychrome RGB support, SignalRGB support
