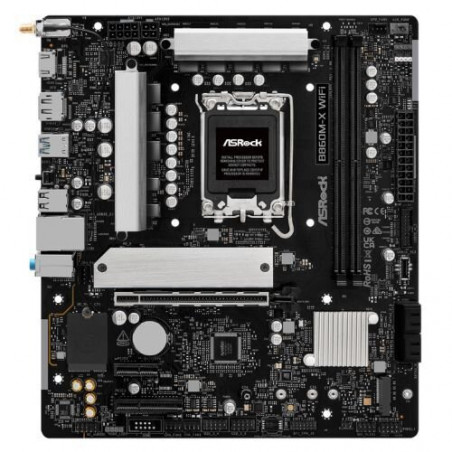

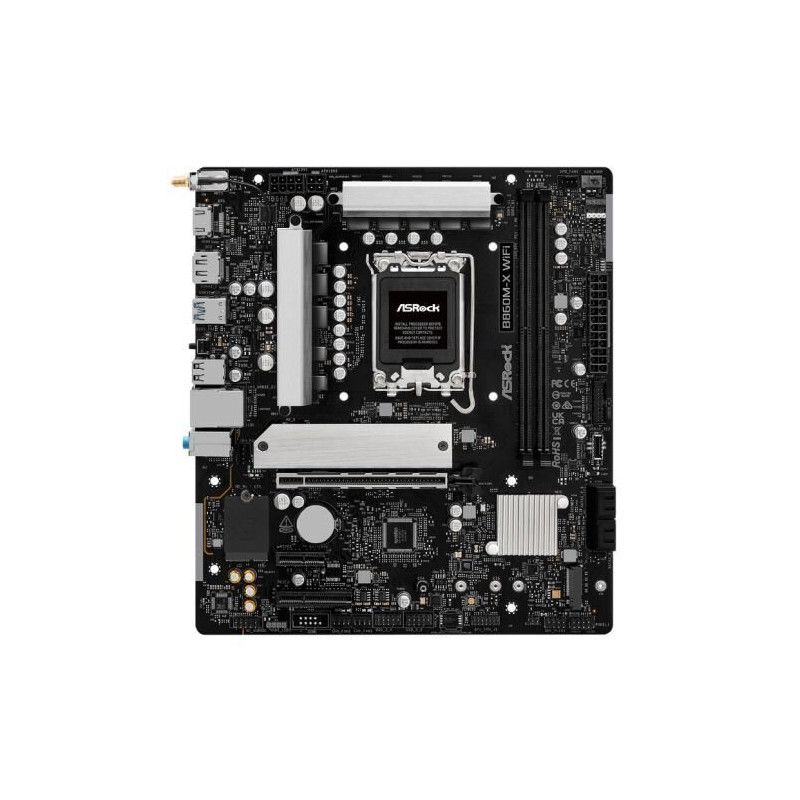

ASROCK B860M-X WIFI Micro ATX Motherboard

ASRock B860M-X WIFI Micro ATX Motherboard

The ASRock B860M-X WIFI motherboard delivers a compelling blend of performance and connectivity, ideal for discerning PC builders seeking a compact yet powerful foundation for their next system. Whether you're a content creator demanding high-speed storage and reliable networking, a gamer prioritizing low latency and smooth frame rates, or a professional needing a stable platform for demanding applications, this Micro ATX motherboard offers a robust and versatile solution.

Features

• Supports Intel Core Ultra Processors (Series 2) on LGA1851 socket
• High-speed connectivity with Wi-Fi 6E and 2.5G LAN
• Dual DDR5 memory support with speeds up to 9066+ (OC)
• Blazing fast storage with PCIe Gen5 x4 and PCIe Gen4 x4 M.2 slots
• Robust power delivery with a 7+1+1+1+1 power phase design
• Comprehensive I/O including USB 3.2 Gen2x2 Type-C, HDMI, and DisplayPort
• Enhanced cooling with aluminum heatsinks and PWM/DC fan support
• Convenient BIOS Flashback feature for easy firmware updates

Specifications

• Chipset: Intel B860
• Socket Type: LGA 1851
• Form Factor: Micro ATX
• Memory: 2 x DDR5 DIMMs, Dual Channel, up to 9066+ (OC)
• Expansion Slots: 1 PCIe 4.0 x16, 1 PCIe 4.0 x4, 1 PCIe 4.0 x1
• Storage: 4 SATA3, 1 Blazing M.2 (PCIe Gen5 x4), 1 Hyper M.2 (PCIe Gen4 x4)
• Graphics Output: 1 HDMI, 1 DisplayPort
• Audio: Realtek ALC897 7.1 CH HD Audio Codec
• Networking: Realtek 2.5G LAN, 802.11axe Wi-Fi 6E + Bluetooth
• USB: 1 USB 3.2 Gen2x2 Type-C (Rear), 1 USB 3.2 Gen1 Type-C (Front), 5 USB 3.2 Gen1 (3 Rear, 2 Front), 6 USB 2.0 (2 Rear, 4 Front)
