ASROCK B860M-X Micro ATX Motherboard

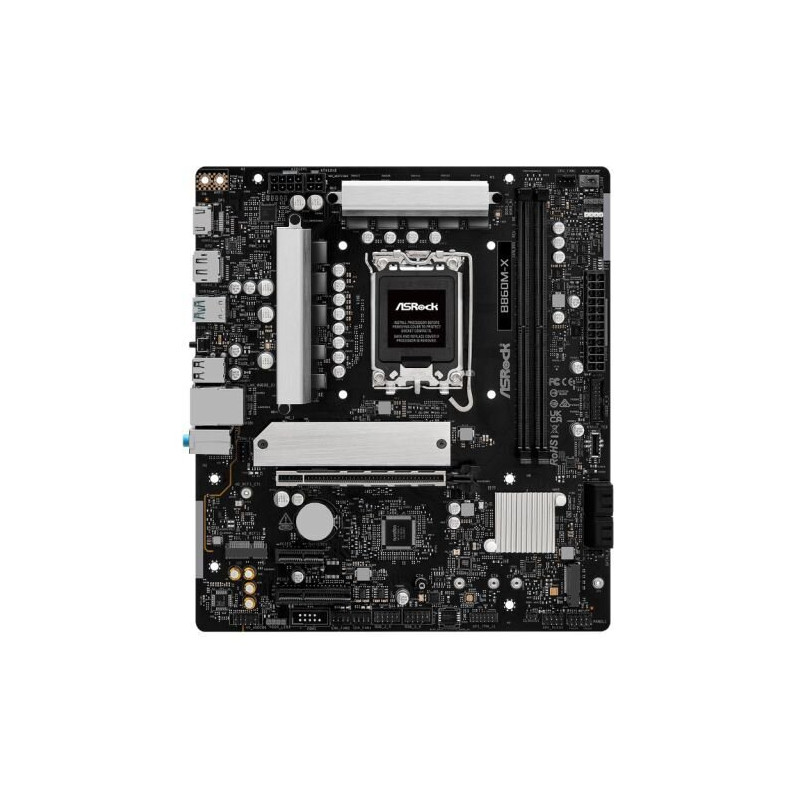

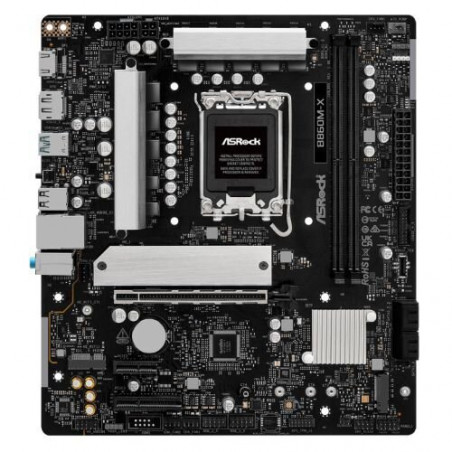

ASRock B860M-X Micro ATX Motherboard

The ASRock B860M-X motherboard delivers a compelling blend of performance and versatility in a compact Micro ATX form factor. Ideal for tech-savvy users, professionals, and enthusiasts building high-performance PCs, this motherboard offers robust features and cutting-edge connectivity without compromising on value. Whether you're a content creator demanding high bandwidth or a gamer seeking low latency, the B860M-X provides a solid foundation for your next build.

Features

• Supports Intel Core Ultra Processors (Series 2) with LGA 1851 socket
• 7+1+1+1+1 Power Phase Design for stable power delivery
• Dual-channel DDR5 memory support, up to 9066+ MHz (OC)
• High-speed M.2 slots: PCIe Gen5 x4 and PCIe Gen4 x4 for ultrafast storage
• Multiple USB ports including USB 3.2 Gen2x2 Type-C (20Gbps) for high-speed connectivity
• 2.5G LAN for enhanced network performance
• Dual graphics output options: HDMI and DisplayPort
• Supports BIOS Flashback for easy BIOS updates
• Advanced cooling solutions including aluminum heatsinks and PWM/DC fan support
• Supports Polychrome RGB and SignalRGB for customizable lighting

Specifications

• Chipset: Intel B860
• Socket Type: LGA 1851
• Form Factor: Micro ATX
• Memory: 2 x DDR5 DIMMs, Dual Channel, up to 9066+ MHz (OC)
• PCIe Slots: 1 x PCIe 4.0 x16, 1 x PCIe 4.0 x4, 1 x PCIe 4.0 x1, 1 x M.2 Key E (WiFi)
• M.2 Slots: 1 x Blazing M.2 (PCIe Gen5 x4), 1 x Hyper M.2 (PCIe Gen4 x4)
• SATA Ports: 4 x SATA3
• USB Ports: 1 x USB 3.2 Gen2x2 Type-C (Rear), 1 x USB 3.2 Gen1 Type-C (Front), 3 x USB 3.2 Gen1 (Rear), 2 x USB 3.2 Gen1 (Front), 6 x USB 2.0 (2 Rear, 4 Front)
• LAN: Realtek 2.5G LAN
• Audio: Realtek ALC897 7.1 CH HD Audio Codec
• Graphics Output: 1 x HDMI, 1 x DisplayPort
• Other Features: BIOS Flashback, Aluminum Heatsink, PWM/DC Fan Support, Fan-Tastic Tuning, Polychrome RGB, SignalRGB
