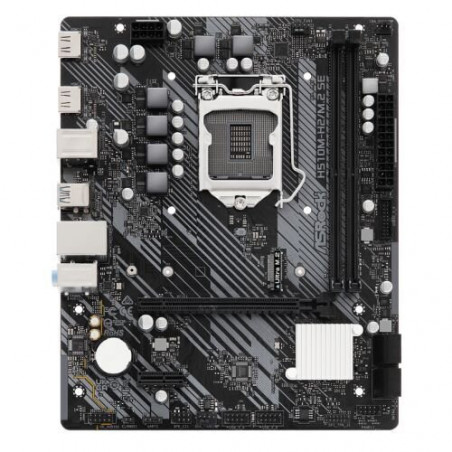

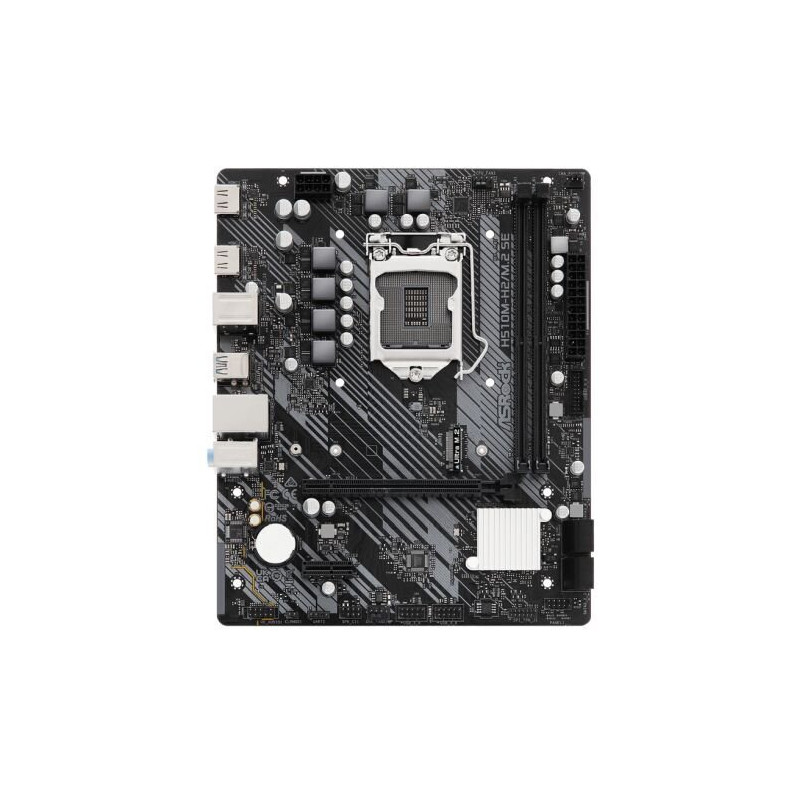

ASROCK H510M-H2/M.2 SE Micro ATX Motherboard

ASRock H510M-H2/M.2 SE Micro ATX Motherboard

The ASRock H510M-H2/M.2 SE motherboard is a cost-effective and reliable solution for building a modern Intel system. Ideal for budget-conscious builders, home users, and those seeking a stable platform for everyday computing tasks, this Micro ATX board delivers impressive performance and connectivity without breaking the bank. Its compact size makes it perfect for smaller form factor builds, while its robust feature set ensures compatibility with a wide range of components.

Features

• Supports 10th and 11th Gen Intel Core Processors (LGA 1200)
• High-speed DDR4 memory support (up to 3200MHz)
• Ultra-fast PCIe Gen3 x4 M.2 slot for NVMe SSDs
• Dual HDMI outputs for multi-monitor setups (supports 4K @ 60Hz)
• Realtek Gigabit LAN for reliable network connectivity
• Integrated 7.1 channel HD audio (Realtek ALC897 codec)
• Multiple USB ports (including USB 3.2 Gen1 and USB 2.0)
• ASRock Auto Driver Installer for simplified setup
• Full Spike Protection for enhanced component longevity
• Dedicated water pump header for advanced cooling solutions

Specifications

• Chipset: Intel H510
• CPU Socket: LGA 1200
• Memory: 2x DDR4 DIMM slots
• Expansion Slots: 1x PCIe 4.0 x16, 1x PCIe 3.0 x1
• Storage: 4x SATA3, 1x Ultra M.2 (PCIe Gen3 x4 & SATA3)
• Rear Panel I/O: 2x HDMI, 6x USB 3.2 Gen1, 2x USB 2.0, 1x Realtek Gigabit LAN, Audio jacks
• Audio Codec: Realtek ALC897 7.1 CH HD Audio Codec
• Form Factor: Micro ATX
• Power Phase Design: 4 Phase
• Other Features: ASRock Auto Driver Installer, Full Spike Protection, Water Pump Header
