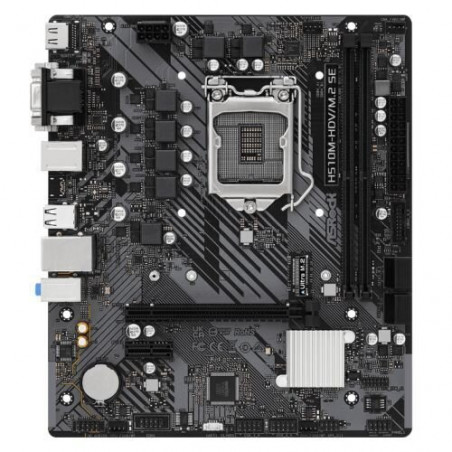

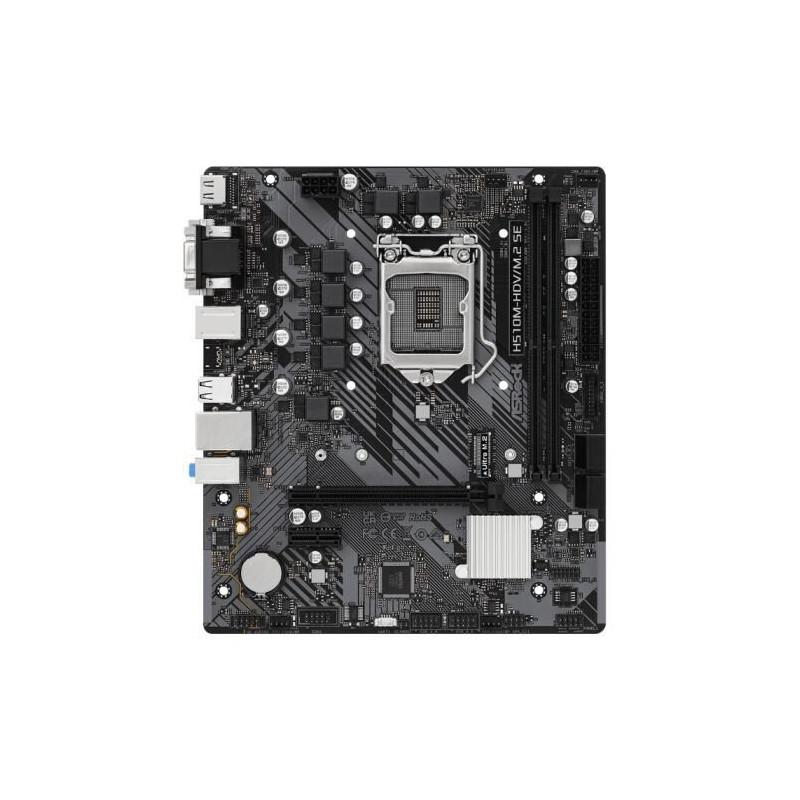

ASROCK H510M-HDV/M.2 SE Micro ATX Motherboard

ASRock H510M-HDV/M.2 SE Micro ATX Motherboard

The ASRock H510M-HDV/M.2 SE motherboard is a cost-effective yet robust solution for building a reliable and efficient PC. Ideal for budget-conscious builders, home users, and those seeking a solid foundation for a productive system, this Micro ATX board delivers impressive performance and connectivity without breaking the bank. Benefit from its compatibility with 10th and 11th Gen Intel Core processors and enjoy the flexibility of multiple expansion options and high-speed storage capabilities.

Features

• Supports 10th and 11th Gen Intel Core Processors (LGA 1200)
• Robust 4+1+1 Power Phase Design for stable power delivery
• High-speed DDR4 memory support up to 2933MHz
• Versatile connectivity with HDMI, DVI-D, and D-Sub video outputs supporting 4K resolution via HDMI
• Ultra-fast PCIe 4.0 x16 and PCIe 3.0 x1 slots for expansion cards
• High-speed storage options: Ultra M.2 slot (PCIe Gen3 x4 & SATA3) supporting up to 32Gb/s transfer speeds, and four SATA3 ports
• Multiple USB 3.2 Gen1 ports (2 front, 4 rear) for convenient peripheral connectivity
• Integrated Realtek Gigabit LAN for reliable network access
• M.2 (Key E) slot for optional 802.11ac Wi-Fi connectivity (module not included)
• Premium features including Sapphire Black PCB, High Density Glass Fabric PCB, and ASRock's Full Spike Protection
• Convenient ASRock Auto Driver Installer for easy setup
• Dedicated water pump header for efficient cooling solutions
• High-quality audio with Realtek ALC897 7.1 CH HD Audio Codec

Specifications

• Brand: ASRock
• MPN: H510M-HDV/M.2 SE
• EAN: 4710483943126
• Chipset: Intel H510
• Socket Type: LGA 1200
• Form Factor: Micro ATX
• Memory Support: 2x DDR4
• Max Memory Speed: 2933MHz*
• PCIe Slots: 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1
• Storage: 4 x SATA3, 1 x Ultra M.2 (PCIe Gen3 x4 & SATA3)
• USB: 6 x USB 3.2 Gen1
• Audio: Realtek ALC897 7.1 CH HD Audio Codec
• LAN: Realtek Gigabit LAN
• Video Outputs: HDMI, DVI-D, D-Sub

*Memory speed may vary depending on CPU and system configuration.
