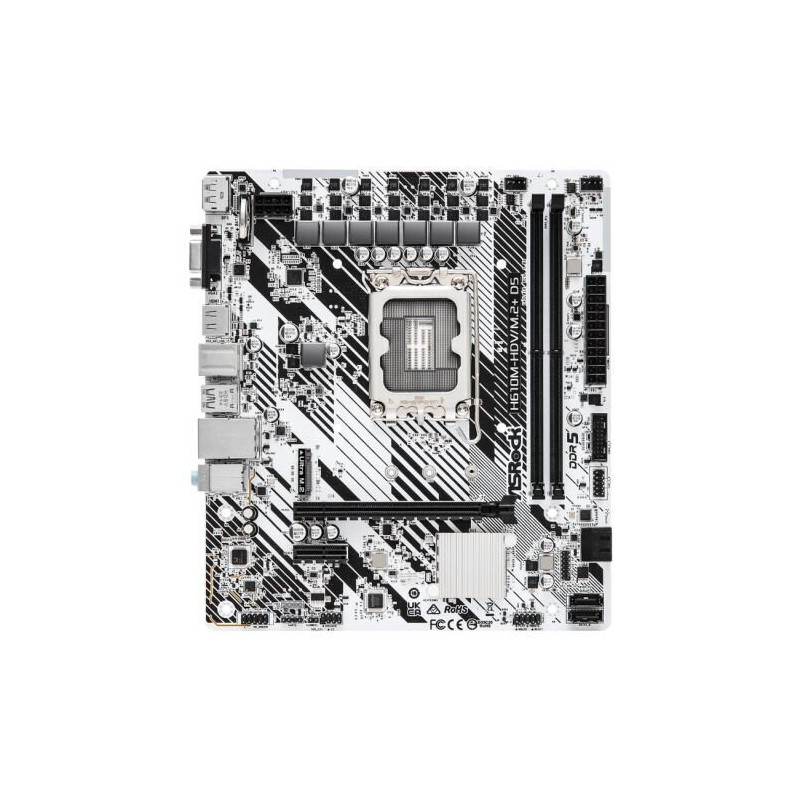

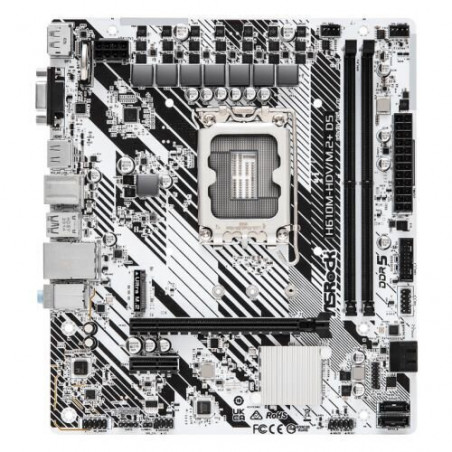

ASROCK H610M-HDV/M.2+ D5 Micro ATX Motherboard

ASROCK H610M-HDV/M.2+ D5 Motherboard

The ASROCK H610M-HDV/M.2+ D5 motherboard is a robust and versatile Micro-ATX solution ideal for budget-conscious builders seeking a reliable platform for 12th and 13th Gen Intel Core processors. This motherboard offers a compelling blend of performance, expandability, and modern features, making it perfect for everyday computing, gaming, and light content creation. Its efficient power delivery and support for high-speed DDR5 memory ensure smooth operation, while its extensive connectivity options provide ample flexibility for peripherals.

Features

• Supports 12th and 13th Gen Intel Core Processors (LGA 1700)
• Dual-channel DDR5 memory support (up to 5600MHz*)
• High-speed PCIe 4.0 x16 and PCIe 3.0 x1 slots
• Ultra-fast M.2 slot (PCIe Gen3 x4, up to 32Gb/s)
• Versatile connectivity: HDMI, DisplayPort, and D-Sub video outputs; USB 3.2 Gen1 Type-C and multiple USB 3.2 Gen1 and USB 2.0 ports
• High-definition 7.1 channel audio (Realtek ALC897 codec)
• Gigabit Ethernet (Realtek 8111H)
• Robust 6+1+1 power phase design for stable power delivery
• Addressable RGB header for customizable lighting effects
• ASRock Auto Driver Installer for simplified driver installation

Specifications

• Chipset: Intel H610
• CPU Socket: LGA 1700
• Memory: 2x DDR5 DIMM slots, up to 96GB capacity
• Expansion Slots: 1x PCIe 4.0 x16, 1x PCIe 3.0 x1
• Storage: 1x Ultra M.2 (PCIe Gen3 x4), 4x SATA3 6.0 Gb/s
• Rear Panel I/O: 1x PS/2, 1x D-Sub, 1x HDMI, 1x DisplayPort, 1x USB 3.2 Gen1 Type-C, 1x USB 3.2 Gen1 Type-A, 4x USB 2.0, 1x RJ-45 LAN, HD Audio jacks
• Internal Connectors: 1x USB 2.0 header, 1x USB 3.2 Gen1 header, 1x Addressable RGB header, CPU fan connector, chassis/water pump fan connector, 24-pin ATX power connector, 8-pin 12V power connector, front panel audio connector
• Audio Codec: Realtek ALC897 7.1 CH HD Audio
• LAN: Realtek Gigabit LAN
• Form Factor: Micro-ATX (22.0cm x 19.3cm)
• BIOS: 128Mb AMI UEFI
• Supported Operating Systems: Microsoft Windows 10 64-bit / 11 64-bit

*Maximum memory speed may vary depending on the CPU used.
