ASROCK WRX90 WS EVO Workstation Motherboard

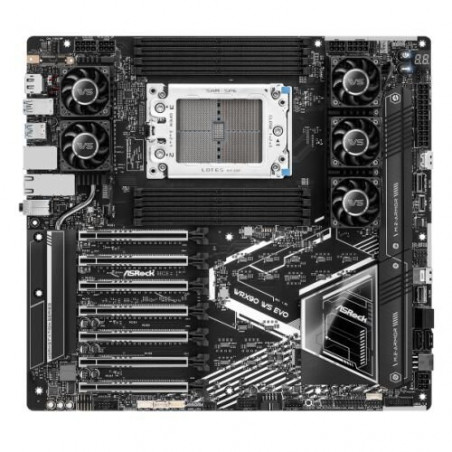

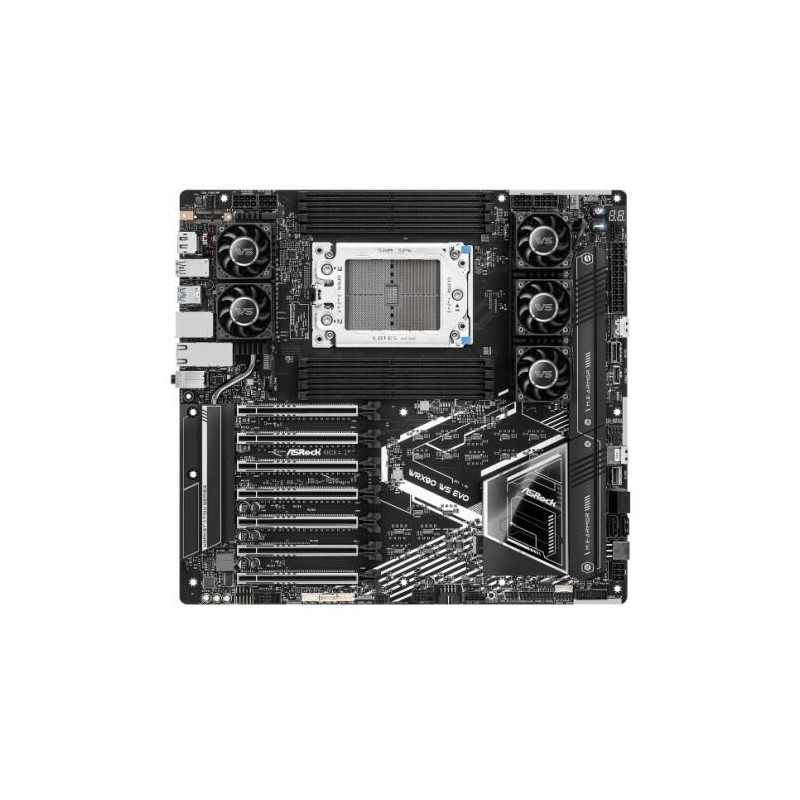

ASRock WRX90 WS EVO Motherboard

The ASRock WRX90 WS EVO is a high-end workstation motherboard designed for demanding professionals and enthusiasts requiring unparalleled performance and expandability. Built for serious workloads in fields like content creation, deep learning, and scientific computing, this motherboard delivers exceptional speed, reliability, and robust connectivity. Its extensive feature set caters to users who need the absolute best in workstation technology.

Features

• Supports AMD Ryzen Threadripper PRO Processors for ultimate multi-core performance.
• Robust 18+3+3 power phase design with 110A SPS for VCore, ensuring stable power delivery under heavy loads.
• Supports 8 DIMMs of DDR5 ECC Registered memory, providing up to 2TB of capacity and error correction for mission-critical stability.
• Seven PCIe 5.0 x16 slots, offering exceptional bandwidth for multiple high-end graphics cards or expansion cards.
• Dual Intel X710 10GbE LAN ports for blazing-fast network connectivity.
• High-speed storage options including PCIe Gen5 x4 and Gen4 x4 M.2 slots, plus SlimSAS connectors for extensive storage expansion.
• Comprehensive USB connectivity, including USB4 Type-C ports for high-speed data transfer and power delivery.
• Premium 14-layer 2oz copper PCB for enhanced signal integrity and thermal performance.
• Advanced cooling solutions including a composite VRM heatsink with active cooling fans.
• Integrated Nahimic Audio for immersive sound and enhanced communication quality.
• Aspeed AST2600 BMC controller for remote management via IPMI.

Specifications

• Chipset: AMD WRX90
• Socket: sTR5
• Memory: 8 x DDR5 ECC Registered DIMM slots
• PCIe Slots: 7 x PCIe 5.0 x16
• M.2 Slots: 1 x PCIe Gen5 x4, 1 x PCIe Gen4 x4
• SATA Ports: 4 x SATA3
• SlimSAS Connectors: 2 x SFF-8654 (one PCIe Gen4 x4, one PCIe Gen4 x4/4 SATA3)
• MCIO Connectors: 2 x (PCIe Gen5 x4/4 SATA3)
• USB Ports: 2 x USB4 Type-C (Rear), 1 x USB 3.2 Gen2x2 Type-C (Front), 4 x USB 3.2 Gen2 Type-A (Rear), 4 x USB 3.2 Gen1 (2 Rear, 2 Front), 4 x USB 2.0 (4 Front)
• LAN: Intel X710 dual 10G LAN, 1 Dedicated IPMI LAN
• Audio: Realtek ALC1220 7.1 CH HD Audio, Nahimic Audio
• Other Features: Polychrome RGB, Multi PSU Adaptor Cable support
