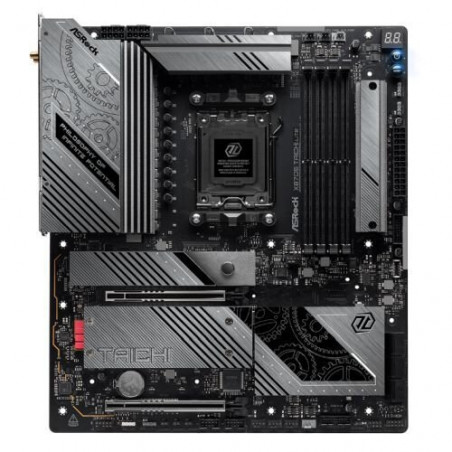

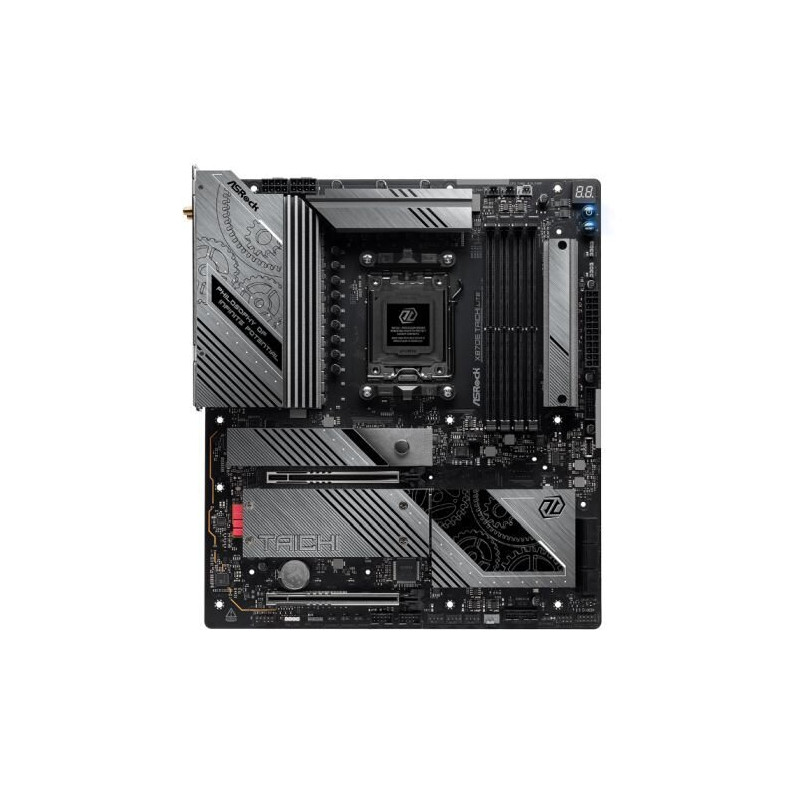

ASROCK X870E TAICHI LITE AM5 EATX Motherboard

ASRock X870E TAICHI LITE Motherboard

The ASRock X870E TAICHI LITE motherboard is a high-performance E-ATX solution designed for discerning PC enthusiasts and demanding workloads. Whether you're a serious gamer pushing the boundaries of frame rates, a content creator demanding seamless workflow, or a professional requiring rock-solid stability, this motherboard delivers the power and features to exceed expectations. Built with premium components and cutting-edge technology, the TAICHI LITE offers unparalleled performance and expandability within a meticulously engineered design.

Features

• AMD AM5 Socket: Supports Ryzen 9000, 8000, and 7000 series processors.
• Robust Power Delivery: 24+2+1 phase power design with 110A Smart Power Stages (SPS) for exceptional overclocking headroom and stability.
• High-Speed Memory: Quad-channel DDR5 support with speeds up to 8200+ (OC) for blazing-fast system responsiveness.
• Next-Gen Connectivity: Dual PCIe 5.0 x16 slots, multiple M.2 slots (including one PCIe Gen5 x4), and multiple USB4 Type-C ports (including a front panel header).
• High-Fidelity Audio: Premium audio components including the ESS SABRE9219 DAC and Nahimic Audio for immersive sound.
• Blazing-Fast Networking: Integrated 5G LAN and Wi-Fi 7 for ultra-low latency and high-bandwidth connectivity.
• Advanced Cooling: Comprehensive cooling solutions including multiple fan headers, thermistor support, and a large M.2 heatsink.
• Premium Build Quality: 8-layer 2oz copper PCB for enhanced signal integrity and durability.

Specifications

• Chipset: AMD X870E
• Socket: AMD AM5
• Memory: 4x DDR5 DIMM slots, Dual Channel, up to 256GB, Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC), XMP & EXPO support
• PCIe Slots: 2 x PCIe 5.0 x16 (x16 or x8/x8), 1 x PCIe 5.0 M.2 (Blazing M.2, Key M, 2280, PCIe Gen5x4), 3 x PCIe Gen4x4 M.2 (Hyper M.2, Key M, 2280), 1 x M.2 Key E (for WiFi/BT module)
• Storage: 6 x SATA3 6.0 Gb/s
• USB: 2 x USB4 Type-C (Rear), 1 x USB 3.2 Gen2x2 Type-C (Front), 5 x USB 3.2 Gen2 Type-A (Rear), 7 x USB 3.2 Gen1 (3 Rear, 4 Front), 6 x USB 2.0 (2 Rear, 4 Front)
• LAN: 5G LAN (Realtek RTL8126)
• Wireless: 802.11be Wi-Fi 7 + Bluetooth 5.4
• Audio: Realtek ALC4082 5.1 CH HD Audio Codec, ESS SABRE9219 DAC, WIMA Audio Caps, Nahimic Audio
• Graphics Output: 1 x HDMI 2.1, 2 x USB4 Type-C
• Form Factor: E-ATX
• Other Features: BIOS Flashback, ARGB Splitter Cable, Polychrome RGB, Reinforced Steel PCIe 5.0 Slot, Toolless M.2 Heatsink, M.2 Bottom Heatsink, ASRock Auto Driver Installer
