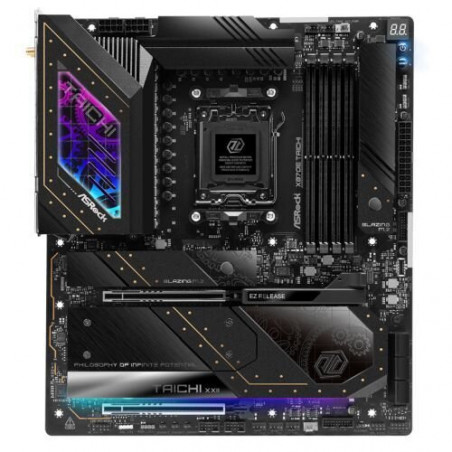

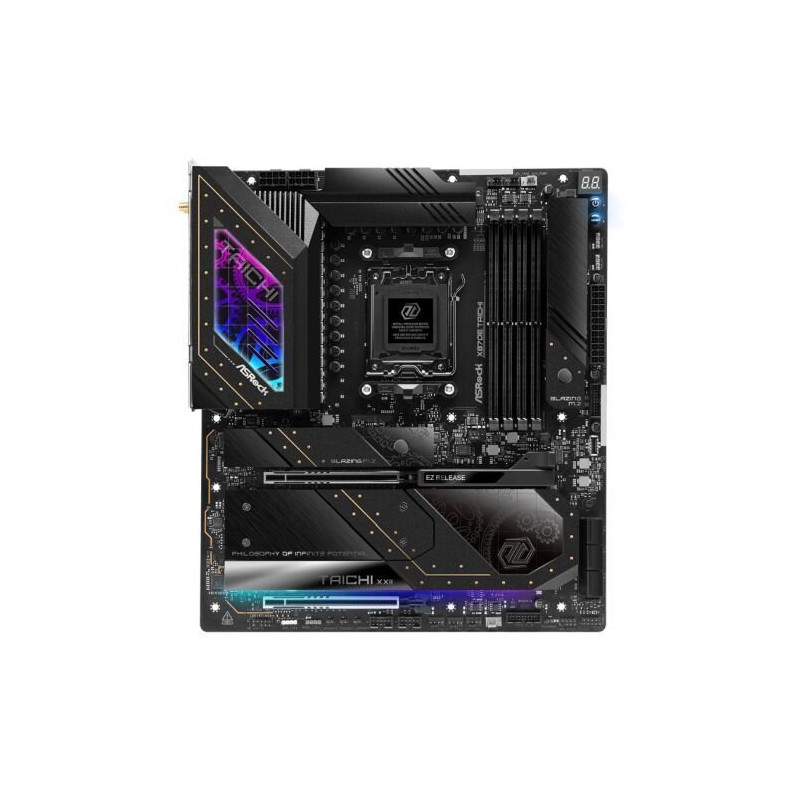

ASROCK X870E TAICHI AM5 EATX Motherboard

ASROCK X870E TAICHI Motherboard

The ASROCK X870E TAICHI motherboard is a high-end E-ATX platform designed for discerning PC enthusiasts and demanding workloads. Boasting cutting-edge connectivity, robust power delivery, and a feature set tailored for maximum performance, this motherboard is the ideal foundation for high-end gaming rigs, content creation workstations, and other high-performance systems. Experience unparalleled speed and stability with the X870E TAICHI.

Features

• Supports AMD Ryzen™ 9000, 8000, and 7000 Series Processors
• Exceptional 24+2+1 Phase Power Design with 110A Smart Power Stages (SPS) for superior overclocking and stability
• Quad-channel DDR5 memory support with speeds up to 8200+ MHz (OC)
• Dual PCIe 5.0 x16 slots for next-generation graphics cards
• Blazing-fast PCIe Gen5 x4 M.2 slot and three PCIe Gen4 x4 M.2 slots for NVMe SSDs
• Two rear USB4 Type-C ports offering 40Gbps data transfer speeds
• High-fidelity audio with Realtek ALC4082 codec, ESS SABRE9219 DAC, and WIMA audio capacitors
• Integrated Wi-Fi 7 802.11be and 5G LAN for ultimate network connectivity
• Extensive cooling solutions including a large VRM heatsink, multiple M.2 heatsinks, and comprehensive fan control
• DIY-friendly design with features like easy graphics card release and tool-less M.2 heatsink installation
• Polychrome RGB lighting for customizable aesthetics

Specifications

• Chipset: AMD X870E
• Socket: AM5
• Form Factor: EATX
• Memory: 4x DDR5 DIMM slots, Dual Channel, up to 256GB
• PCIe Slots: 2 x PCIe 5.0 x16 (x16/x8 configuration dependent on CPU), 1 x PCIe x1
• M.2 Slots: 1 x PCIe Gen5 x4, 3 x PCIe Gen4 x4
• SATA Ports: 6 x SATA3 6.0 Gb/s
• USB Ports: 2 x USB4 Type-C (Rear), 1 x USB 3.2 Gen2x2 Type-C (Front), 5 x USB 3.2 Gen2 Type-A (Rear), 7 x USB 3.2 Gen1 (3 Rear, 4 Front)
• LAN: Realtek 5G LAN
• Wi-Fi: 802.11be Wi-Fi 7 + Bluetooth 5.4
• Audio: Realtek ALC4082 5.1 CH HD Audio Codec, ESS SABRE9219 DAC, WIMA Audio Caps
• Other Features: BIOS Flashback, ASRock Auto Driver Installer, Polychrome RGB, Graphics Card EZ Release, Tool-less M.2 Heatsink
