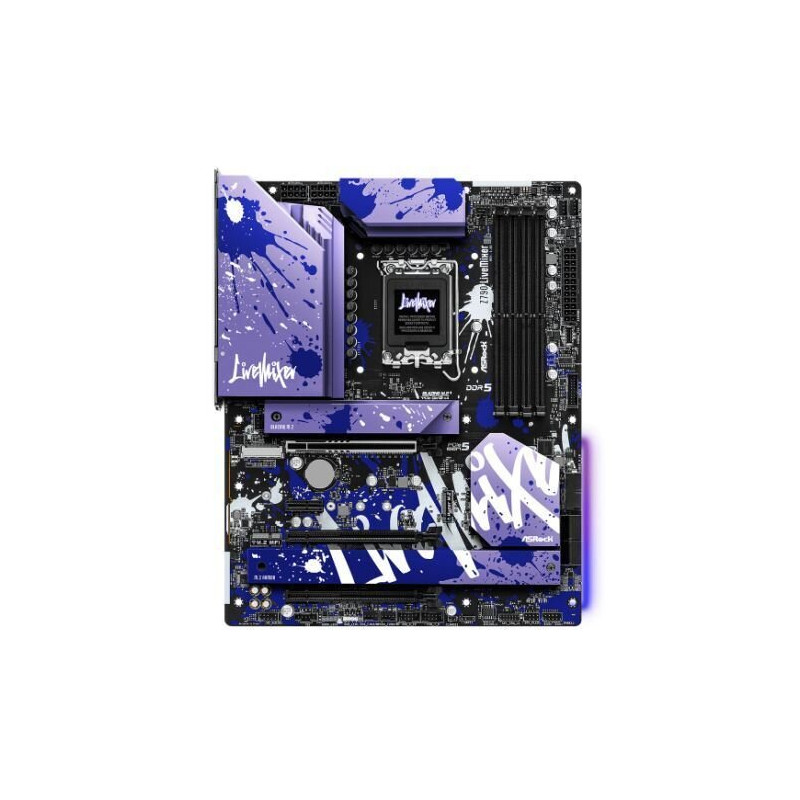

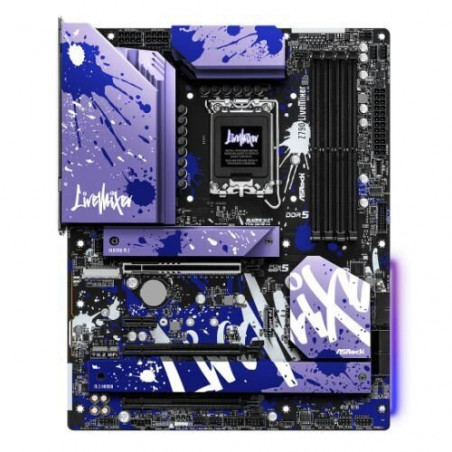

ASROCK Z790 LIVEMIXER ATX Motherboard

ASRock Z790 LIVEMIXER Motherboard

The ASRock Z790 LIVEMIXER motherboard is engineered for demanding content creators and streamers who require unparalleled connectivity and robust performance. This ATX motherboard boasts extensive I/O options, lightning-fast data transfer speeds, and a power delivery system designed to handle the most intensive workloads. Whether you're live-streaming, video editing, or gaming, the Z790 LIVEMIXER delivers the stability and power you need to excel.

Features

• Supports 13th and 12th Gen Intel Core Processors
• Robust 14+1+1 Phase Power Design with Smart Power Stage (SPS) for VCore+GT
• Quad-Channel DDR5 Memory Support (up to 6800+ MHz OC)
• Blazing-fast PCIe 5.0 x16 slot and multiple PCIe 4.0/3.0 slots
• Extensive M.2 Connectivity: One PCIe Gen5 x4, four PCIe Gen4 x4, and SATA support
• Multiple Display Outputs: HDMI, DisplayPort, and eDP
• High-Definition Audio with Nahimic Audio Enhancement
• Realtek 2.5G LAN for high-speed networking
• Abundant USB Connectivity: Including USB 3.2 Gen2x2 Type-C, USB 3.2 Gen2 Type-C/A, and numerous USB 3.2 Gen1 and 2.0 ports
• Polychrome Sync RGB Lighting for customizable aesthetics

Specifications

• Chipset: Intel Z790
• Socket: LGA 1700
• Form Factor: ATX
• Memory: 4 x DDR5 DIMM slots, up to 128GB capacity
• PCIe Slots: 1 x PCIe 5.0 x16, 2 x PCIe 4.0 x16, 1 x PCIe 3.0 x1, 1 x M.2 Key-E for WiFi
• M.2 Slots: 1 x PCIe Gen5 x4, 4 x PCIe Gen4 x4, support for SATA drives
• SATA Ports: 4 x SATA3
• USB Ports: 1 x USB 3.2 Gen2x2 Type-C (Front), 2 x USB 3.2 Gen2 Type-C (Rear), 2 x USB 3.2 Gen2 Type-A (Rear), 8 x USB 3.2 Gen1 (4 Rear, 4 Front), 10 x USB 2.0 (6 Rear, 4 Front)
• LAN: Realtek 2.5G LAN
• Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
• Video Outputs: 1 x HDMI, 1 x DisplayPort, 1 x eDP
