ASROCK Z790 PRO RS ATX Motherboard with DDR5, PCIe 5.0, 2.5GbE LAN, M.2

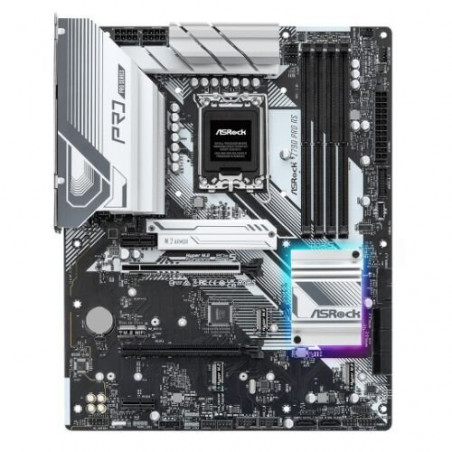

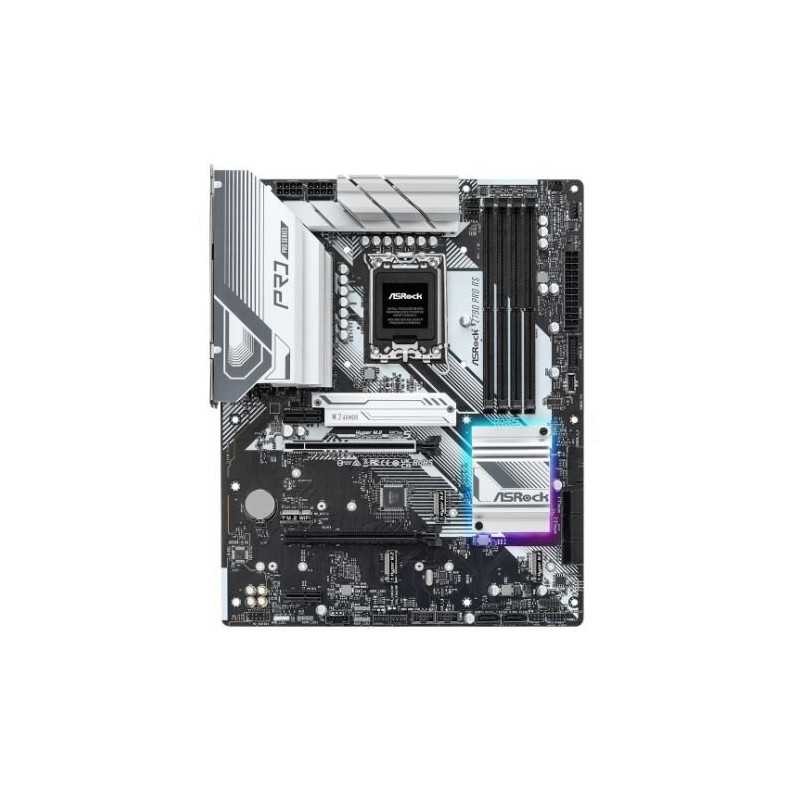

ASROCK Z790 PRO RS Motherboard

The ASROCK Z790 PRO RS motherboard is engineered for the discerning PC enthusiast seeking a robust and feature-rich platform for high-performance computing. Whether you're a dedicated gamer pushing the boundaries of frame rates, a content creator demanding seamless workflow, or a professional requiring unwavering stability, this motherboard delivers the power and connectivity you need. Built with premium components and cutting-edge technology, the Z790 PRO RS provides a solid foundation for your next-generation system.

Features

• Supports 13th and 12th Gen Intel Core Processors (LGA 1700)
• Robust 14+1+1 Phase Power Design with Dr.MOS for superior power delivery and overclocking potential.
• Quad-channel DDR5 memory support with speeds up to 6800+ (OC), enabling exceptional memory bandwidth.
• High-speed connectivity with PCIe 5.0 x16 slot, PCIe 4.0 x16 slot, and multiple PCIe 3.0 slots.
• Extensive storage options including four Hyper M.2 slots (PCIe Gen4x4) and eight SATA3 ports.
• Multiple USB ports, including USB 3.2 Gen2x2 Type-C and Type-A connections for high-speed peripherals.
• 2.5G LAN for enhanced network performance.
• Immersive audio experience with 7.1 CH HD Audio (Realtek ALC897 Audio Codec) and Nahimic Audio.
• Integrated RGB lighting and headers for customizable illumination.
• 6-layer PCB with 2oz copper for enhanced stability and heat dissipation.

Specifications

• Chipset: Intel Z790
• CPU Socket: LGA 1700
• Memory: 4x DDR5 DIMM Slots, up to 128GB, Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC)
• PCIe Slots: 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x1
• M.2 Slots: 4 x Hyper M.2 (PCIe Gen4x4), 1 x M.2 Key-E (WiFi)
• SATA Ports: 8 x SATA3 6.0 Gb/s
• USB Ports: 1 x USB 3.2 Gen2x2 Type-C (Front), 1 x USB 3.2 Gen2 Type-C (Rear), 1 x USB 3.2 Gen2 Type-A (Rear), 6 x USB 3.2 Gen1 (2 Rear, 4 Front), 8 x USB 2.0 (4 Rear, 4 Front)
• LAN: Realtek 2.5G LAN
• Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
• Video Outputs: 1 x HDMI, 1 x DisplayPort, 1 x eDP
• Form Factor: ATX
• BIOS: 128Mb AMI UEFI
