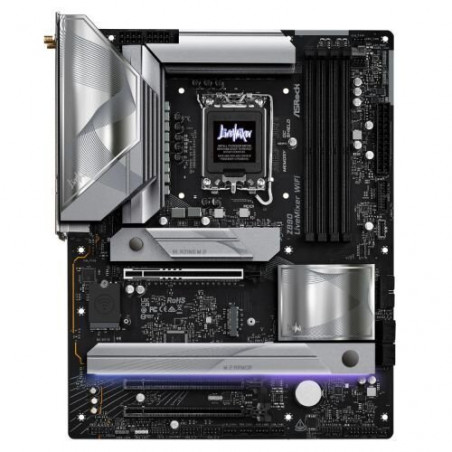

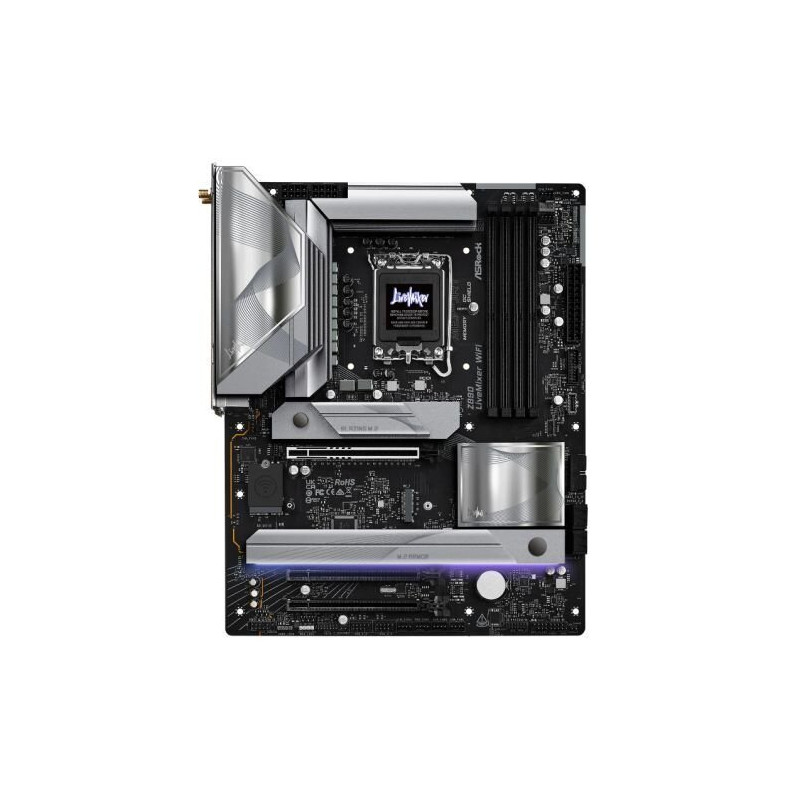

ASROCK Z890 LIVEMIXER WIFI ATX Motherboard with Wi-Fi 7, 2.5G LAN, DDR5

ASRock Z890 LIVEMIXER WIFI Motherboard

The ASRock Z890 LIVEMIXER WIFI motherboard is engineered for demanding users who require top-tier performance and extensive connectivity. Whether you're a content creator needing seamless streaming capabilities, a gamer pushing for maximum frame rates, or a professional demanding rock-solid stability, this motherboard delivers. Its robust feature set, including cutting-edge Wi-Fi 7 and Thunderbolt 4, ensures a future-proof platform for your high-performance build.

Features

• Supports Intel Core Ultra Processors (Series 2) (LGA1851)
• Exceptional power delivery with an 18+1+1+1+1 power phase design and 80A SPS for VCore+GT+SA
• Quad-channel DDR5 memory support, up to 9066+ (OC)
• High-speed storage with one PCIe 5.0 x16, two PCIe 4.0 x16 slots, and multiple M.2 slots (one PCIe Gen5 x4, two PCIe Gen4 x4, and one PCIe Gen4 x4 & SATA3)
• Next-gen connectivity with Wi-Fi 7 802.11be, 2.5G LAN, and dual Thunderbolt 4 Type-C ports
• Extensive I/O: Numerous USB ports (including USB 3.2 Gen2x2 Type-C), HDMI, and high-definition audio with Nahimic Audio enhancement
• Advanced thermal management with multiple heatsinks, PWM/DC fan support, and a thermistor header
• Supports BIOS Flashback and features ASRock's Memory OC Shield for enhanced overclocking stability
• RGB lighting capabilities for customisation

Specifications

• Chipset: Intel Z890
• Socket: LGA1851
• Memory: 4 x DDR5 DIMMs, Dual Channel, up to 9066+ (OC)
• PCIe Slots: 1 PCIe 5.0 x16, 2 PCIe 4.0 x16
• M.2 Slots: 1 Blazing M.2 (PCIe Gen5 x4), 2 Hyper M.2 (PCIe Gen4 x4), 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
• SATA3 Ports: 4
• USB Ports: 1 USB 3.2 Gen2x2 Type-C (Front), 2 USB 3.2 Gen2 Type-A (Rear), 14 USB 3.2 Gen1 (10 Rear, 4 Front), 4 USB 2.0 (Front)
• LAN: Realtek 2.5G LAN
• Wireless: 802.11be Wi-Fi 7 + Bluetooth
• Audio: Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
• Graphics Output: 1 HDMI, 2 Thunderbolt 4 Type-C
• Form Factor: ATX
