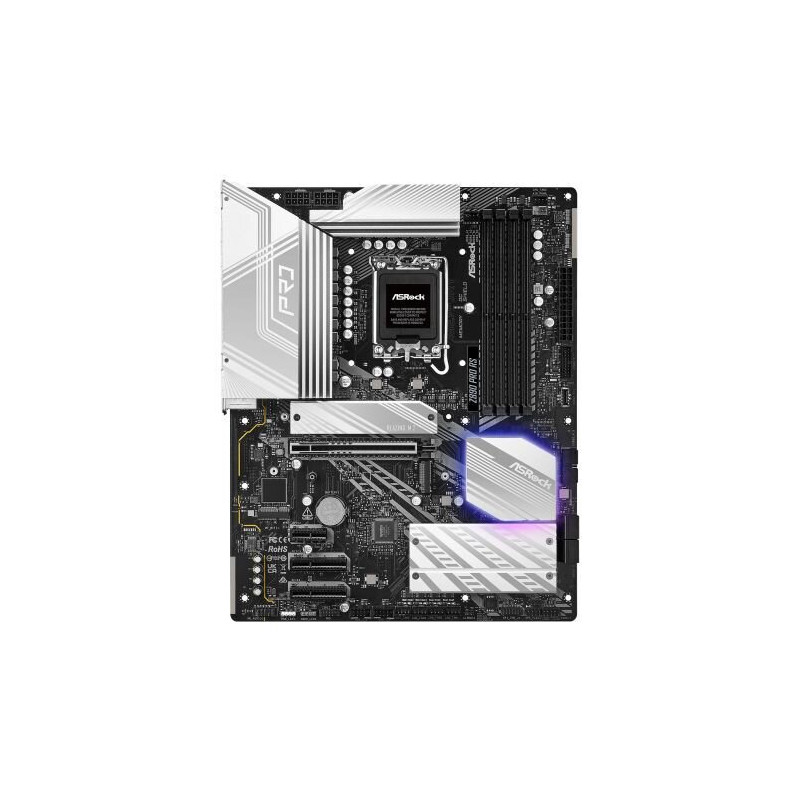

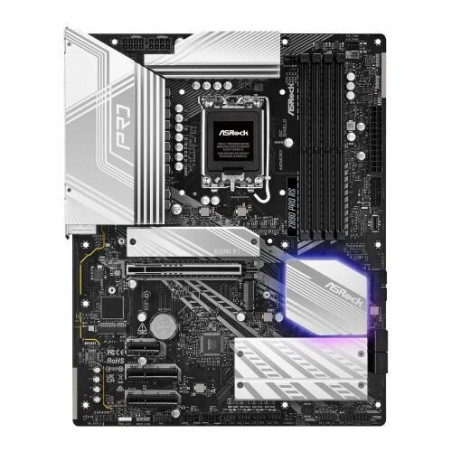

ASROCK Z890 PRO RS Motherboard

ASRock Z890 PRO RS Motherboard

The ASRock Z890 PRO RS motherboard is engineered for discerning PC enthusiasts demanding top-tier performance and cutting-edge features. Whether you're a serious gamer pushing for the highest frame rates, a content creator needing lightning-fast data transfer speeds, or a professional requiring unwavering system stability, this motherboard delivers. Built with premium components and boasting a comprehensive feature set, the Z890 PRO RS provides the foundation for a truly exceptional PC build.

Features

• Supports Intel Core Ultra Processors (Series 2) LGA1851
• Robust 16+1+1+1+1 Power Phase Design with Dr.MOS for superior power delivery and overclocking potential.
• Quad-channel DDR5 memory support with speeds up to 8666+ (OC).
• Blazing-fast PCIe 5.0 x16 slot and multiple PCIe 4.0 slots for high-bandwidth expansion.
• Three Hyper M.2 slots (two PCIe Gen4 x4, one PCIe Gen4 x4 & SATA3) and one Blazing M.2 (PCIe Gen5 x4) for ultrafast storage.
• Dual Thunderbolt 4 Type-C ports for high-speed data transfer and external display connectivity.
• 2.5G LAN for enhanced network performance.
• Comprehensive cooling solutions including M.2 heatsinks and PWM/DC fan support.
• High-quality audio with Realtek ALC897 7.1 CH HD Audio Codec and Nahimic Audio enhancement.
• Supports BIOS Flashback, Memory OC Shield, and Polychrome RGB lighting.

Specifications

• Chipset: Intel Z890
• Socket: LGA 1851
• Memory: 4 x DDR5 DIMMs, Dual Channel, up to 8666+ (OC)
• PCIe Slots: 1 x PCIe 5.0 x16, 2 x PCIe 4.0 x4, 1 x PCIe 4.0 x1, 1 x M.2 Key E for WiFi
• M.2 Slots: 1 x Blazing M.2 (PCIe Gen5 x4), 2 x Hyper M.2 (PCIe Gen4 x4), 1 x Hyper M.2 (PCIe Gen4 x4 & SATA3)
• SATA: 4 x SATA3
• USB: 2 x USB 3.2 Gen2x2 Type-C (1 Rear, 1 Front), 1 x USB 3.2 Gen2 Type-A (Rear), 6 x USB 3.2 Gen1 (2 Rear, 4 Front), 8 x USB 2.0 (4 Rear, 4 Front)
• LAN: Realtek 2.5G LAN
• Audio: Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
• Graphics Output: 1 x HDMI, 1 x DisplayPort
• Form Factor: ATX
