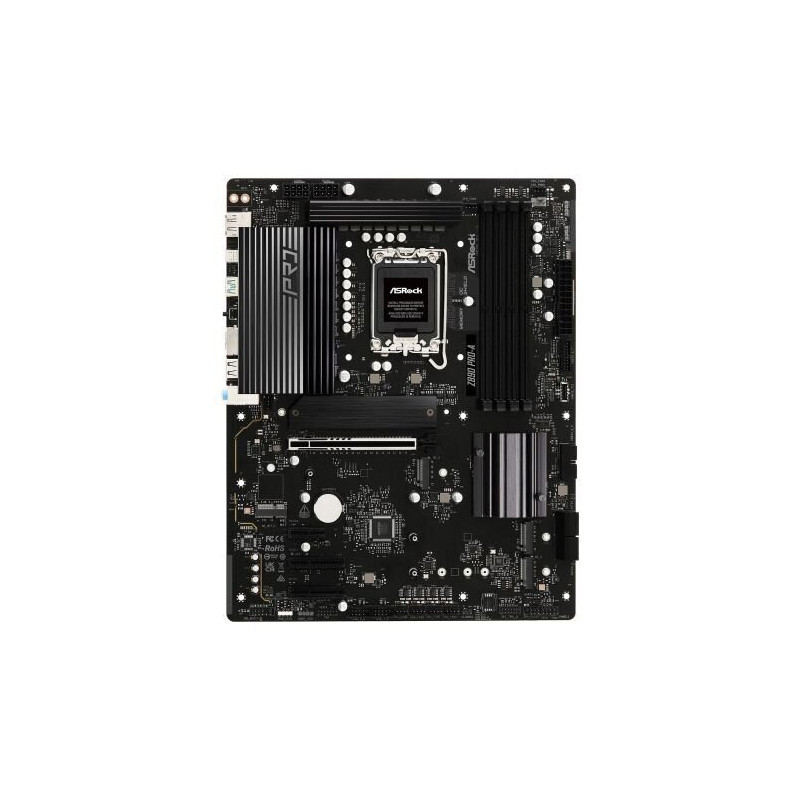

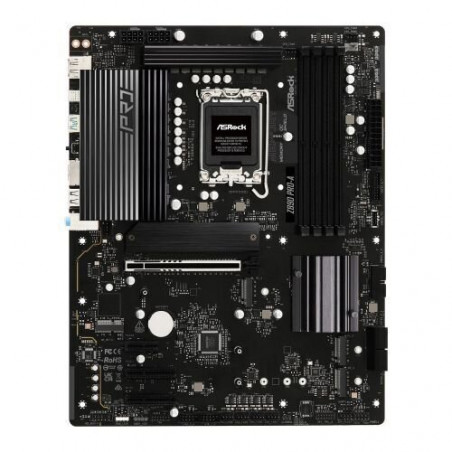

ASROCK Z890 PRO-A ATX Motherboard

ASRock Z890 PRO-A Motherboard

The ASRock Z890 PRO-A motherboard is engineered for demanding users who require peak performance and stability. Whether you're a serious gamer pushing the limits of high-refresh-rate displays, a content creator demanding lightning-fast data transfer speeds, or a professional needing a reliable platform for demanding workloads, the Z890 PRO-A delivers. This ATX motherboard boasts a robust feature set, including cutting-edge connectivity and an optimized VRM design for exceptional overclocking potential.

Features

• Supports Intel Core Ultra Processors (Series 2) (LGA1851)
• High-performance 16+1+1+1+1 Power Phase Design with Dr.MOS for superior power delivery and overclocking.
• Quad-channel DDR5 memory support with speeds up to 8666+ (OC).
• Blazing-fast PCIe 5.0 x16 slot and multiple PCIe 4.0 slots for high-bandwidth expansion.
• Multiple M.2 slots (including PCIe Gen5 x4), offering ample storage options for ultrafast NVMe SSDs.
• Comprehensive connectivity: Thunderbolt 4, 2.5G LAN, HDMI, DisplayPort, and numerous USB ports (including USB 3.2 Gen2x2 Type-C).
• Advanced cooling solutions including aluminum heatsinks and PWM/DC fan support.
• User-friendly features like BIOS Flashback and Memory OC Shield.

Specifications

• Chipset: Intel Z890
• Socket: LGA 1851
• Memory: 4 x DDR5 DIMMs, Dual Channel, up to 8666+ (OC)
• PCIe Slots: 1 PCIe 5.0 x16, 2 PCIe 4.0 x4, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi
• M.2 Slots: 1 Blazing M.2 (PCIe Gen5 x4), 2 Hyper M.2 (PCIe Gen4 x4), 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
• SATA Ports: 4 SATA3
• USB Ports: 1 Thunderbolt™ 4 Type-C (Rear), 2 USB 3.2 Gen2x2 Type-C (1 Rear, 1 Front), 1 USB 3.2 Gen2 Type-A (Rear), 6 USB 3.2 Gen1 (2 Rear, 4 Front), 8 USB 2.0 (4 Rear, 4 Front)
• LAN: Realtek 2.5G LAN
• Audio: Realtek ALC897 7.1 CH HD Audio Codec
• Graphics Output: 1 HDMI, 1 DisplayPort, 1 Thunderbolt™ 4 Type-C
• Form Factor: ATX
• Other Features: BIOS Flashback, Memory OC Shield, Durable Caps with 1000uF Capacitance, 2oz Copper PCB
