ASROCK Z890 RIPTIDE WIFI ATX Motherboard with Wi-Fi 7, 2.5G LAN, DDR5

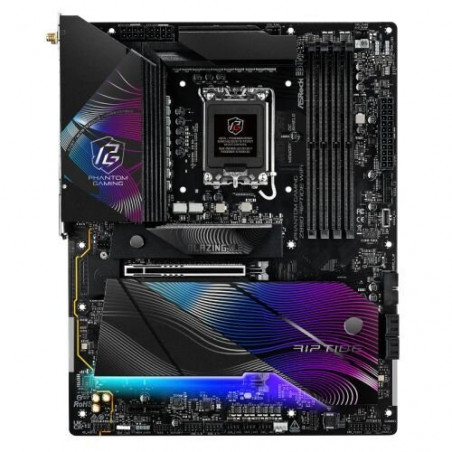

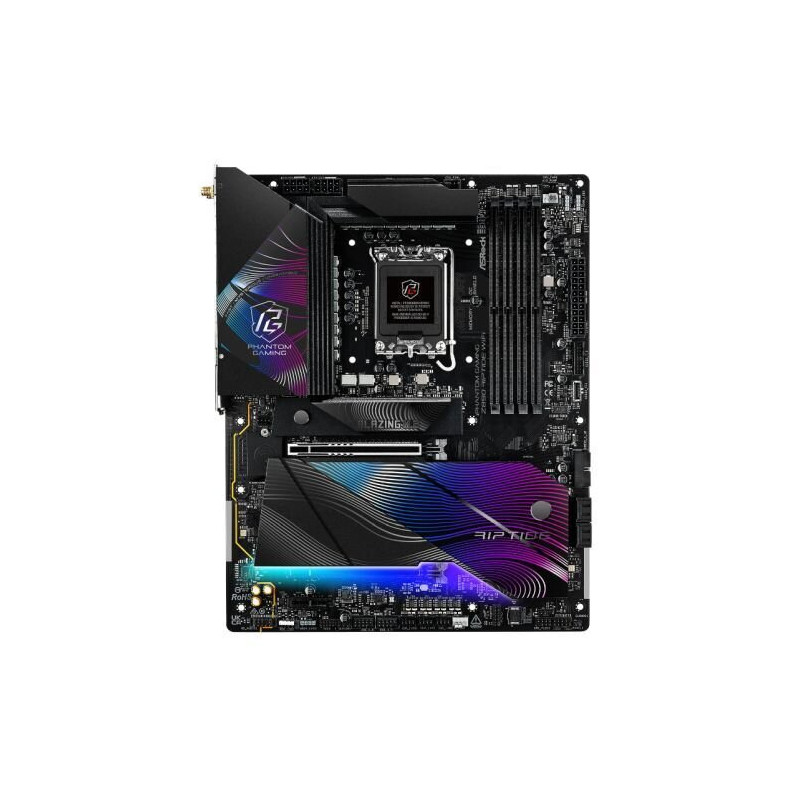

ASRock Z890 RIPTIDE WIFI Motherboard

Unleash the full potential of your next-generation Intel Core Ultra processor (Series 2) with the ASRock Z890 RIPTIDE WIFI motherboard. Designed for discerning PC enthusiasts and demanding gamers, this ATX motherboard delivers exceptional performance, robust connectivity, and cutting-edge features. Experience blazing-fast speeds, seamless multitasking, and unparalleled stability, all within a meticulously engineered design.

Features

• Supports Intel Core Ultra Processors (Series 2) LGA1851
• High-performance 18+1+1+1+1 power phase design with 80A SPS for VCore+GT+SA
• Quad-channel DDR5 memory support, up to 9066+ MHz (OC)
• Next-gen PCIe 5.0 x16 and PCIe 4.0 slots for maximum expansion
• Dual Thunderbolt 4 Type-C ports for incredible speed and versatility
• Killer 2.5G LAN and Intel Wi-Fi 7 for lightning-fast networking
• Multiple M.2 slots (including PCIe Gen5 x4) for ultrafast SSDs
• Advanced thermal design with XXL M.2 heatsink and comprehensive cooling solutions
• Nahimic Audio for immersive sound and enhanced communication
• Polychrome RGB lighting for customizable aesthetics
• Supports BIOS Flashback for easy firmware updates

Specifications

• Chipset: Intel Z890
• Socket Type: LGA 1851
• Form Factor: ATX
• Memory: 4 x DDR5 DIMMs, Dual Channel, up to 9066+ MHz (OC)
• PCIe Slots: 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16, 1 x PCIe 4.0 x1
• Graphics Output: 1 x HDMI
• Thunderbolt 4: 2 x Thunderbolt 4 Type-C (Rear), 1 x USB 3.2 Gen2x2 Type-C (Front)
• USB: 2 x USB 3.2 Gen2 Type-A (Rear), 8 x USB 3.2 Gen1 (4 Rear, 4 Front), 6 x USB 2.0 (2 Rear, 4 Front)
• LAN: Killer 2.5G LAN
• Wi-Fi: Intel 802.11be Wi-Fi 7 + Bluetooth
• Audio: Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
• Storage: 4 x SATA3, 1 x Blazing M.2 (PCIe Gen5 x4), 3 x Hyper M.2 (PCIe Gen4 x4), 1 x Hyper M.2 (PCIe Gen4 x4 & SATA3)
• Other Features: BIOS Flashback, Memory OC Shield, 20K Caps with 1000uF Capacitance, 2oz Copper PCB, Polychrome RGB
