ASROCK Z890 Taichi Lite ATX Motherboard with Wi-Fi 7, 2x USB4, 6x M.2, DDR5

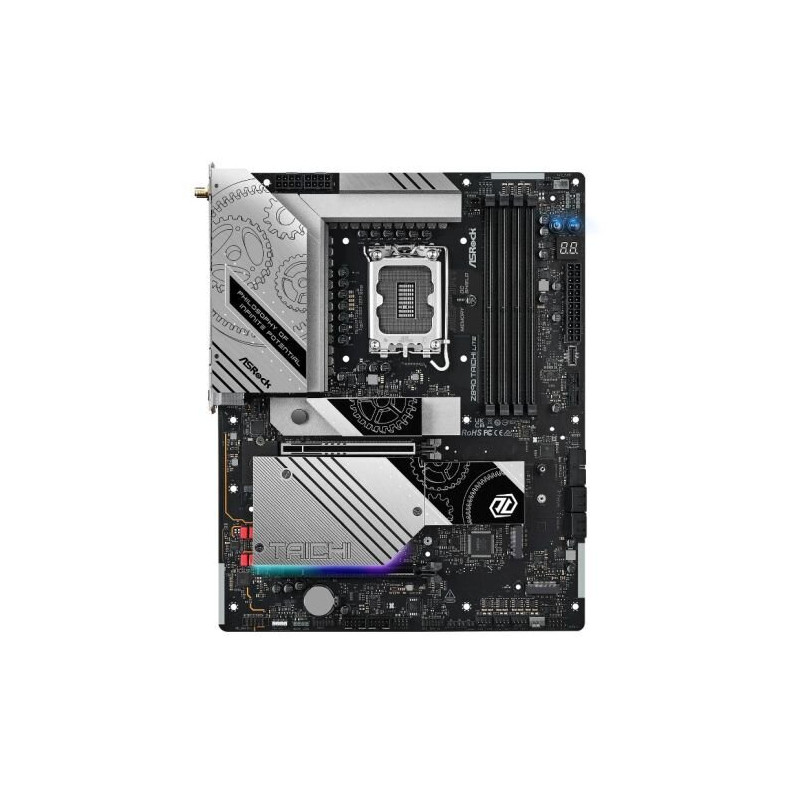

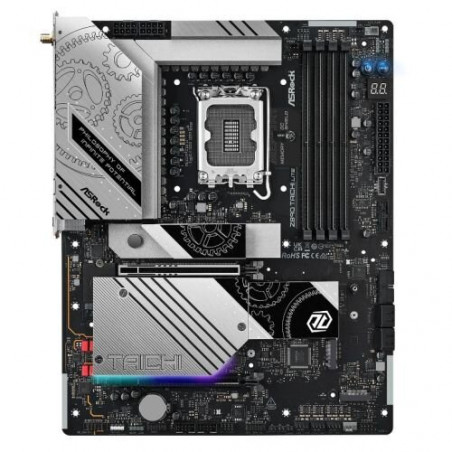

ASROCK Z890 Taichi Lite Motherboard

The ASROCK Z890 Taichi Lite motherboard is engineered for the discerning PC enthusiast seeking uncompromising performance and cutting-edge connectivity. Whether you're a demanding gamer, a content creator pushing creative boundaries, or a professional requiring rock-solid stability, this motherboard delivers the power and features to meet your needs. Its streamlined design packs a wealth of high-end components and future-proof technology into a robust ATX form factor.

Features

• Supports Intel Core Ultra Processors (Series 2) on LGA1851 socket
• Robust 20+1+2+1+1 Power Phase Design with 110A SPS for VCore, ensuring stable power delivery even under extreme overclocking.
• Quad-channel DDR5 memory support with speeds up to 9200+ MHz (OC), enabling exceptional memory bandwidth.
• High-speed connectivity with PCIe 5.0 x16 and PCIe 4.0 x16 slots, plus six M.2 slots (one PCIe Gen5 x4, four PCIe Gen4 x4, and one PCIe Gen4 x4 & SATA3).
• Dual Thunderbolt 4 Type-C ports offering blazing-fast data transfer speeds up to 40Gbps.
• Next-generation Wi-Fi 7 (802.11be) and Bluetooth for seamless wireless connectivity.
• Premium audio solution featuring Realtek ALC4082 5.1 CH HD Audio Codec, ESS SABRE9219 DAC, WIMA audio capacitors, and Nahimic Audio for immersive sound.
• Extensive I/O including multiple USB 3.2 Gen2 and Gen1 ports, 5Gbps and 2.5G LAN, and HDMI output.
• Advanced thermal design with XXL aluminum heatsinks and smart fan control for optimal cooling.
• User-friendly features like BIOS Flashback and a toolless M.2 heatsink design.

Specifications

• Chipset: Intel Z890
• CPU Socket: LGA1851
• Memory: 4x DDR5 DIMM Slots, Dual Channel, up to 9200+ MHz (OC)
• PCIe Slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16
• M.2 Slots: 1x PCIe Gen5 x4, 4x PCIe Gen4 x4, 1x PCIe Gen4 x4 & SATA3
• SATA Ports: 4x SATA3 6.0 Gb/s
• USB Ports: 2x Thunderbolt 4 Type-C (Rear), 1x USB 3.2 Gen2x2 Type-C (Front), 4x USB 3.2 Gen2 Type-A (Rear), 8x USB 3.2 Gen1 (4 Rear, 4 Front), 6x USB 2.0 (2 Rear, 4 Front)
• LAN: 5Gbps LAN, 2.5G LAN
• Wireless: 802.11be Wi-Fi 7 + Bluetooth
• Audio: Realtek ALC4082 5.1 CH HD Audio Codec, ESS SABRE9219 DAC, WIMA Audio Cap, Nahimic Audio
• Form Factor: ATX
• Other Features: Memory OC Shield, BIOS Flashback, 20K Caps with 1000uF Capacitance, Polychrome RGB
