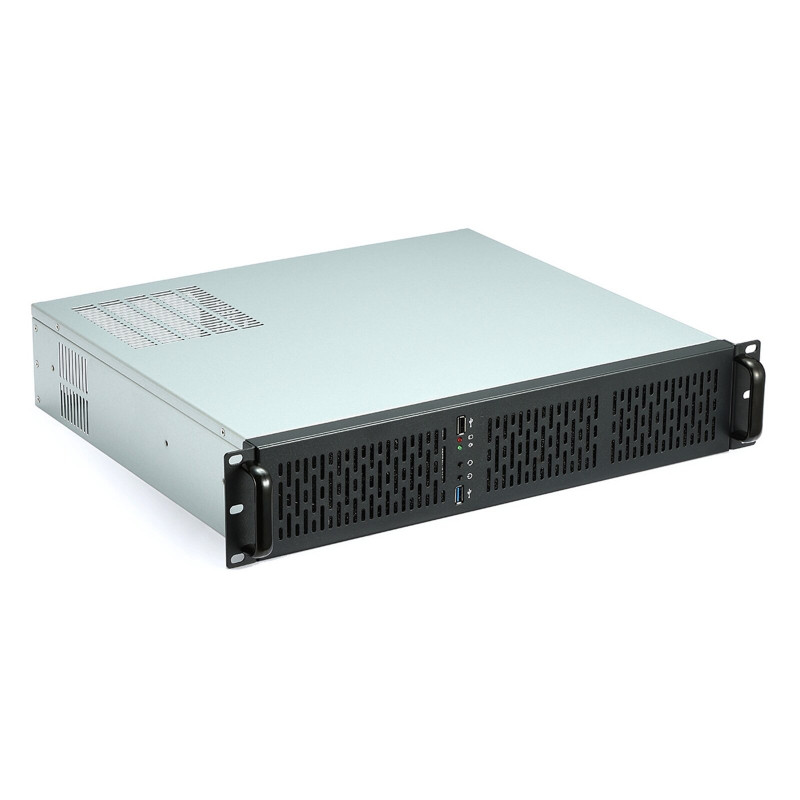

CODEGEN 2U400 405mm Deep Rackmount Server Chassis

CODEGEN 2U400 Rackmount Server Chassis

The CODEGEN 2U400 is a robust and versatile 2U rackmount server chassis, ideal for system integrators, IT professionals, and enthusiasts building compact, high-performance servers or network appliances. This chassis offers exceptional storage capacity, efficient cooling, and thoughtful design features for seamless integration into any rack environment. Its compact form factor doesn't compromise on expandability, making it perfect for space-constrained deployments.

Features

• Compact 2U rackmount design (405mm deep including handles) for space-saving deployments.
• Supports Micro-ATX and Mini-ITX motherboards for flexibility in component selection.
• Includes three quiet 80mm PWM fans with automatic motherboard speed control for optimal cooling and noise reduction.
• Versatile storage options: up to four 3.5" HDDs, or a combination of 3.5" and 2.5" drives (up to three 2.5" SSDs and one 3.5" HDD).
• Strategic ventilation on the top panel (near the PSU) for enhanced airflow and component cooling.
• Clear power and HDD activity LEDs for quick system status monitoring.
• Supports standard ATX PSUs (up to 200mm in length).
• Four half-height expansion slots for added functionality.
• Includes one USB 3.0 and one USB 2.0 port for external connectivity.

Specifications

• Form Factor: 2U Rackmount
• Dimensions (Excl. Handles): (W) 430 x (H) 89 x (D) 380mm
• Dimensions (Incl. Handles): (W) 482 x (H) 89 x (D) 405mm
• Motherboard Support: Micro-ATX, Mini-ITX
• PSU Support: Standard ATX (Max. Length: 200mm)
• PSU Location: Rear Right
• Internal Drive Bays: 4 x 3.5", 3 x 2.5" (shared bays)
• Expansion Slots: 4 x Half-Height
• Cooling Fans: 3 x 80mm HDB PWM (included)
• Maximum GPU Length: 180mm
• Maximum CPU Cooler Height: 67mm
• Internal Cable Management Depth: 85mm
• Front Panel I/O: 1 x USB 3.0, 1 x USB 2.0
• Chassis Material: 1.0mm SGCC
• Front Bezel Material: Metal
• Side Panel Material: Metal
• LED Indicators: Power (Green), HDD Activity (Red)
• MPN: 2U400
• EAN: 5055492415103
